Запчасти Case IH 2230 (39.110.02) - TOW BEHIND AIR CART REAR HITCH HYDRAULIC HOSES (39) - FRAMES AND BALLASTING

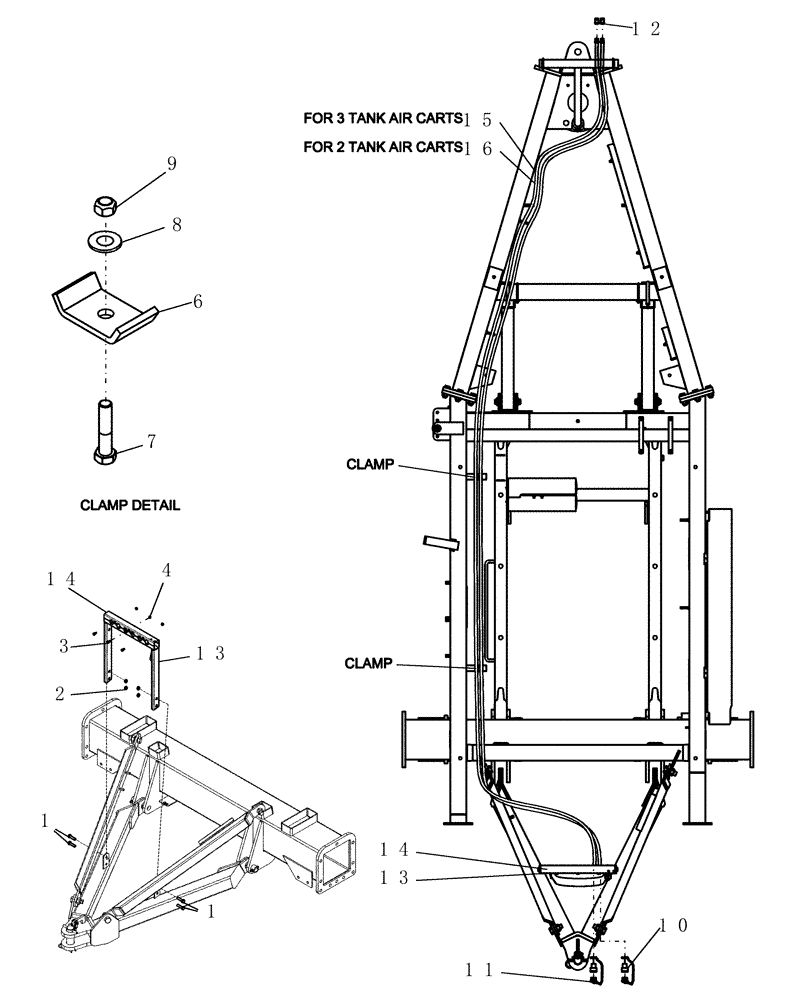

Схема запчастей Case IH 2230 - (39.110.02) - TOW BEHIND AIR CART REAR HITCH HYDRAULIC HOSES (39) - FRAMES AND BALLASTING
15
13
10
14
6
1
14
1
9
16
8
13
3
7
2
11
4
12

Артикул

Название

Примечание

Количество

1

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

2

86992215

LOCK NUT,1/2"-13, GC

4шт.

3

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

4

280736

NUT,5/16"-18, GC

3шт.

6

CC-105

HOSE CLAMP

for 2 hoses

3шт.

7

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

9

88902

NUT,3/8"-16

2шт.

10

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

2шт.

11

86592083

DUST CAP

pioneer coupler - 1/2"

2шт.

12

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

2шт.

13

GI-358

BRACKET

mount, hyd hose

1шт.

14

GI-359

HOLDER

hyd coupler - top

1шт.

15

87568449

HYDRAULIC HOSE,9.65 mm ID x 444.00 mm, SAE 100R17

1шт.

16

87568447

HYDRAULIC HOSE,9.65 mm ID x 384.00 mm, SAE 100R17

1шт.

Выбрано товаров: 15
