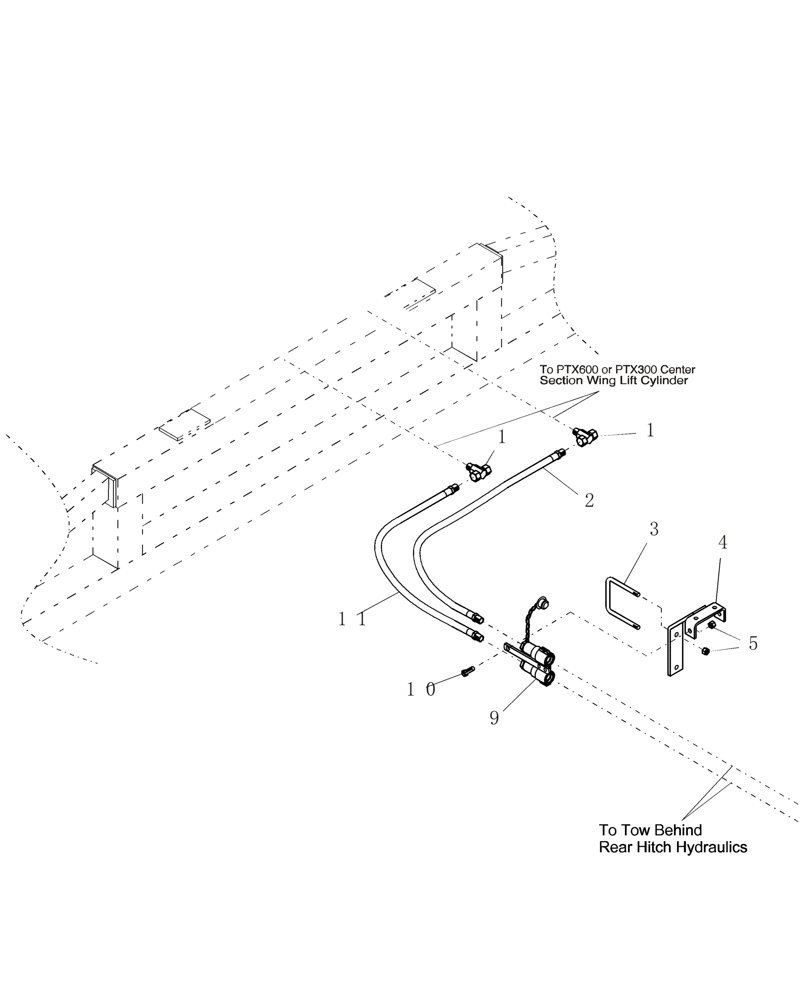

Запчасти Case IH 2230 (39.100.18) - TOW BEHIND REAR HITCH OPTION (39) - FRAMES AND BALLASTING

1

1242

TEE

fitting, hydraulic - swivel

1шт.

2

22612

HYDRAULIC HOSE,0.38" ID x 86.50", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 86 1/2" fl, 1/2" mpt x 1/2" mpt

1шт.

Used with PTX600

1шт.

2

448425A1

HYDRAULIC HOSE

3/8" x 151" fl, 1/2" mpt x 1/2" mpt

1шт.

Used with PTX300

1шт.

3

5089

U-BOLT

us 7/16"-14 4 1/8" w 5 3/8" d GR2

1шт.

4

GE-186

SUPPORT

hydraulic couplers & wiring harness bracket

1шт.

5

280980

NUT,7/16"-14, GC

3шт.

9

1990

KIT

pioneer coupler fitting 1/2"

1шт.

Includes part clamp, two bodies and two dust plugs

1шт.

10

9706729

BOLT,Hex, 7/16" - 14 x 1", Gr 5, Full Thd

1шт.

11

4136

HYDRAULIC HOSE

3/8" x 60" fl, 1/2" mpt x 1/2" mpt

1шт.

Used with PTX600

1шт.

11

22625

HYDRAULIC HOSE,0.38" ID x 110.00", SAE J517, SAE J516, SAE J846, SAE J1273

3/8" x 110" fl, 1/2" mpt x 1/2" mpt

1шт.

Used with PTX300

1шт.
