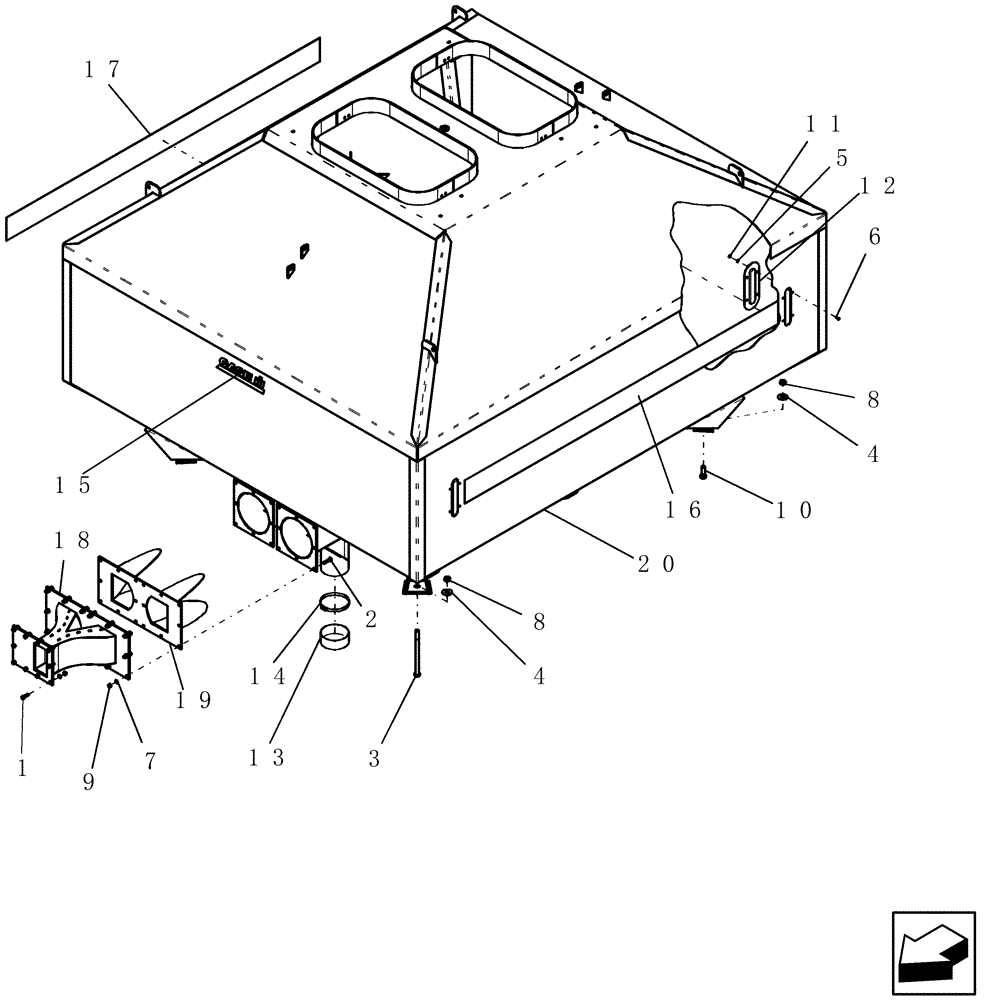

Запчасти Case IH 2230 (39.100.14) - TANK ASSEMBLY (39) - FRAMES AND BALLASTING

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

10шт.

2

88044

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

16шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

4

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

5

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

1шт.

6

412750A1

SCREW,Sl, #8 - 32 x 3/4"

mch #8-32 x 3/4" ph sq-slt

1шт.

7

80680

LOCK WASHER,3/8 0.381 CST ZND

26шт.

8

85700693

NUT,5/8" - 11, Gr C

2шт.

9

9628503

NUT,3/8"-16, G5

26шт.

10

86505999

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

11

231-14408

NUT,#8-32, GB

1шт.

13

412755A1

CAP

vinyl 5" x 2 1/2"

2шт.

14

87019670

HOSE CLAMP,#80, 4.62/5.50 Type F Worm

2шт.

15

87653276

DECAL

Case IH (350 mm x 83 mm)

1шт.

16

87643138

DECAL

Precision Air 2230 LH

1шт.

17

87643139

DECAL

Precision Air 2230 RH

1шт.

18

GI-345

CHAMBER

inlet plenum, single fan

1шт.

19

GI-346

INSERT

transition, single fan

1шт.

20

GI-417FR

TANK

230 bushel

1шт.

20

GI-416FR

TANK

180 bushel

1шт.

100

51200080

WARNING DECAL

No Step

1шт.

Not Shown

1шт.
