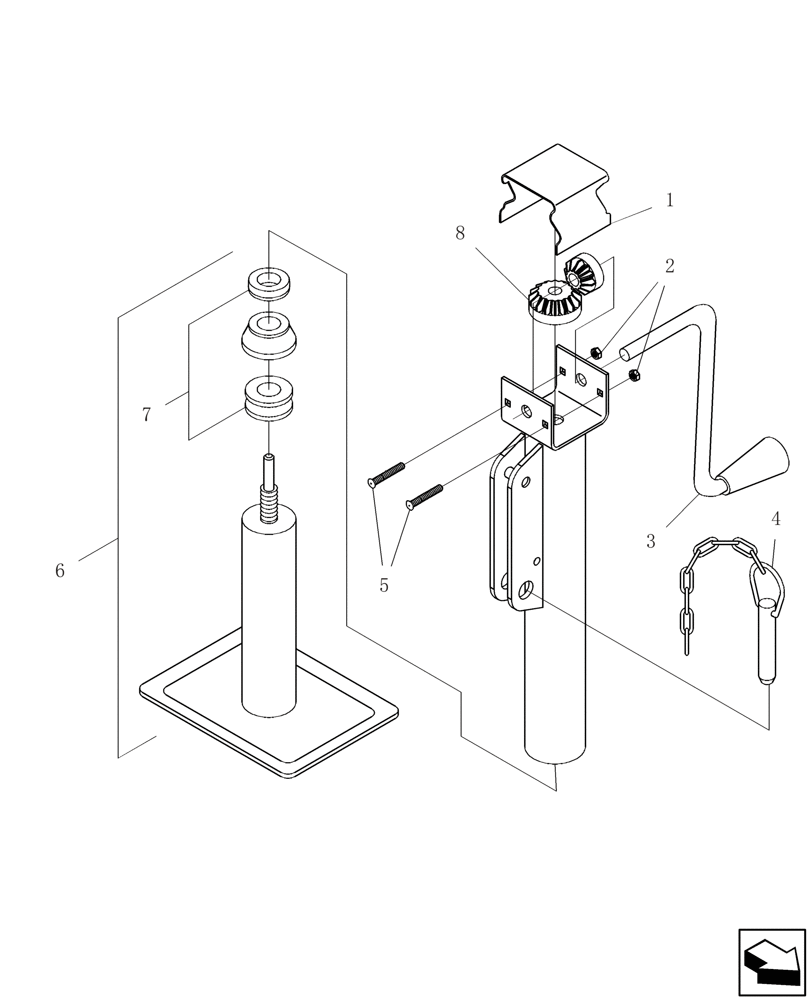

Запчасти Case IH 2230 (39.100.13) - JACK ASSEMBLY (39) - FRAMES AND BALLASTING

0

51200049

JACK

7000 lb x 15"

1шт.

1

6621

COVER

jack gear box

1шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

3

2727

JACK

crank

1шт.

4

22453

LOCK PIN

assembly, 7/8" dia

1шт.

5

280961

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 3", Gr 5

2шт.

6

6619

JACK

inner assembly

1шт.

7

6618

THRUST BEARING

jack thrust bearing

1шт.

8

425261A1

GEAR SET

jack (sold in pairs) crown #500-106

1шт.
