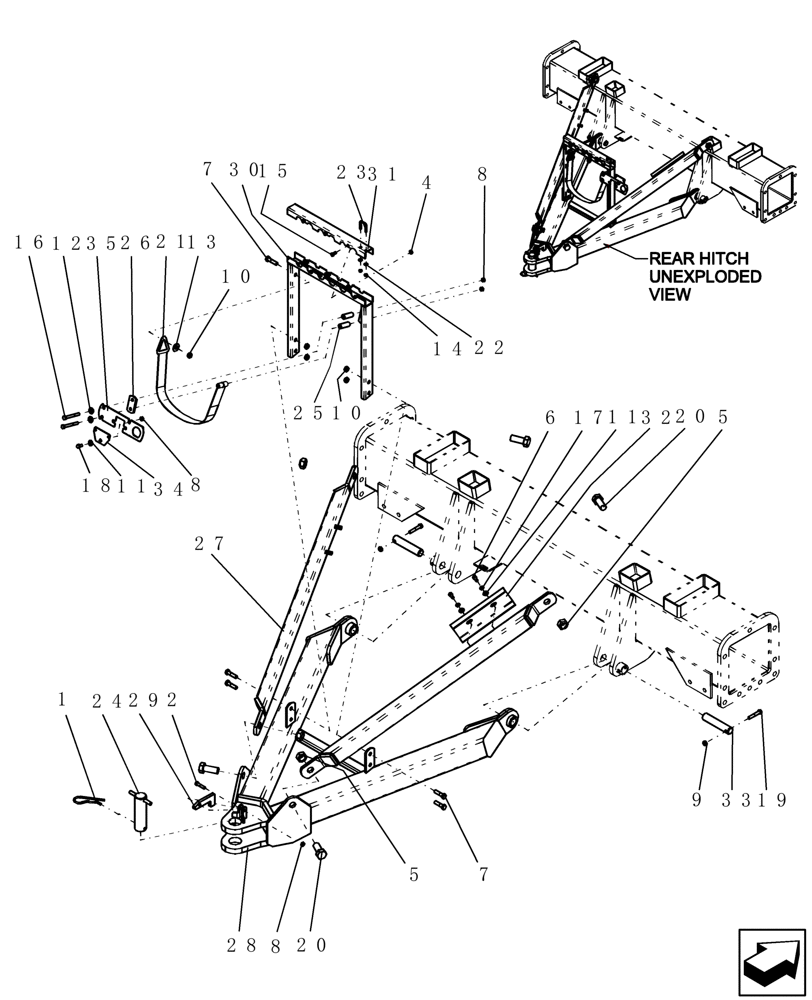

Запчасти Case IH 2230 (39.100.12) - CART REAR HITCH (39) - FRAMES AND BALLASTING

1

419985A1

HAIR PIN COTTER

1/4" x 5"

1шт.

2

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

1шт.

4

280736

NUT,5/16"-18, GC

3шт.

5

280286

NUT,1"-8, GB

4шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

5шт.

8

88902

NUT,3/8"-16

3шт.

9

280980

NUT,7/16"-14, GC

2шт.

10

86992215

LOCK NUT,1/2"-13, GC

5шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

2шт.

12

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

13

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

1шт.

14

280129

NUT,1/4"-20

2шт.

15

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

3шт.

16

88959

BOLT,Hex, 3/8" - 16 x 3 1/2", Gr 5

2шт.

17

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

18

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.

19

88604

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

2шт.

20

16505

BOLT,Hex, 1" - 8 x 2 1/2", Gr 5, Full Thd

4шт.

21

412762A1

STRAP

2" x 44 1/2"

1шт.

22

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

2шт.

23

8597

U-BOLT

us 1/4"-20 1 1/16" w 1 1/2" d GR2

1шт.

24

GD-919

PIN

draw, rear hitch

1шт.

25

GH-119

SPACER

hose strap

2шт.

26

GH-136

PLATE

bolt

1шт.

27

GI-293

LIFT ARM

rear hitch

2шт.

28

GI-294

HITCH

cart rear

1шт.

29

GI-299

RETAINER

safety, hitch pin

1шт.

30

GI-358

BRACKET

mount, hyd hose

1шт.

31

GI-359

HOLDER

hyd coupler - top

1шт.

32

GI-413

TRAY

cable, short

1шт.

33

GL-610

HITCH PIN

rear

1шт.

34

GL-783

BRACKET

mount, terminator

1шт.

35

GL-803

HITCH BRACKET

mount, rear

1шт.

100

51200107

HYDRAULIC HOSE,0.50" ID x 384.00", SAE 100R2AT, SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

1/2" x 384" fl, 1/2" mpt x 1/2" mpt

1шт.

Used on SDX and ATX under 45 FT

1шт.

Not Shown

1шт.

100

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

100

412733A1

PLUG

dust, pioneer coupler 1/2"

1шт.

Not Shown

1шт.

100

435414A1

QUICK MALE COUPLING,1/2"-14 NPTF

1шт.

Not Shown

1шт.

100

7214

HYDRAULIC HOSE

3/8" x 340" fl, 1/2" mpt x 1/2" mpt

1шт.

ADX2180 and ADX2230

1шт.

Not Shown

1шт.

100

87506420

HYDRAULIC HOSE

3/8" x 400" fl

1шт.

Not Shown

1шт.

100

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

Not Shown

1шт.

100

51200108

HYDRAULIC HOSE,0.50" ID x 432.00", SAE 100R2AT, SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

1/2" x 432" fl, 1/2" mpt x 1/2" mpt

1шт.

Used on ATX over 45 FT

1шт.

Not Shown

1шт.
