Запчасти Case IH 2230 (39.100.11) - TOW BETWEEN FRONT HITCH (39) - FRAMES AND BALLASTING

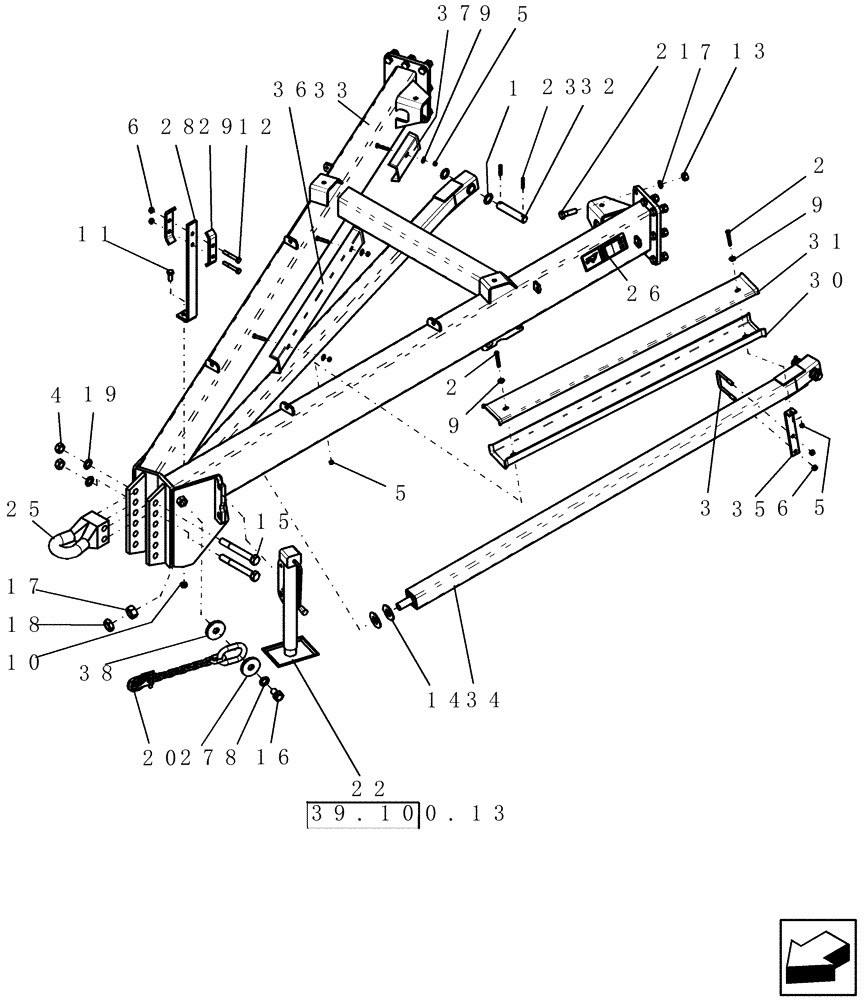

Схема запчастей Case IH 2230 - (39.100.11) - TOW BETWEEN FRONT HITCH (39) - FRAMES AND BALLASTING
5
29
25
35
14
23
5
6
5
37
31
36
4
17
13
9
8
2
6
9
15
32
33
27
34
39.100.13
12
11
1
19
10
30
38
16
7
28
22
3
18
9
2
26
20
21

Артикул

Название

Примечание

Количество

1

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

2

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

2шт.

3

1404

U-BOLT

us 1/4" x 3 1/8" w x 4 1/4" d 1 1/4" thread gr2

1шт.

4

280286

NUT,1"-8, GB

2шт.

5

88902

NUT,3/8"-16

5шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

16шт.

8

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

9

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

10

85700693

NUT,5/8" - 11, Gr C

1шт.

11

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

1шт.

12

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

13

9823966

NUT,3/4"-16, G8

16шт.

14

86512837

WASHER,1.38" ID x 2.5" OD x 0.17" Thk

4шт.

15

86534764

BOLT,Hex, 1" - 8 x 8", Gr 8

2шт.

16

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

1шт.

17

86625082

NUT,1 1/4"-12, G5

2шт.

18

425-1520

JAM NUT,Jam, 1 1/4"-12, G5

2шт.

19

6669

WASHER,1.06" ID x 1.75" OD x 0.13" Thk

2шт.

20

87619912

CHAIN

safety, 40,400 lb

1шт.

If replacing 1032163 with 87619912, also purchase spacer 87619910

1шт.

21

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

16шт.

22

51200049

JACK

7000 lb x 15"

1шт.

Refer to 39.100.13

1шт.

23

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

4шт.

25

87506220

HITCH

hitch

1шт.

25

84471082

HITCH

CAT 4,5, Not Shown, Serial Range: -25

1шт.

26

GD-500.77

CAUTION DECAL

hydraulics

1шт.

27

GD-622

WASHER

safety chain

1шт.

28

GD-906

HOLDER

hydraulic hose

1шт.

29

GD-907

CLAMP

hydraulic hose

2шт.

30

GE-258

SHIELD

front bottom hyd. hose

1шт.

31

GE-259

SHIELD

front top hydraulic hose

1шт.

32

GH-125

HITCH PIN,31.75mm OD x 163.51mm L

2шт.

33

GI-301

CARRIER

frame, front - tow between

1шт.

Includes GD-500.77

1шт.

34

GI-302

ARM

tension, tow between, Years: -31-MAY-05

2шт.

34

87504197

ARM

tension tow between, Start Year: 01-JUN-05

2шт.

35

GI-303

PLATE

mount, hose shield

1шт.

36

GI-304

SHIELD

cable - front

1шт.

37

GI-307

SHIELD

cable - rear

1шт.

38

87619910

SPACER

safety chain, Start Serial: CBJ0004706

1шт.

Выбрано товаров: 42
