Запчасти Case IH 2230 (39.100.10) - TOW BEHIND FRONT HITCH (39) - FRAMES AND BALLASTING

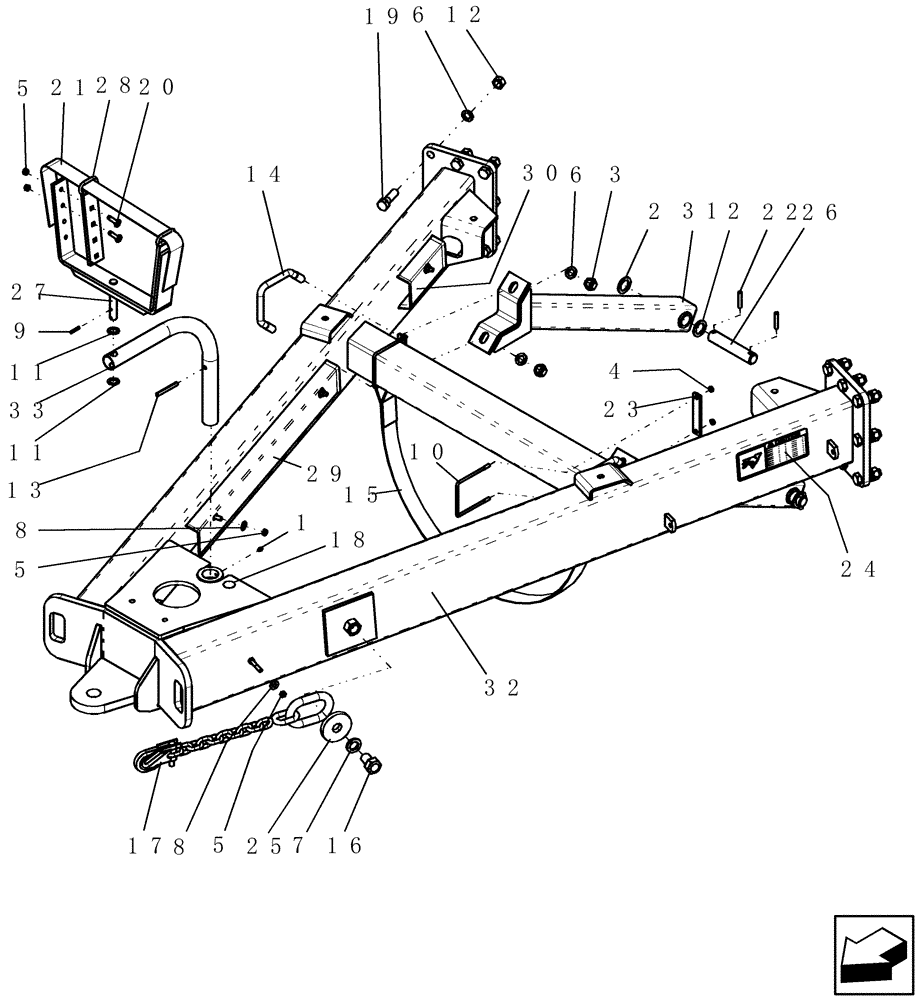

Схема запчастей Case IH 2230 - (39.100.10) - TOW BEHIND FRONT HITCH (39) - FRAMES AND BALLASTING
26
25
3
7
29
1
24
5
8
27
20
10
9
33
21
18
8
30
28
6
2
14
17
11
5
23
15
31
13
32
4
12
19
6
2
5
16
22
11

Артикул

Название

Примечание

Количество

1

87414

LUBE NIPPLE,1/4" - 28

2шт.

2

86632583

WASHER,1.28" ID x 2" OD x 0.12" Thk

4шт.

3

280954

NUT,3/4"-10, G5

4шт.

4

281010

LOCK NUT,7/8"-14, GC

4шт.

5

88902

NUT,3/8"-16

8шт.

6

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

20шт.

7

87342

LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk

1шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

9

300868

ROLL PIN,6mm OD x 36mm L, Slotted

1шт.

10

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

2шт.

11

3443

WASHER,0.75" ID x 1.25" OD x 0.07" Thk

3/4" id 14ga

2шт.

12

9823966

NUT,3/4"-16, G8

16шт.

13

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

1шт.

14

5181

BOLT,V, 3/4" - 10 x 4", Gr 8

v 3/4"-10 x 4" GR8

2шт.

15

5781

STRAP

2" x 40"

1шт.

16

413-1624

BOLT,Hex, 1" - 8 x 1-1/2", Gr 5

1шт.

17

PCC8607191

CHAIN

30,400 lb safety

1шт.

18

6630

DECAL

grease 100 hours

1шт.

19

25863R1

BOLT,Hex, 3/4" - 16 x 2 1/2", Gr 8

16шт.

20

280552

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2", Gr 5

4шт.

21

9283

STRAP

2" x 78"

1шт.

22

86624061

LOCK PIN,9.53mm OD x 50.8mm L, Slotted

4шт.

23

CC-119

PLATE

bolt

2шт.

24

GD-500.77

CAUTION DECAL

hydraulics

1шт.

25

GD-622

WASHER

safety chain

1шт.

26

GH-125

HITCH PIN,31.75mm OD x 163.51mm L

2шт.

27

GH-951

STRAP

hose support

1шт.

28

GH-952

STRAP

hose support extension

2шт.

29

GI-304

SHIELD

cable - front

1шт.

30

GI-307

SHIELD

cable - rear

1шт.

31

GI-553

ARM

tension, tow behind

2шт.

32

GI-555

HITCH

front, tow behind

1шт.

Includes decals

1шт.

33

GL-157

SUPPORT

swivel hose

1шт.

Выбрано товаров: 34
