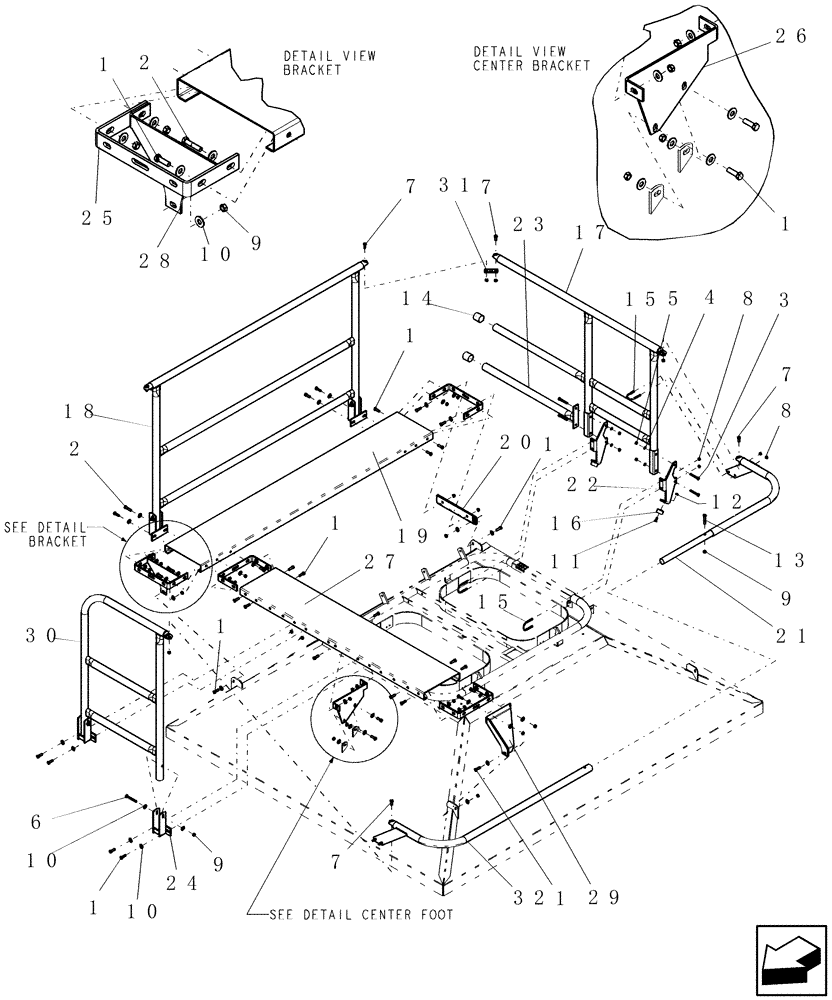

Запчасти Case IH 2230 (39.100.08) - TANK PLATFORM - 3 POINT HITCH (39) - FRAMES AND BALLASTING

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

31шт.

2

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

3

88346

BOLT,Hex, 5/16" - 18 x 2 1/2", Gr 5

4шт.

4

80681

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

7

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

5шт.

8

281010

LOCK NUT,7/8"-14, GC

8шт.

9

88902

NUT,3/8"-16

43шт.

10

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

54шт.

11

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

2шт.

12

280129

NUT,1/4"-20

2шт.

13

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

1шт.

14

3419

CAP

vinyl 1 5/8" x 1 1/2"

2шт.

15

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

4шт.

16

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

2шт.

17

GI-698

RAIL ASSY.

rear

1шт.

18

GI-699

HANDRAIL

side, top platform

1шт.

19

GI-700

PLATFORM

side grating, top

1шт.

20

GI-701

SUPPORT

top platform

1шт.

21

GI-702

GUARD

rail, auger - with 3pt

1шт.

22

GI-703

STAND

rear rail

2шт.

23

GI-704

HANDRAIL

8100 access

1шт.

24

GI-801

BRACKET

mount, railing

4шт.

25

GI-804

CAP

end, narrow grating

4шт.

26

GI-808

FOOT

narrow grating - center

1шт.

27

GI-812

GRATING

front platform

1шт.

28

GI-813

FOOT

front narrow grating - side

1шт.

29

GI-818

BRACKET

end, step grating

1шт.

30

GI-821

RAIL ASSY.

front

1шт.

31

GI-827

PLATE

connector, rail corner

1шт.

32

GI-833

GUARD

railing, auger - front

1шт.
