Запчасти Case IH 2230 (39.100.01) - REAR FRAME (39) - FRAMES AND BALLASTING

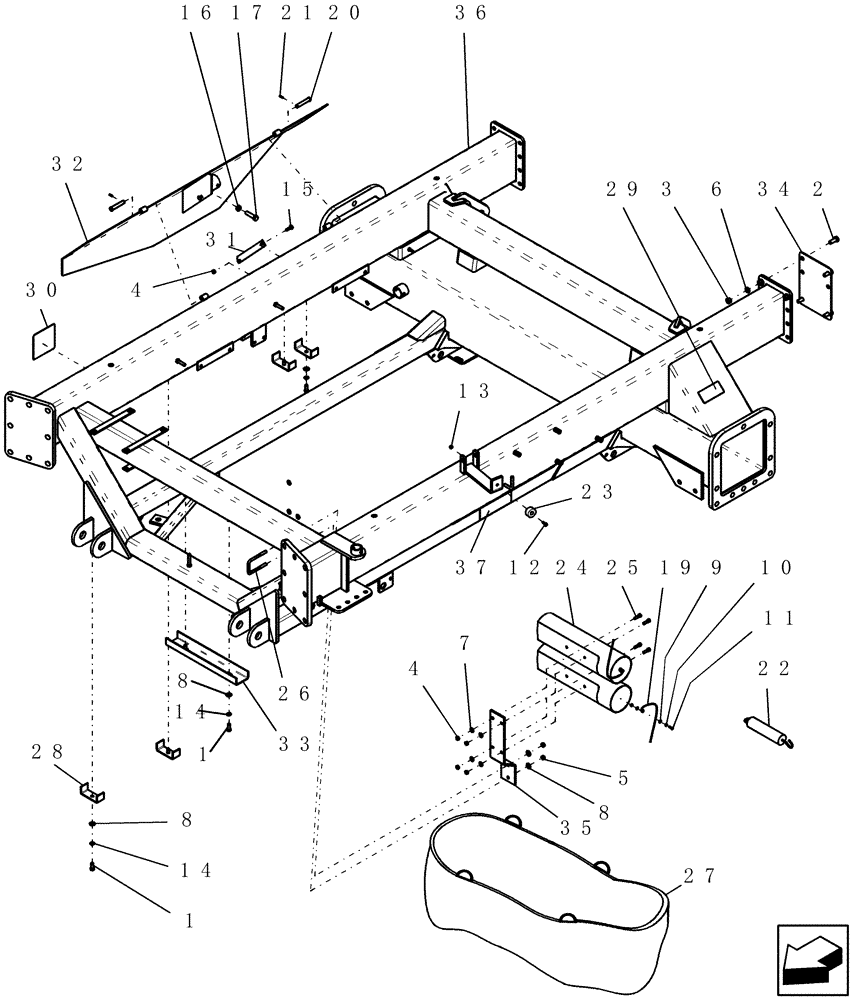

Схема запчастей Case IH 2230 - (39.100.01) - REAR FRAME (39) - FRAMES AND BALLASTING
9
10
5
36
6
22
29
2
30
27
28
7
8
25
13
35
14
34
31
4
21
14
3
15
33
8
11
12
23
16
4
1
37
1
32
8
24
17
26
19
20

Артикул

Название

Примечание

Количество

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

8шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

4шт.

3

280431

NUT,1/2"-13, G5

4шт.

4

281010

LOCK NUT,7/8"-14, GC

5шт.

5

88902

NUT,3/8"-16

2шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

7

95-21031

WASHER,1/4"

8шт.

8

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

10шт.

9

280299

WASHER,0.19" ID x 0.44" OD x 0.05" Thk

4шт.

10

87653

NUT,#8-32

4шт.

11

412750A1

SCREW,Sl, #8 - 32 x 3/4"

mch #8-32 x 3/4" ph sq-slt

2шт.

12

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

3шт.

13

280129

NUT,1/4"-20

1шт.

14

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

15

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

1шт.

16

86632558

JAM NUT,Jam, 1/2"-13, G5

1шт.

17

419986A1

BOLT,Hex, 1/2" - 13 x 2", Gr 2, Full Thd

1шт.

17

8675

PAD

protective, adhesive back, 1 5/8" Diameter x 1/16" thick, UHMW

1шт.

19

GD-388

CHAIN

safety, inlet shield - 9"

6шт.

27" required

1шт.

20

6855

CLEVIS PIN

1/2" x 2 3/4" fl

2шт.

21

38-11010

LOCK PIN,5/32" x 5/8", Slotted

2шт.

22

412785A1

SCALE

hanging weight

1шт.

23

51200147

FOOT

rubber, 1 1/2" od x 1/4" id x 3/4"

1шт.

24

425043A1

TUBE

storage & cap, 17 3/16"

2шт.

25

21319

BOLT

5/16"-18 x 1" ss hx-skt

4шт.

26

22119

U-BOLT

us 3/8" 2 1/8" w 3 3/4" d GR5

1шт.

27

425090A1

PLASTIC-BAG

collector with clasp

2шт.

28

86989308

BRACKET

cable clamp

4шт.

29

GD-300.16

DECAL

attention wheel

2шт.

30

GD-500.78

WARNING DECAL

Rotating Parts

1шт.

31

GH-142

SUPPORT

shield

1шт.

32

GI-295

SHIELD

drive, frame

1шт.

33

GI-369

TRAY

hose, front frame

1шт.

34

GI-384

COVER

plate end, frame

1шт.

35

GI-549

BRACKET

mount, tube storage

1шт.

36

87446312

FRAME

rear

1шт.

Includes two GD-300.16, GD-500.78 and GL-700.21

1шт.

37

GL-700.21

CAUTION DECAL

keep hands

1шт.

Выбрано товаров: 39
