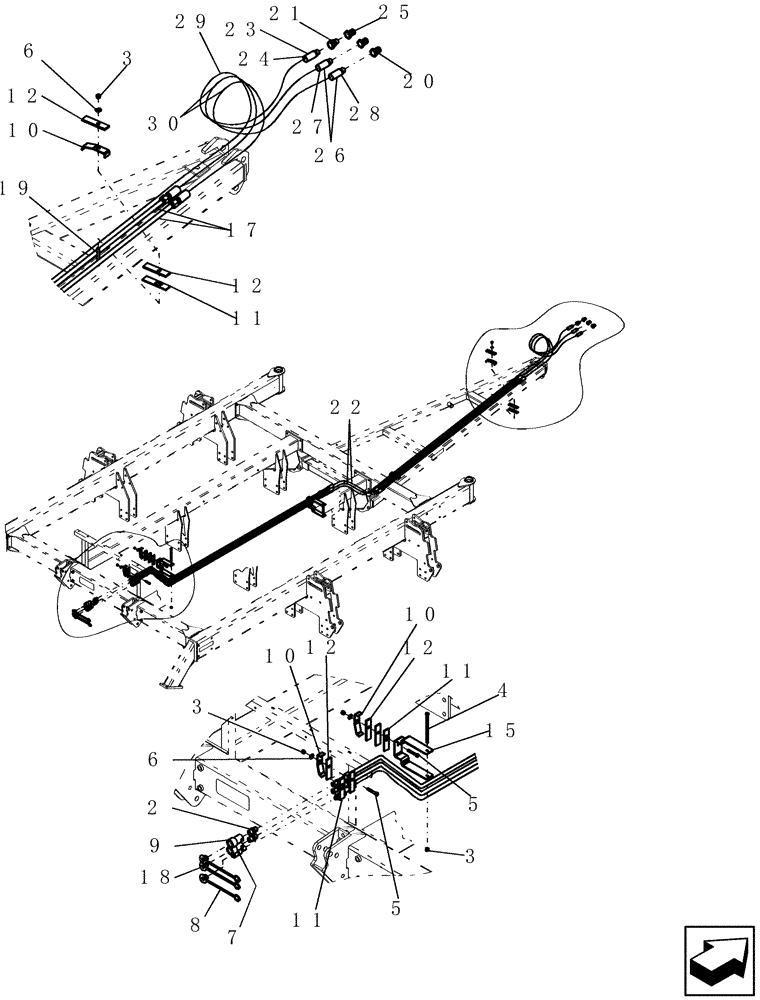

Запчасти Case IH 2230 (35.525.05) - TBH HYD LINES ACROSS SDX40 (35) - HYDRAULIC SYSTEMS

2

86977779

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT

2шт.

3

232-1446

NUT,3/8"-16, GC

7шт.

4

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

5

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

3шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

7

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

8

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

9

6935

COUPLING, QUICK, FEM

3/4"

2шт.

10

1026712

CLAMP

5"

5шт.

11

1026713

CLAMP

backing

5шт.

12

1026714

ISOLATOR

neoprene 1/4" tk pln

10шт.

15

312995A1

MOUNTING PARTS

hyd clamp

2шт.

17

425679A2

HYD TUBE

3/4" x 132"

2шт.

18

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

19

1026677

STUD

3/8" x 3 1/4" nc gr d zp

2шт.

20

9412

QUICK MALE COUPLING

1/2"

2шт.

21

218-5254

HYD CONNECTOR,3/4" - 16 ORB x 1/2" - 14 NPT

1шт.

22

350404A1

HOSE

3/4" x 48"

2шт.

23

GL-700.42

DECAL

drain

1шт.

24

87501182

COVER

hose label, 1 1/2"

1шт.

25

85999239

QUICK MALE COUPLING,3/8" x 3/4" - 16 ORB

stl 3/8"

1шт.

26

GL-374

COVER

hydraulic hose label - 2"

2шт.

27

GL-700.33

DECAL

fan return

2шт.

28

GL-700.32

DECAL

fan pressure

2шт.

29

87502333

HYDRAULIC HOSE,19mm ID x 9830mm L

250 PSI

1шт.

30

51200106

HYDRAULIC HOSE,0.75" ID x 96.00", SAE J517, SAE J516, SAE 100R17, ASTM B633 Class 2 Type 2

3/4" x 96" fl

2шт.
