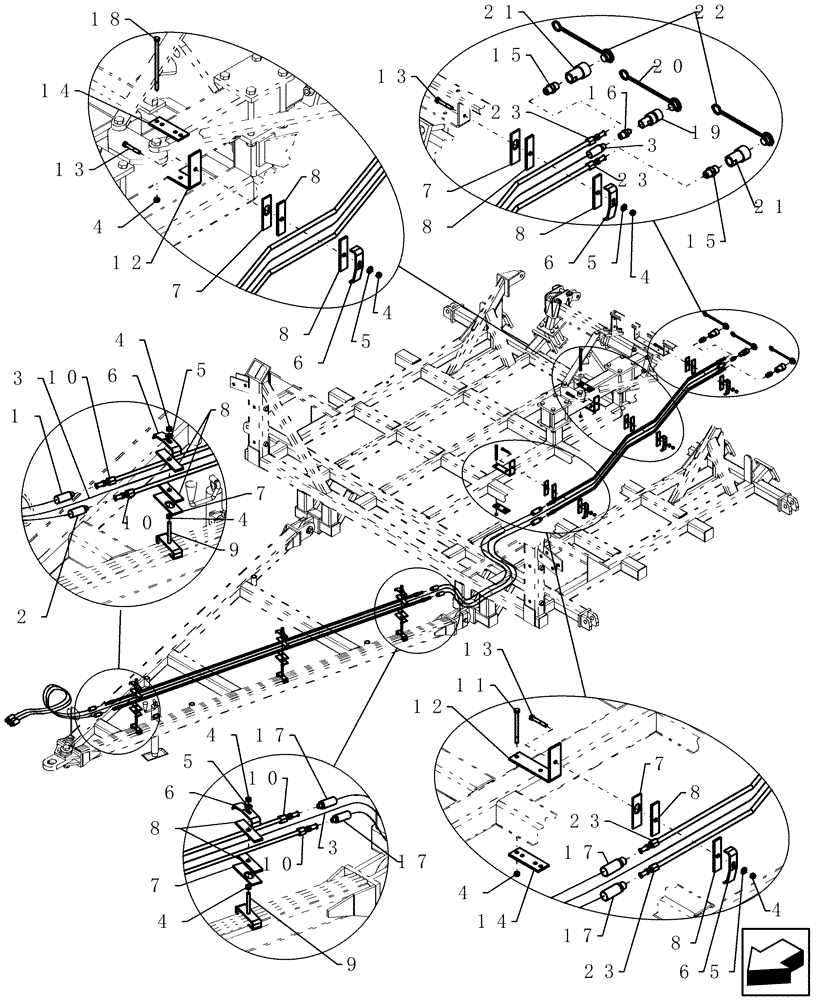

Запчасти Case IH 2230 (35.525.04) - TBH HYD LINES ACROSS ATX (35) - HYDRAULIC SYSTEMS

1

GR-256A

HYDRAULIC HOSE,0.75" ID x 96.00"

Fan pressure

1шт.

2

GR-257A

HYDRAULIC HOSE,0.75" ID x 96.00"

Fan return

1шт.

3

87502347

HYDRAULIC HOSE

3/4" x 360" fl

1шт.

ATX 40' and smaller

1шт.

3

87502346

HYDRAULIC HOSE,0.75" ID x 450.00", SAE 100R2 AT

1шт.

ATX 47' and larger

1шт.

4

232-1446

NUT,3/8"-16, GC

10шт.

5

1013043

WASHER

3/8" SAE

6шт.

6

1026712

CLAMP

5"

6шт.

7

1026713

CLAMP

backing

6шт.

8

1026714

ISOLATOR

neoprene 1/4" tk pln

12шт.

9

1026677

STUD

3/8" x 3 1/4" nc gr d zp

3шт.

10

1026745

TUBE,0.75" Diameter, 108" Length

assy 3/4" x 108"

2шт.

11

280177

BOLT,Hex, 3/8" - 16 x 5", Gr 5

2шт.

12

87442733

BRACKET

bar-angle

2шт.

13

113-250

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5, Full Thd

3шт.

14

1026123

BAR

bolting

1шт.

15

86977779

HYD CONNECTOR,1-1/16" - 12 JIC x 3/4" - 14 NPT

2шт.

16

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

1шт.

17

1026115

HYDRAULIC HOSE

3/4" x 90" fl

2шт.

17

1024361

HYDRAULIC HOSE

3/4" x 180" fl

2шт.

18

280284

BOLT,Hex, 3/8" - 16 x 7", Gr 5

2шт.

19

1994568C1

COUPLING, QUICK, FEM

1/2" fpt

1шт.

20

86592083

DUST CAP

pioneer coupler - 1/2"

1шт.

21

6935

COUPLING, QUICK, FEM

3/4"

2шт.

22

6934

PLUG

dust, pioneer coupler - 3/4"

2шт.

23

351445A1

HYD TUBE

hydraulic 3/4"

2шт.
