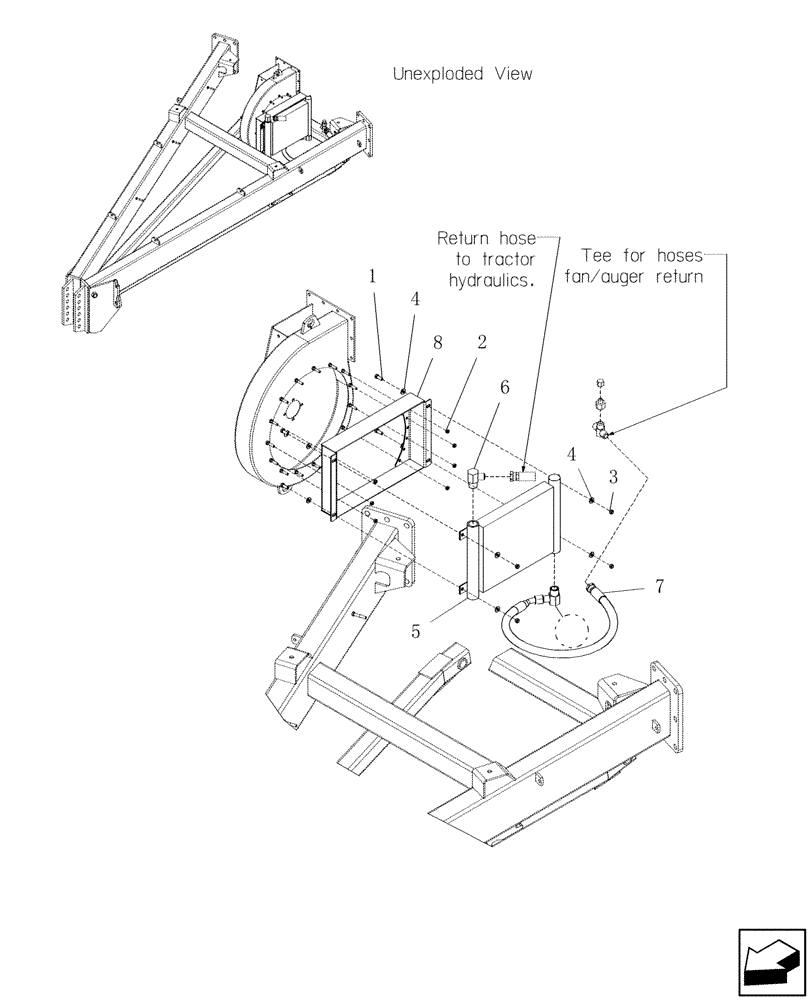

Запчасти Case IH 2230 (31.104.06) - OIL COOLER OPTION (31) - IMPLEMENT POWER TAKE OFF

1

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

2

281010

LOCK NUT,7/8"-14, GC

7шт.

3

88902

NUT,3/8"-16

4шт.

4

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

8шт.

5

6155

OIL COOLER

steel 12" x 15"

1шт.

6

218-1046

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1"-11 1/2, NPTF

2шт.

7

51200875

HYDRAULIC HOSE

3/4" x 46" fl, 3/4" fjic x 3/4" fjic

1шт.

8

GK-225

BRACKET

mount, oil cooler

1шт.

100

GK-226

SPACER

2" long

4шт.

100

88444

BOLT,Hex, 3/8" - 16 x 2 3/4", Gr 5

4шт.
