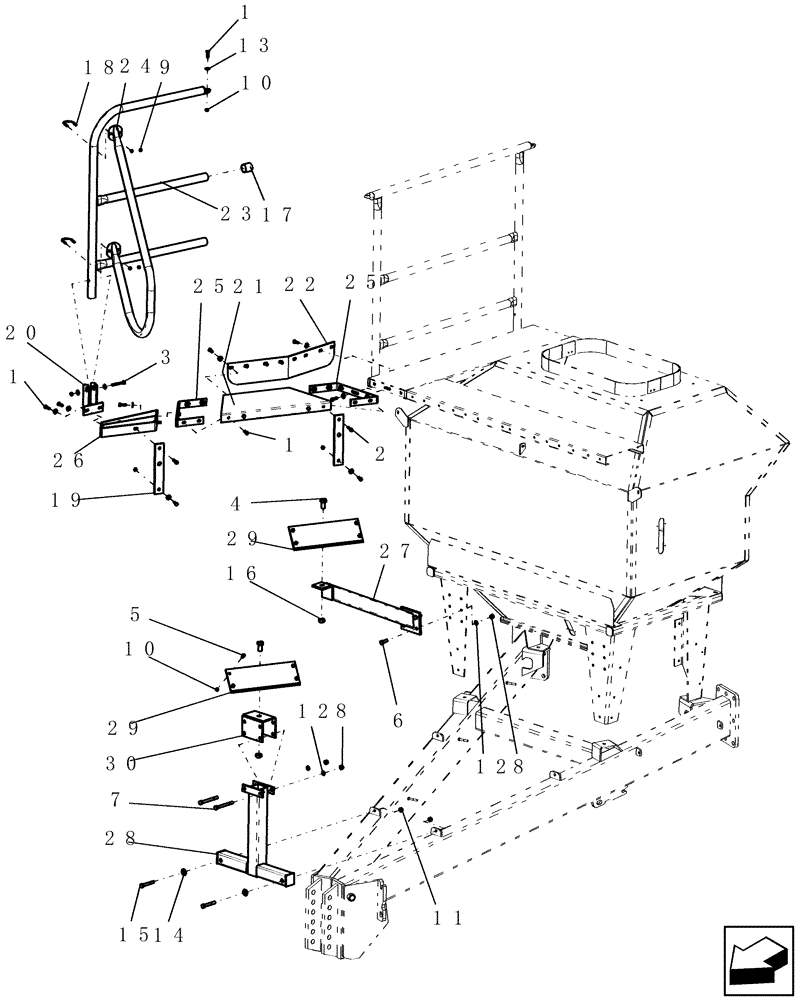

Запчасти Case IH 2230 (88.100.05) - THIRD TANK OPTION - STAIRWAY PLATFORM (88) - ACCESSORIES

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

17шт.

2

9706689

BOLT,Hex, 3/8" - 16 x 1 3/4", Gr 5

2шт.

3

280161

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

4

88692

BOLT,Hex, 3/4" - 10 x 1 1/2", Gr 5, Full Thd

2шт.

5

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

9шт.

6

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

7

87997

BOLT,Hex, 1/2" - 13 x 5", Gr 5

2шт.

8

280431

NUT,1/2"-13, G5

6шт.

9

281010

LOCK NUT,7/8"-14, GC

4шт.

10

88902

NUT,3/8"-16

29шт.

11

86992215

LOCK NUT,1/2"-13, GC

8шт.

12

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

34шт.

14

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

2шт.

15

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

16

280375

NUT,3/4"-10, GC

2шт.

17

3419

CAP

vinyl 1 5/8" x 1 1/2"

1шт.

18

6652

U-BOLT

ur 5/16"-18 x 1 3/4" w 2 3/4" d 1" thread

2шт.

19

GI-705

SPACER

support bracket

1шт.

20

GI-801

BRACKET

mount, railing

1шт.

21

GI-819

GRATING

staircase

1шт.

22

GI-820

GUSSET

bolt-on corner

1шт.

23

GI-829

RAIL ASSY.

access

1шт.

24

GI-830

HANDRAIL

access

1шт.

25

GI-831

CAP

end, staircase grating

2шт.

26

GI-832

SUPPORT

end stairway

1шт.

27

GI-852

SUPPORTING ARM

3rd tank front access

1шт.

28

GI-853

BRACKET

front access mount

1шт.

29

GI-864

MOUNTING PLATE

front access

2шт.

30

GI-866

BRACKET

front access adjustment

1шт.
