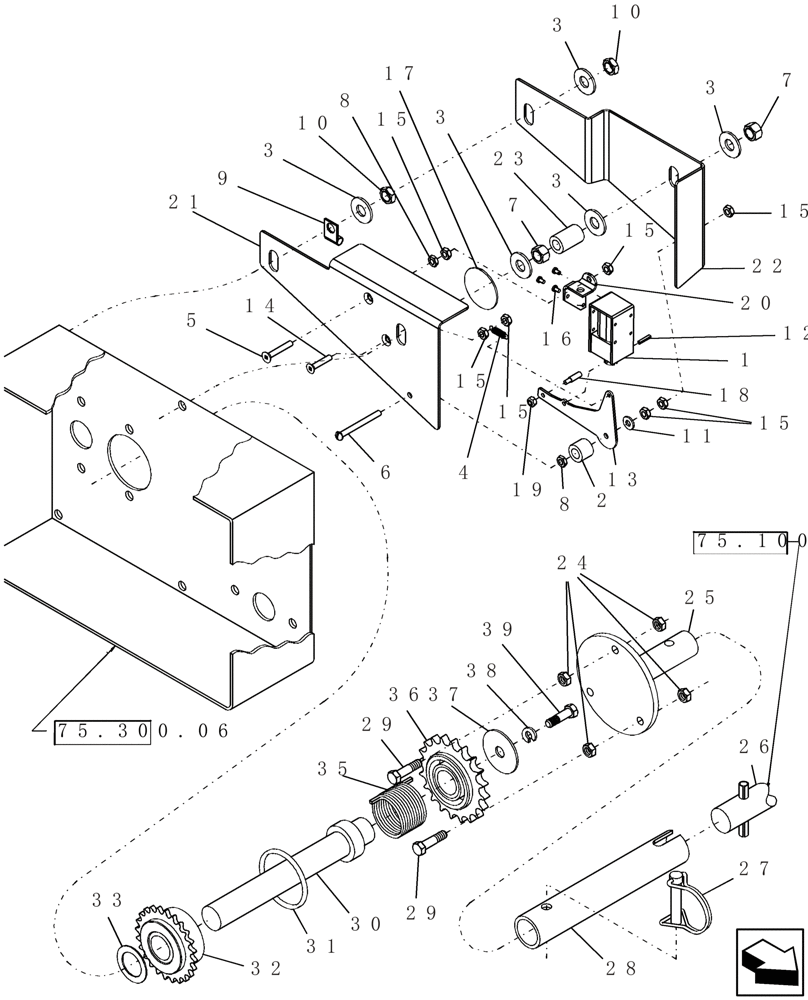

Запчасти Case IH 2230 (75.300.05) - MECHANICAL DRIVE ASSEMBLY WRAP SPRING CLUTCH (75) - SOIL PREPARATION

0

GI-475A

CLUTCH

assembly, actuator housing

1шт.

Includes GI-477, GI-478, GI-481, 8719, 8720, GI-476, GI-480, 7526, 6896, 7525, 3554, 7532, 4304, 21911, 21713, 14854, 21757, 21712, 8675 and GI-479

1шт.

1

51200032

SOLENOID

assembly, clutch

1шт.

2

GI-480

SPACER

latch arm - pvc

1шт.

3

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

4

425031A1

TENSION SPRING

1/64" wr 15/64" od x 7/8" long

1шт.

5

425032A1

SCREW

cap #10-32 x 1 1/4" fh sq

1шт.

6

173-259

SCREW,Sl Rnd Hd, #10 - 32 x 2"

1шт.

7

9628503

NUT,3/8"-16, G5

2шт.

8

87825

NUT,#10-32

1шт.

9

272535

CLAMP,1/8", Insul, 1/4" Bolt

1шт.

10

87016560

JAM NUT,Jam, 3/8"-16, G5

2шт.

11

88612

WASHER,0.22mm ID x 0.5mm OD x 0.05mm Thk

1шт.

12

21757

ROLL PIN

3 mm x 14 mm

1шт.

13

GI-481

LATCH

arm clutch housing

1шт.

14

7525

SCREW,#10 - 32 x 1"

mch #10-32 x 1" fh sq

1шт.

15

20332

LOCK NUT,#10-32, GB

7шт.

16

7532

SCREW,Pan Hd, M3 x 5mm

mch M3 x 5 mm ph slt

3шт.

17

8675

PAD

protective, adhesive back, 1 5/8" Diameter x 1/16" thick, UHMW

1шт.

18

84147800

PIN

latch arm

1шт.

19

231-14406

LOCK NUT,#6-32, GB

1шт.

20

GI-476

BRACKET

solenoid mount

1шт.

21

GI-477

MOUNTING PLATE

clutch housing

1шт.

22

GI-478

COVER

plate clutch housing

1шт.

23

GI-479

SPACER

, Serial Range: mount-cover

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

4шт.

25

GH-183

ADAPTER

meter shaft

1шт.

Refer to 75.100.18

1шт.

27

6383

PIN

quick - 5/16" x 1 3/4" usable

1шт.

28

GR-111

TUBE,1.312" OD x 4.312" L

connector meter drive

1шт.

29

9707515

BOLT,Hex, 5/16 - 18" x 1 3/4", Gr 5

2шт.

30

GH-224

SHAFT

output, c/w stator ring

1шт.

31

7170

O-RING

2 1/16" id x 2 3/8" id x .139" wide

1шт.

32

GH-884

SPROCKET

control cw

1шт.

32

87429000

SPROCKET

control ccw

1шт.

33

86624168

WASHER,1.03" ID x 1.5" OD x 0.03" Thk

1шт.

35

7301

TORSION SPRING

CW .092" Wire x 1.45" ID x 1" long

1шт.

35

51200048

TORSION SPRING

ccw 3/32" x 1 27/64" x 1 1/64"

1шт.

36

GH-223

SPROCKET

assembly, driven

1шт.

37

5271

WASHER,0.44" ID x 1.75" OD x 0.08" Thk

7/16" id 1 3/4" 5/64"

1шт.

38

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

39

86500692

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

1шт.
