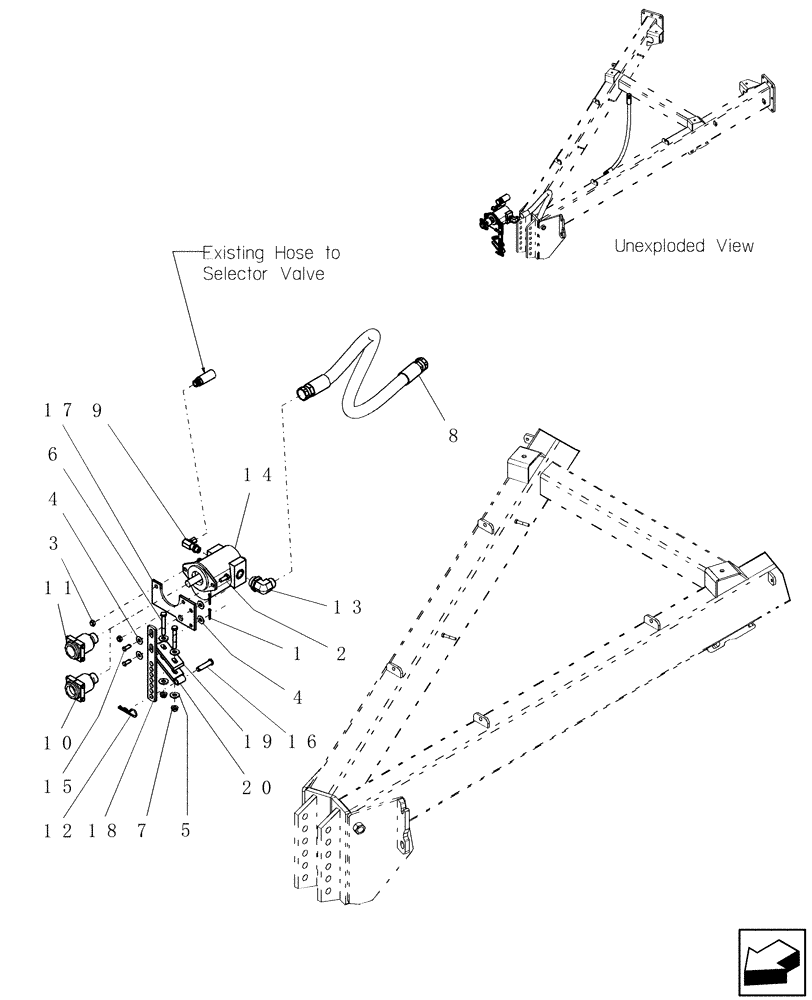

Запчасти Case IH 2230 (31.104.01) - PTO OPTION - PUMP MOUNT (31) - IMPLEMENT POWER TAKE OFF

1

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

2шт.

2

87670

BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5

2шт.

3

86992215

LOCK NUT,1/2"-13, GC

2шт.

4

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

4шт.

5

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

4шт.

6

9637417

BOLT,Hex, 1/2" - 13 x 3 1/2", Gr 5

2шт.

7

51200891

FLANGE NUT

serrated flange 1/2"-13 G2

2шт.

8

51200883

HYDRAULIC HOSE,1.25" ID x 50.00", SAE 100R4, SAE 100R1, ASTM B633 Class 2 Type 2

1 1/4" x 50" fl, 1 1/4" fjic x 1 1/4" fjic

1шт.

9

218-5394

ELBOW,90 Degree, 1 5/16"-12 O-Ring x 3/4" NPSM Fem

1шт.

10

1958267C1

COUPLING,Assembly, Pump, 1 3/8" Spline, 21 Tooth

1 3/8"

1шт.

11

1958268C1

COUPLING

1 3/4"

1шт.

12

136-251

HAIR PIN COTTER,Int, 7/16" x .177"

1шт.

13

84530

ELBOW,90 Degree, 1 5/8"-12, 37 Degree x 1 5/8"-12, O-Ring

1шт.

14

293243A1

PUMP

PTO 5.84 in3/rev

1шт.

14

293243A1R

REMAN-HYD PUMP

Remanufactured Hydraulic PTO Pump

1шт.

14

293243A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

87619629R

REMAN-HYD PUMP

2230 (7/08-), Reman For New P/N 293243A1

1шт.

87619629C

CORE-HYDRAULIC PUMP

Return Number

1шт.

14

Q53

KEY,1/4" Sq x 1", Par

1шт.

Not Shown

1шт.

14

280963

NUT,Nut, 1/2-20 GR 5 ZND

1шт.

Comes with the pump, but can be ordered separately

1шт.

14

310572A1

SEAL KIT

shaft pto pump

1шт.

15

86624068

HEADED PIN,7/16" x 1 1/4", G2

2шт.

16

86624085

HEADED PIN,15.88mm OD x 69.85mm L

1шт.

17

GK-233

PLATE

pump mounting

1шт.

18

GK-234

BRACKET

adjusting

1шт.

19

GK-235

STRAP

retaining

1шт.

20

GK-236

STRAP

assembly

1шт.
