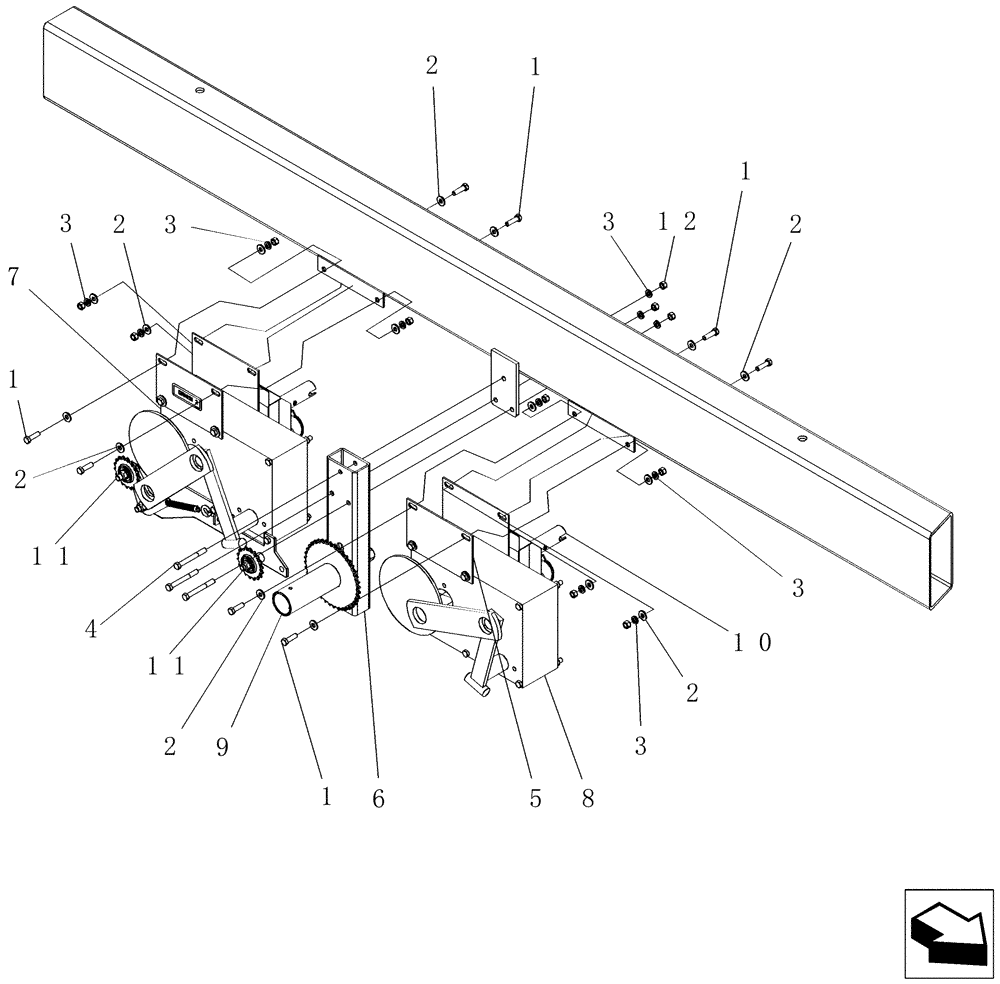

Запчасти Case IH 2230 (75.300.04) - MECHANICAL DRIVE ASSEMBLY METER DRIVE ASSEMBLY (75) - SOIL PREPARATION

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

8шт.

2

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

22шт.

3

80680

LOCK WASHER,3/8 0.381 CST ZND

13шт.

4

9637240

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3шт.

5

GI-176

MOUNTING PLATE

mechanical

4шт.

6

GI-190

BRACKET

idler mount

1шт.

7

GI-149A2

TRANSFER BOX

meter drive

1шт.

8

GI-154A2

TRANSFER BOX

meter drive ccw output

1шт.

9

GI-158A

KIT

main crank

1шт.

Includes GH-177, GH-552, two 6858, 5261, nine 2906, two 1541 and three 4221

1шт.

10

GR-111

TUBE,1.312" OD x 4.312" L

connector meter drive

1шт.

11

2244

SPROCKET

idler

2шт.

12

9628503

NUT,3/8"-16, G5

11шт.

100

GE-349A

HANDLE

assembly, crank, Serial Range: -Y9S015091

1шт.

Not Shown

1шт.

Includes GE-349, 425-107, five 495-21044, 413-764 and GE-172

1шт.

100

84166063

CRANK LEVER

handle, Start Serial: Y9S015091

1шт.

Includes 84166062, GE-172, 2119, 1538 and five 1563

1шт.

100

84166062

CRANK

Arm

1шт.

Not Shown

1шт.

Includes GE-172, 1538, four 1563 and 2119

1шт.

100

87654364

CRANK LEVER

handle

1шт.

Not Shown

1шт.
