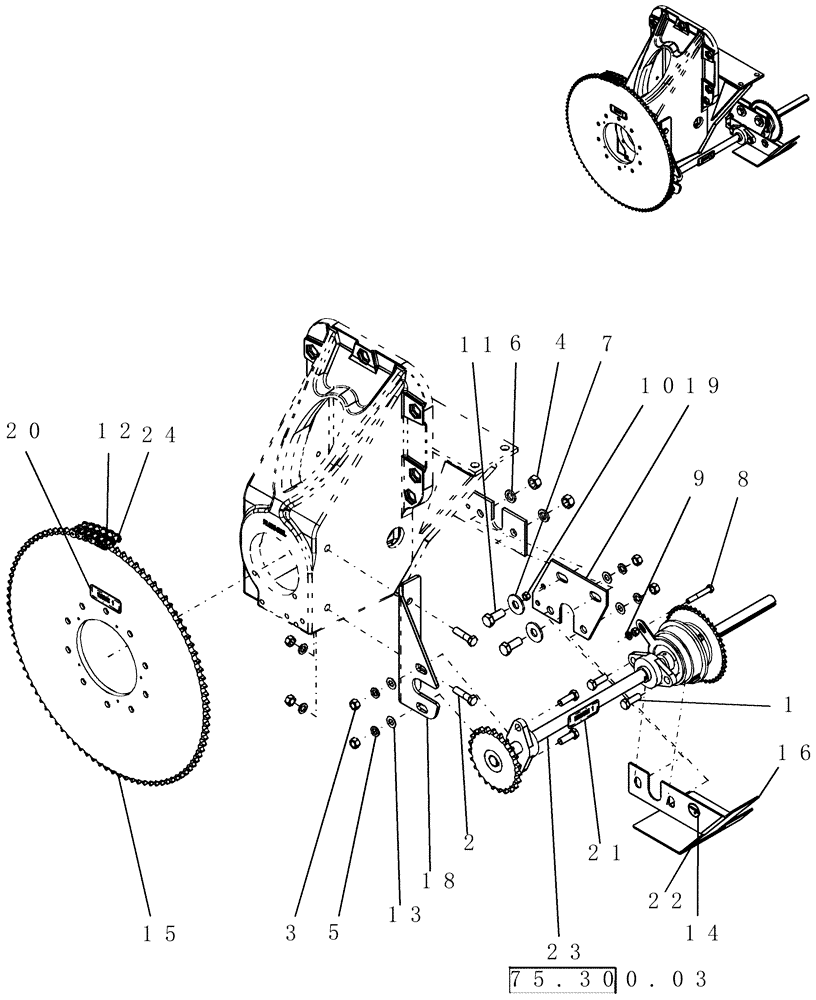

Запчасти Case IH 2230 (75.300.02) - MECHANICAL DRIVE ASSEMBLY DUAL STRAND (75) - SOIL PREPARATION

1

87689

BOLT,1/2"-13 x 1.813" OAL, Gr 5

4шт.

2

9706716

BOLT,Hex, 1/2" - 13 x 2", Gr 5

2шт.

3

280431

NUT,1/2"-13, G5

6шт.

4

280374

NUT,Hex, 5/8" - 11, Gr 5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

6шт.

6

12034871

WASHER

5/8"

2шт.

7

80299

WASHER,0.69" ID x 1.75" OD x 0.13" Thk

2шт.

8

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

1шт.

9

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

10

9628503

NUT,3/8"-16, G5

2шт.

11

88062

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8

2шт.

12

241-1326

LINK,12.7mm Pitch

chain, connector 60-2 with clip

1шт.

13

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

4шт.

14

6630

DECAL

grease 100 hours

2шт.

15

9306

SPROCKET

60w96

1шт.

16

GI-147

SHIELD

clutch

1шт.

18

GI-203

BRACKET

bearing mount, outside

1шт.

19

GI-204

PLATE

height

1шт.

20

GI-500.10

DECAL

drive 1

1шт.

21

GI-500.11

DECAL

driven 1

1шт.

22

GI-500.12

DECAL

drive 2

1шт.

23

NSS

NOT SOLD SEPARAT

(This item not saleable)

1шт.

Refer to 75.300.03

1шт.

24

GL-366

CHAIN,Drive, 1828.8mm L

drive 96 tooth drive sprocket

1шт.

100

GI-500.13

DECAL

driven 2

1шт.

Not Shown

1шт.
