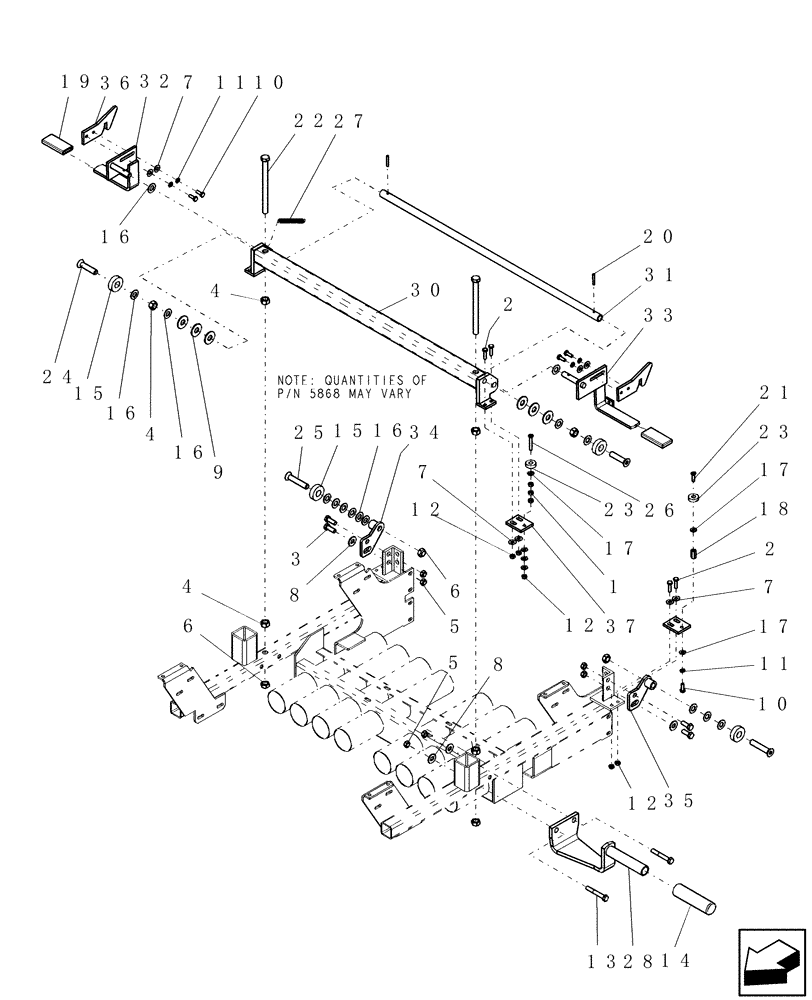

Запчасти Case IH 2230 (75.100.21[02]) - CENTER MANIFOLD LIFT TBT (PART 2 OF 2) (75) - SOIL PREPARATION

1

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

2

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

4

280431

NUT,1/2"-13, G5

6шт.

5

88902

NUT,3/8"-16

6шт.

6

86992215

LOCK NUT,1/2"-13, GC

4шт.

7

95-21031

WASHER,1/4"

8шт.

8

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

4шт.

9

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

6шт.

10

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

5шт.

11

80682

LOCK WASHER,1/4"

5шт.

12

280129

NUT,1/4"-20

5шт.

13

87936

BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5

2шт.

14

3740

HANDLE

plastic - 1" id

1шт.

14

51200111

HANDLE

61/64" x 4 3/8" yellow

1шт.

15

362804

BALL BEARING,17mm ID x 40mm OD x 12mm W

6203DDUAV2S (NSK)

4шт.

16

5868

WASHER,0.5" ID x 1" OD x 0.06" Thk

1/2" id 1" 16ga

15шт.

17

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

6шт.

18

8600

PIPE UNION NUT

coupling 1/4"-20 x 7/8", G2

1шт.

19

9460

CAP

1/4" x 1 1/4" x 3"

2шт.

20

87020816

LOCK PIN,4.76mm OD x 31.75mm L

2шт.

21

9982

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1"

hex socket 1/4" x 20" x 1" ss fh

1шт.

22

9627857

BOLT,Hex, 1/2" - 13 x 6 1/2", Gr 5

2шт.

23

22461

BEARING

6000llu ntn

2шт.

24

22822

SCREW

cap 1/2" x 2 1/4" fh hx-skt all thread

2шт.

25

87013782

HEX SOC SCREW,Flat Hd, 1/2" -13 x 2 3/4"

2шт.

26

87013781

HEX SOC SCREW,Flat Hd, 1/4" - 20 x 1 3/4"

1шт.

27

87506209

TENSION SPRING

1/16" wire x 1/2" od x 4" long

1шт.

28

GI-368

HANDLE

manifold lift

1шт.

30

GI-631

BAR

roller, center manifold

1шт.

31

GI-634

TUBE,0.75" OD x 30.875" L

manifold lock connector

1шт.

32

GI-637

LATCH

center manifold LH

1шт.

33

GI-638

LATCH

center manifold RH

1шт.

34

GI-648

ADJUSTER

front bearing LH

1шт.

35

GI-649

ADJUSTER

front bearing RH

1шт.

36

GI-869

LATCH

plate, center manifold

2шт.

37

GI-949

ADJUSTER

plate center manifold

2шт.
