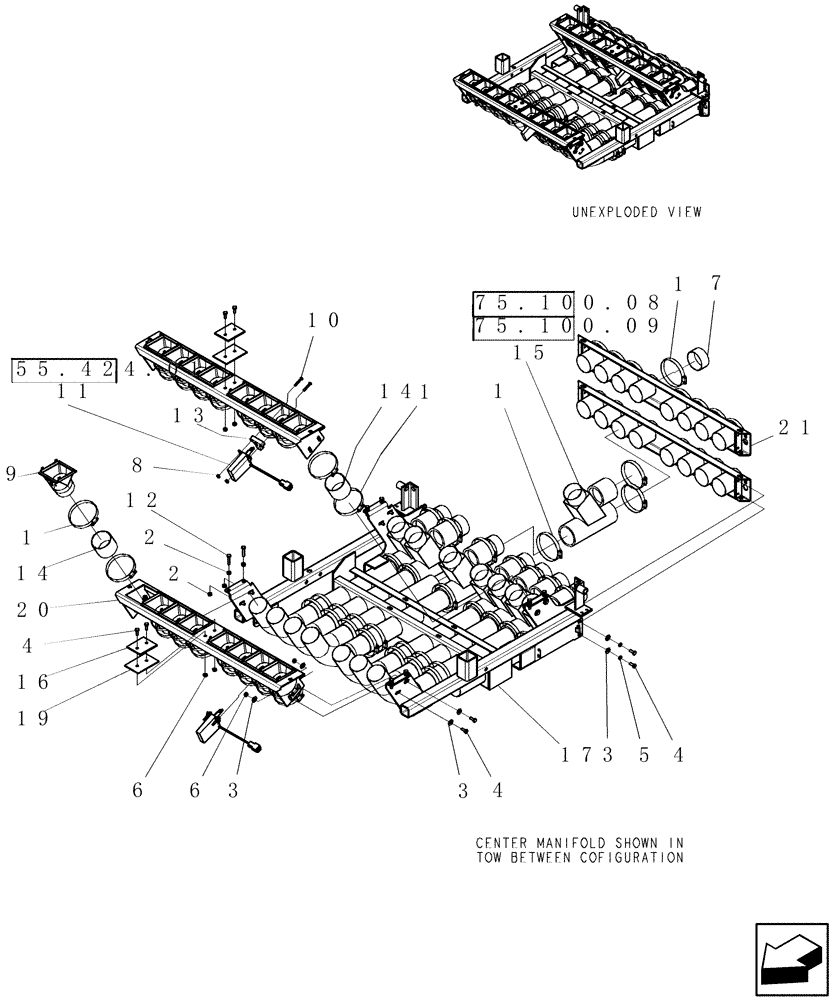

Запчасти Case IH 2230 (75.100.20) - CENTER MANIFOLD (75) - SOIL PREPARATION

1

214-1444

HOSE CLAMP,58.6mm - 82.5mm

64шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

16шт.

3

95-21031

WASHER,1/4"

24шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

20шт.

5

80682

LOCK WASHER,1/4"

8шт.

6

280129

NUT,1/4"-20

12шт.

7

4731

CAP

vinyl 2 1/2" id x 1" long

8шт.

8

9148

LOCK NUT

#10-32, stainless steel

4шт.

9

9475

TUBE

manifold transition, velocity sensor

16шт.

10

7777

SCREW,Pan Hd, #10 - 32 x 1"

mch #10-32 x 1" ph Phillips ss

4шт.

9

425095A1

PLUG

manifold transition - velocity sensor

16шт.

11

13637V2

SENSOR

air flow

2шт.

Refer to 55.424.01

1шт.

12

22577

BOLT

1/4"-20 x 1 1/4", G5, all thread

8шт.

13

CA-142

SPACER

air velocity sensor

1шт.

14

GD-602

HOSE,2.50" ID x 2.25"

16шт.

Refer to 75.100.08

1шт.

15

448080A1

VALVE

single / double shoot

8шт.

9" required

1шт.

Refer to 75.100.09

1шт.

16

GI-221

SPACER

plate blank manifold

2шт.

17

87693083

MANIFOLD

center rear access

1шт.

19

GL-116

SPACER

plate transition manifold rear

2шт.

20

GL-442

PANEL

mount, transition manifold

2шт.

21

GL-443

MANIFOLD

outlet

2шт.
