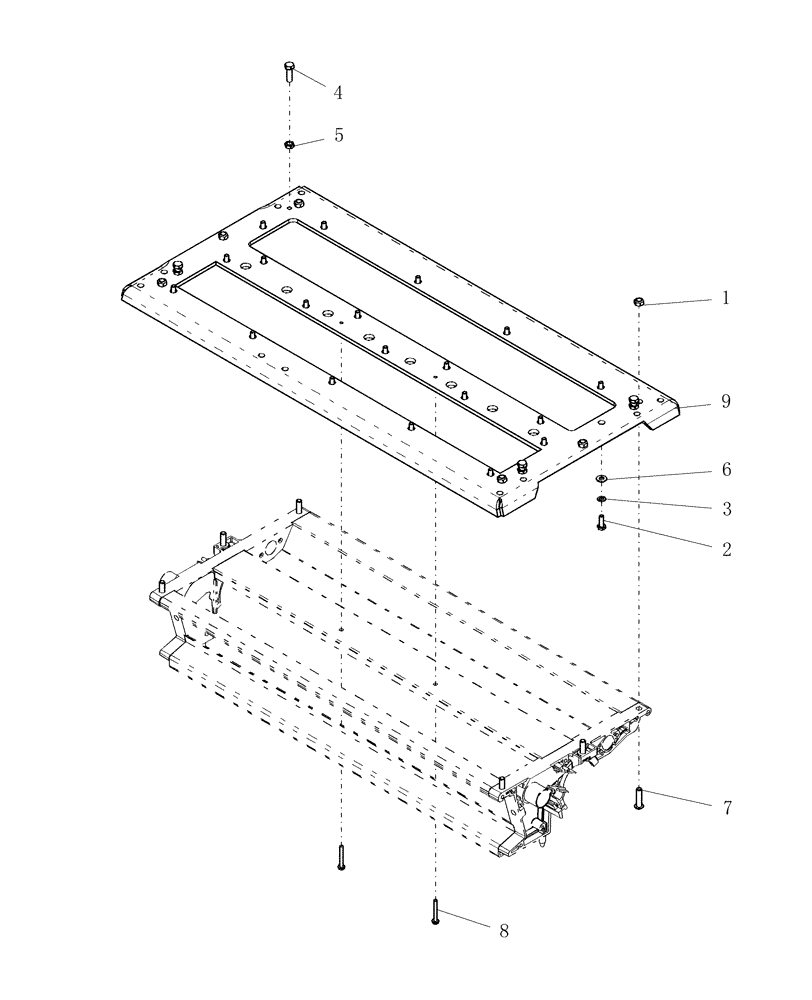

Запчасти Case IH 2230 (75.100.15) - METER MOUNT PLATE (75) - SOIL PREPARATION

1

281010

LOCK NUT,7/8"-14, GC

6шт.

2

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

20шт.

3

80682

LOCK WASHER,1/4"

20шт.

4

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

4шт.

5

86637931

JAM NUT,Jam, 5/16"-18, G5

4шт.

6

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

20шт.

7

22102

SCREW

cap 5/16" x 1 1/4" bh skt

6шт.

8

22532

SELF-TAP SCREW

#10-32 x 1 1/2", Serial Range: -Y9S015091

2шт.

8

87470068

SELF-TAP SCREW,#10 - 32 x 2"

tap #10-32 x 2", Start Serial: Y9S015091

2шт.

9

GI-456

MOUNTING PLATE

meter box

1шт.
