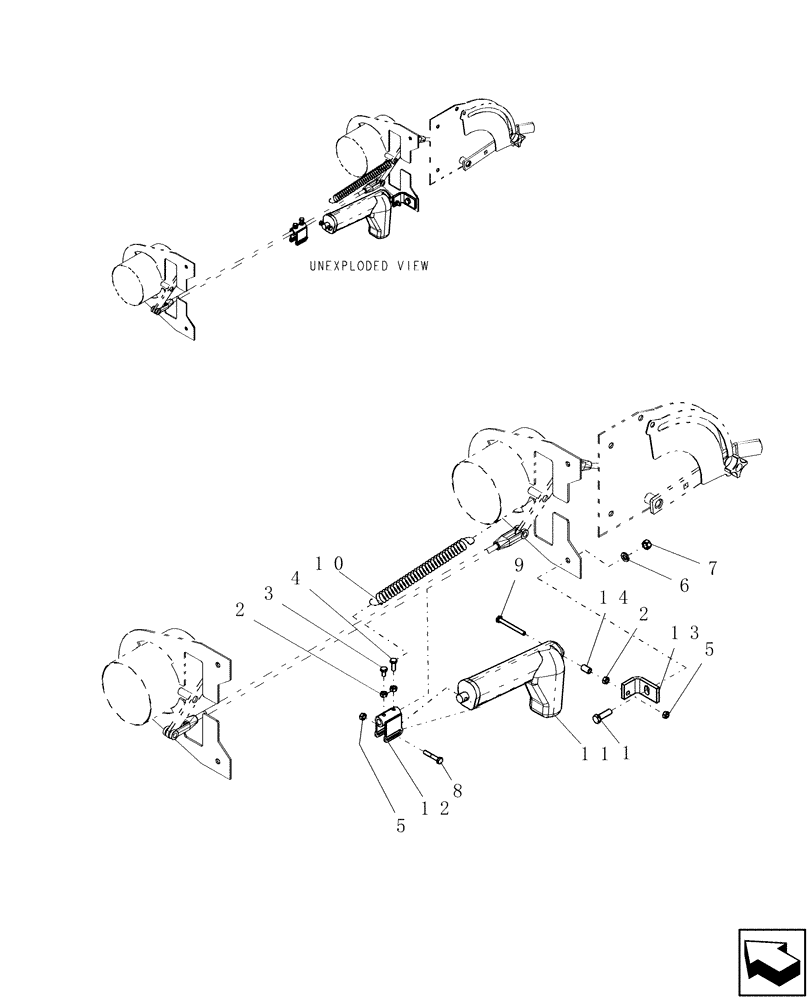

Запчасти Case IH 2230 (75.100.14) - AIR CONTROL OPTION - THIRD TANK (75) - SOIL PREPARATION

1

88011

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

2шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

3шт.

3

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

1шт.

5

280129

NUT,1/4"-20

2шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

2шт.

7

9628503

NUT,3/8"-16, G5

2шт.

8

280112

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

1шт.

9

9909

BOLT

1/4" x 2 1/2" GR5 all thread

1шт.

10

22794

TENSION SPRING

.092'' Wire x .925'' OD x 9.5'' long

1шт.

11

51200089

ACTUATOR

linear with feedback

1шт.

12

GI-750

BRACKET

linear actuator adjustment

1шт.

13

GI-751

BRACKET

linear actuator mount

1шт.

14

GL-693

SPACER

fan control actuator

1шт.
