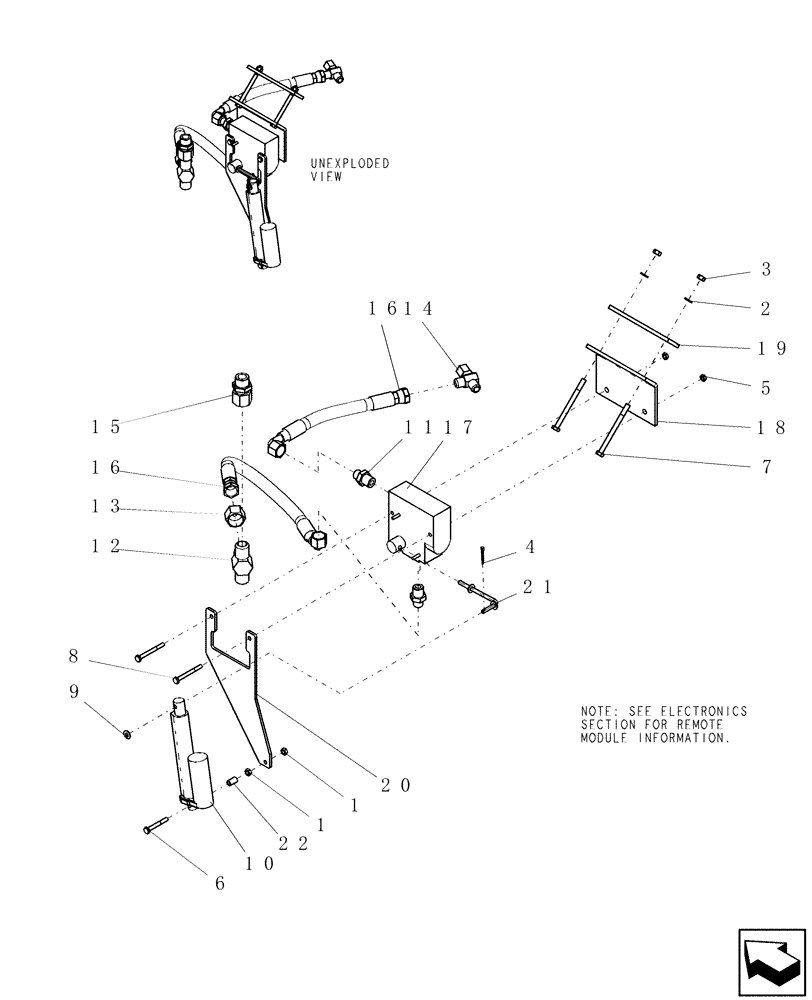

Запчасти Case IH 2230 (75.100.13) - FAN AIR OPTION - FAN SPEED CONTROL (75) - SOIL PREPARATION

1

7770

NUT,Hex, 1/4 - 20, Cl 5

2шт.

2

80681

LOCK WASHER,5/16"

2шт.

3

9635082

NUT,5/16" - 18, Gr 5

2шт.

4

80755

COTTER PIN,1/8" OD x 1" L

1шт.

5

280129

NUT,1/4"-20

2шт.

6

87404

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1шт.

7

88964

BOLT,Hex, 5/16" - 18 x 4", Gr 5

2шт.

8

87845

BOLT,Hex, 1/4" - 20 x 2 1/2", Gr 5

2шт.

9

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

3шт.

10

51200131

ACTUATOR

electric linear 75 lb x 4"

1шт.

11

132341

HYD CONNECTOR,3/4" - 16 JIC x 1/2" - 14 NPT

2шт.

12

80015694

TEE,1 1/16"-12 37 Degree

1шт.

13

87648720

REDUCER,3/4" - 16 JIC x 1-11/16" - 12 JIC

37º, 1 1/16"-12, Fem x 3/4"-16 Male

1шт.

14

86511870

TEE,3/4" - 16 JIC x 3/4" - 16 JIC x 3/4" - 16 JIC

1шт.

15

22060

FITTING

hydraulic - straight adapter 3/4" morb x 3/4" fjic

1шт.

16

22774

HYDRAULIC HOSE

1/2" x 13" fl, 1/2" fjic x 1/2" fjic

2шт.

17

425030A1

CONTROL VALVE

flow, 3 port

1шт.

18

GI-246

MOUNTING PLATE

valve fan air control

1шт.

19

GI-247

CLAMP

fan air control

1шт.

20

GL-502

PLATE

mounting flow control actuator

1шт.

21

GL-690

ARM

actuator, air flow control

1шт.

22

GL-693

SPACER

fan control actuator

1шт.
