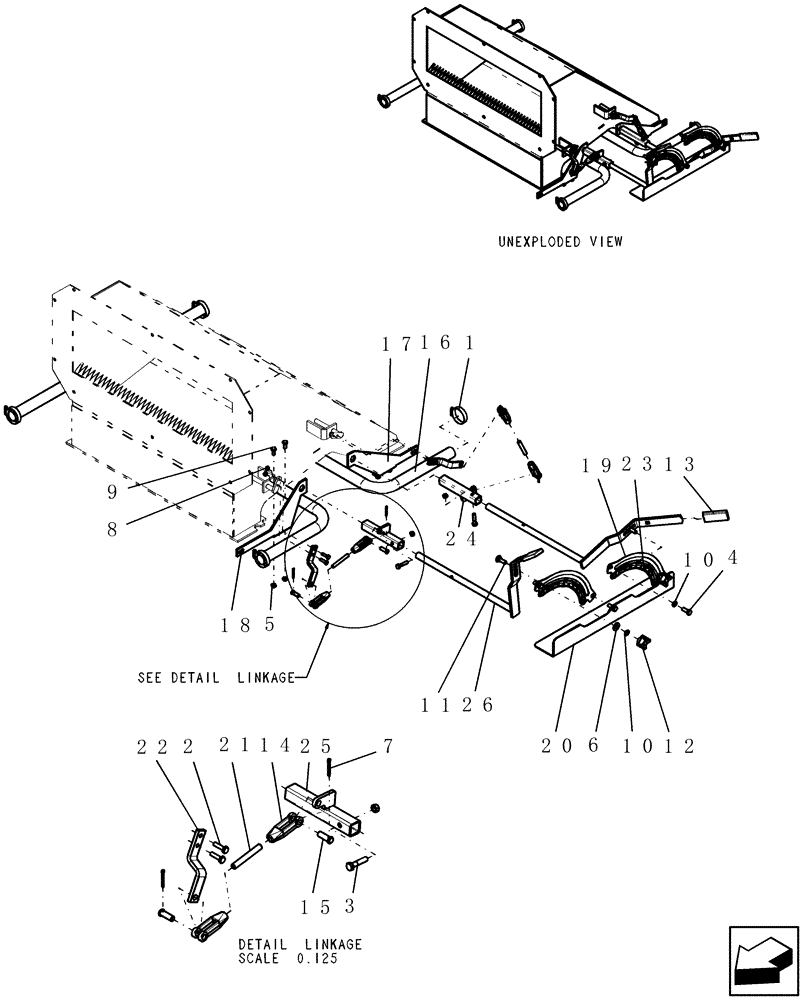

Запчасти Case IH 2230 (75.100.07[02]) - OUTLET PLENUM AIR CONTROL (PART 2 OF 2) (75) - SOIL PREPARATION

1

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

8шт.

2

86505867

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

3

88275

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

2шт.

4

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

5

281010

LOCK NUT,7/8"-14, GC

6шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

80755

COTTER PIN,1/8" OD x 1" L

4шт.

8

280129

NUT,1/4"-20

4шт.

9

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

10

80680

LOCK WASHER,3/8 0.381 CST ZND

6шт.

11

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

2шт.

12

6909

KNOB

plastic 4-prong 3/8" thru hole brass insert

2шт.

13

9460

CAP

1/4" x 1 1/4" x 3"

2шт.

14

51200897

LINKAGE YOKE

clevis 3/8" x 2 1/2" long

4шт.

15

9834

CLEVIS PIN

3/8" x 1 1/16"

4шт.

16

51200101

HOSE,1.25" ID x 32.00"

Flex-Haust Type CW-GP

4шт.

17

GI-316

BRACKET

rear actuator

1шт.

18

GI-317

BRACKET

front mount

1шт.

19

GI-319

MOUNTING PLATE

air control decal

2шт.

20

GI-332

SHIELD

air control handle

1шт.

21

GI-404

ROD

control - short

2шт.

22

GI-420

ARM

crank, offset

2шт.

23

GI-500.16

DECAL

air control

2шт.

24

GI-597

CRANK

air control

1шт.

25

GI-598

CRANK

air control

1шт.

26

GI-954

HANDLE

air control

2шт.

Shown

1шт.

26

GI-242

HANDLE

intermediate manifold

1шт.

Not Shown

1шт.
