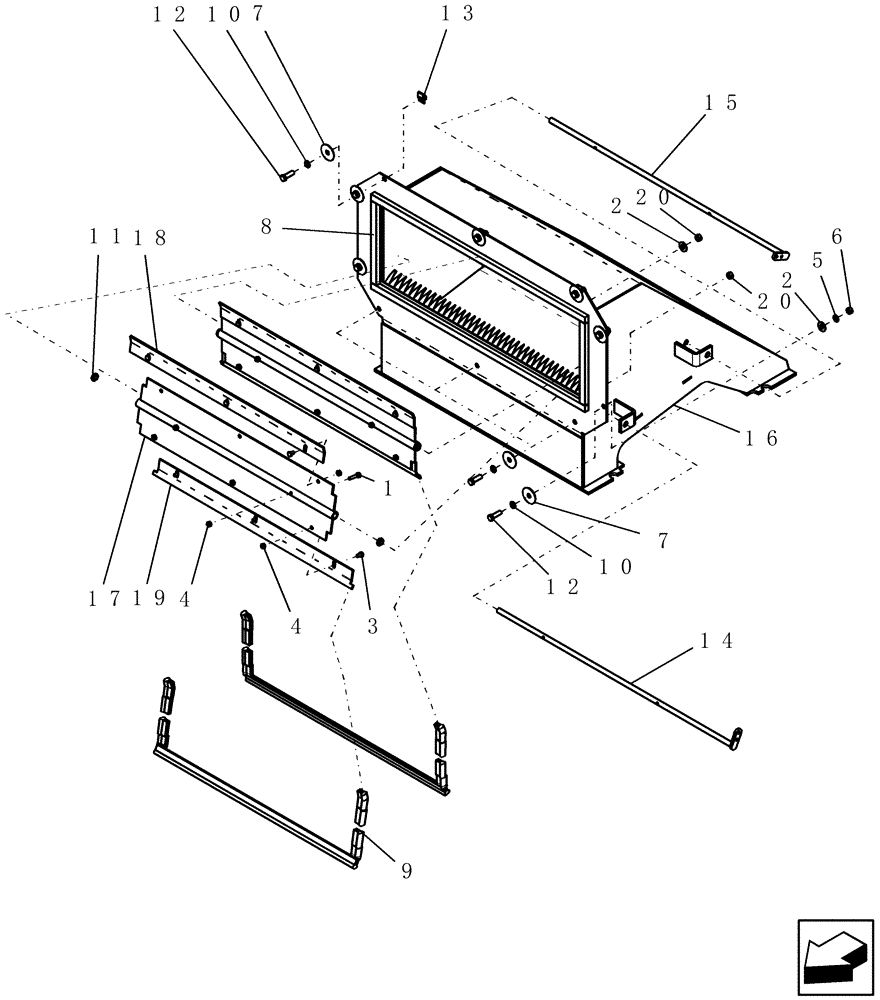

Запчасти Case IH 2230 (75.100.07[01]) - OUTLET PLENUM AIR CONTROL (PART 1 OF 2) (75) - SOIL PREPARATION

1

87716

BOLT,1/4"-20 x 1-1/4", Cl 5

4шт.

2

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

5шт.

3

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

12шт.

4

280129

NUT,1/4"-20

16шт.

5

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

6

9628503

NUT,3/8"-16, G5

4шт.

7

5271

WASHER,0.44" ID x 1.75" OD x 0.08" Thk

7/16" id 1 3/4" 5/64"

10шт.

8

425473A1

SEAL

sponge 3/4" wide x 1/2" thick x 83" long

1шт.

Cut 83" from 20' roll marked 86992936

1шт.

8

86992936

SEAL

sponge 3/4" x 1/2" thick order in multiples of 20, Serial Range: -Y9S015091

1шт.

8

84181721

SEAL

3/4" Wide x 1" Thick, Bulk 25' Roll, Start Serial: Y9S015091

1шт.

9

425467A1

SEAL

sponge trim round 82"

1шт.

Cut 82" from 25' bulk roll marked 86992288

1шт.

9

86992288

RUBBER SEAL

sponge trim round

1шт.

10

280681

LOCK WASHER,3/8", Stainless

10шт.

11

51200057

GROMMET

3/4" od x 7/16" id x 1/4" thick

4шт.

12

8919

SCREW,Pan Hd, 1/4" - 20 x 3/4", Sl Sq Drive, Stainless

1/4"-20 x 3/4" - stainless steel

10шт.

13

131-634

SPRING NUT,J, Ret, 3/8"-16

3шт.

14

GI-227

SHAFT

bottom damper

1шт.

15

GI-401

SHAFT

top damper

1шт.

16

GI-591

INSERT

plenum

1шт.

17

GI-593

BAFFLE

panel

2шт.

18

GI-595

BAFFLE

panel, 3 slots

2шт.

19

GI-596

BAFFLE

panel notched end

2шт.

20

88902

NUT,3/8"-16

3шт.
