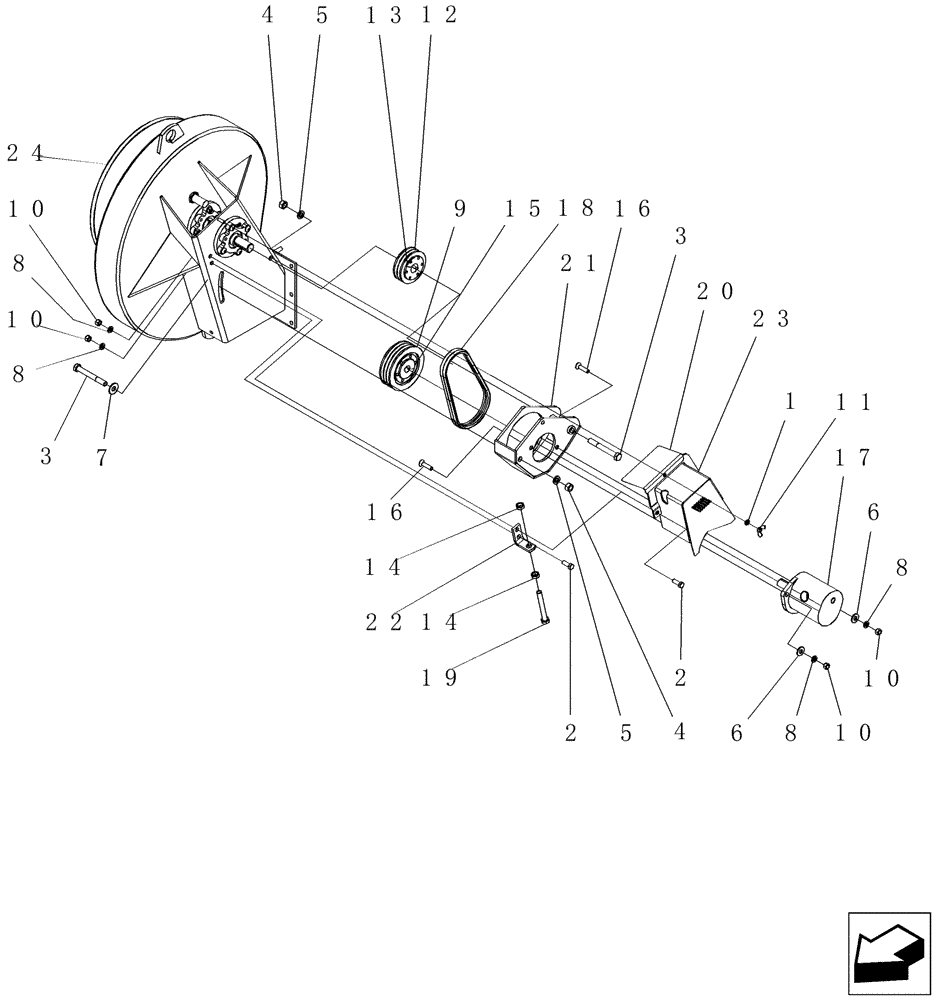

Запчасти Case IH 2230 (75.100.02) - MOTOR MOUNT ASSEMBLY (75) - SOIL PREPARATION

1

80681

LOCK WASHER,5/16"

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

3

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

4

280431

NUT,1/2"-13, G5

2шт.

5

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

6

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

2шт.

7

81541

WASHER,0.5" ID x 1.25" OD x 0.08" Thk

1шт.

8

80680

LOCK WASHER,3/8 0.381 CST ZND

4шт.

9

2261

SHEAVE

5" od - 3v 3 groove

1шт.

10

9628503

NUT,3/8"-16, G5

4шт.

11

80801

WING NUT

5/16"-18

1шт.

12

425023A1

SHEAVE

3 41/64" od - 3v 2 groove

1шт.

13

4361

BUSHING

sh 1" bore

1шт.

14

86632558

JAM NUT,Jam, 1/2"-13, G5

2шт.

15

8565

BUSHING

3/4" bore

1шт.

16

9920

SCREW,3/8" - 16 x 1.5, Gr 5

3/8" x 1 1/2" GR5 countersunk

2шт.

17

9926

HYDRAULIC MOTOR

19cc ultra, Years: 01-OCT-04-01-MAY-09

1шт.

17

87488819R

REMAN-HYD MOTOR

19cc, Years: 01-OCT-04-01-MAY-09

1шт.

17

87488819C

CORE-MOTOR HYDRAULIC

Return Number, HYDRAULIC MOTOR

1шт.

17a

51200121

SEAL KIT

hydraulic motor 19cc ultra

1шт.

For motor 9926

1шт.

17b

9972

SEAL

hydraulic motor Ultra 19cc

1шт.

For motor 9926

1шт.

17

87488819

HYDRAULIC MOTOR

Rexroth 19cc Ultra, Start Year: 01-MAY-09

1шт.

17

87488819R

REMAN-HYD MOTOR

Remanufactured Hydraulic Motor

1шт.

17

87488819C

CORE-MOTOR HYDRAULIC

Return Number, HYDRAULIC MOTOR

1шт.

17a

84217322

SEAL KIT

, Start Year: 01-MAY-09

1шт.

For motor 87488819

1шт.

18

21486

BELT

3vx265

2шт.

19

88965

BOLT,Hex, 1/2"-13 x 4", G5, Full Thd

1шт.

20

GH-478

SHIELD

fan shaft

1шт.

21

GI-351

BRACKET

mount, motor hydraulic belt drive

1шт.

22

GI-354

BRACKET

belt adjustment

1шт.

23

GI-355

GUARD

belt single fan

1шт.

24

GI-350A

FAN

assembly, single - belt drive

1шт.
