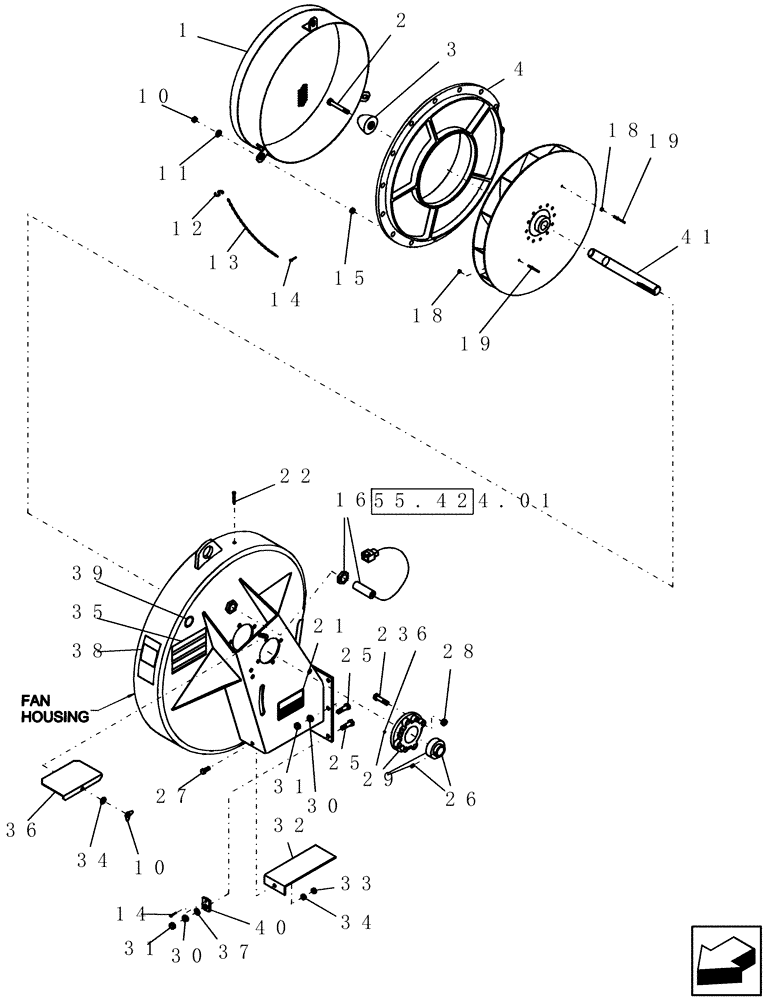

Запчасти Case IH 2230 (75.100.01) - SINGLE FAN ASSEMBLY (75) - SOIL PREPARATION

0

GI-350A

FAN

assembly, single - belt drive

1шт.

1

GD-770

SCREEN

fan inlet

1шт.

2

5110

BOLT

fg 3/8"-16 x 2 1/2" GR5 sfl

1шт.

3

GE-396

HUB

spinner, fan

1шт.

4

4999\C

FAN

inlet casting

1шт.

6

87414

LUBE NIPPLE,1/4" - 28

1шт.

10

80801

WING NUT

5/16"-18

1шт.

11

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

1шт.

12

6053

HOOK

#6

1шт.

13

GD-388

CHAIN

safety, inlet shield - 9"

1шт.

9" required

1шт.

14

80755

COTTER PIN,1/8" OD x 1" L

1шт.

15

86521605

FLANGE NUT,5/16"-18, Cl 5

1шт.

16

13976

SENSOR

shaft

1шт.

Refer to 55.424.01

1шт.

17

425045A1

NUT

7/8"-20 x 1/4" thick

1шт.

18

87653

NUT,#8-32

1шт.

19

425028A1

RIVET

pop 1/8" x 1/2"

1шт.

21

GL-700.52

DANGER DECAL

keep all shield

1шт.

22

87398

COTTER PIN,3/16" OD x 1-1/4" OAL

1шт.

23

5315

SCREW,3/8" - 16 x 1-1/2"

hex socket 3/8"-16 x 1 1/2" blk bh

1шт.

25

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

26

6180

BALL BEARING,25.4mm ID x 52mm OD x 18mm W

1" bore

1шт.

27

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

28

88902

NUT,3/8"-16

1шт.

29

GD-177A

FLANGED BEARING

c/w 4 hole flange

1шт.

Includes 219-8 and 6180

1шт.

30

80680

LOCK WASHER,3/8 0.381 CST ZND

1шт.

31

9628503

NUT,3/8"-16, G5

1шт.

32

GD-377

SHIELD

fan bottom

1шт.

33

9635082

NUT,5/16" - 18, Gr 5

1шт.

34

80681

LOCK WASHER,5/16"

1шт.

35

GD-300.05

DECAL

attention fan

1шт.

36

GH-478

SHIELD

fan shaft

1шт.

37

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

1шт.

38

GD-500.73

DANGER DECAL

fan

1шт.

39

6566

DECAL

grease 50 hours

1шт.

40

GH-530

BRACKET

mount, fan shield chain

1шт.

41

GI-117

SHAFT

fan belt drive

1шт.

100

22407

DECAL

fan belt tension adjustment

1шт.

Not Shown

1шт.
