Запчасти Case IH 2230 (58.100.01) - EZ FLOW HEADER MOUNTS (58) - ATTACHMENTS/HEADERS

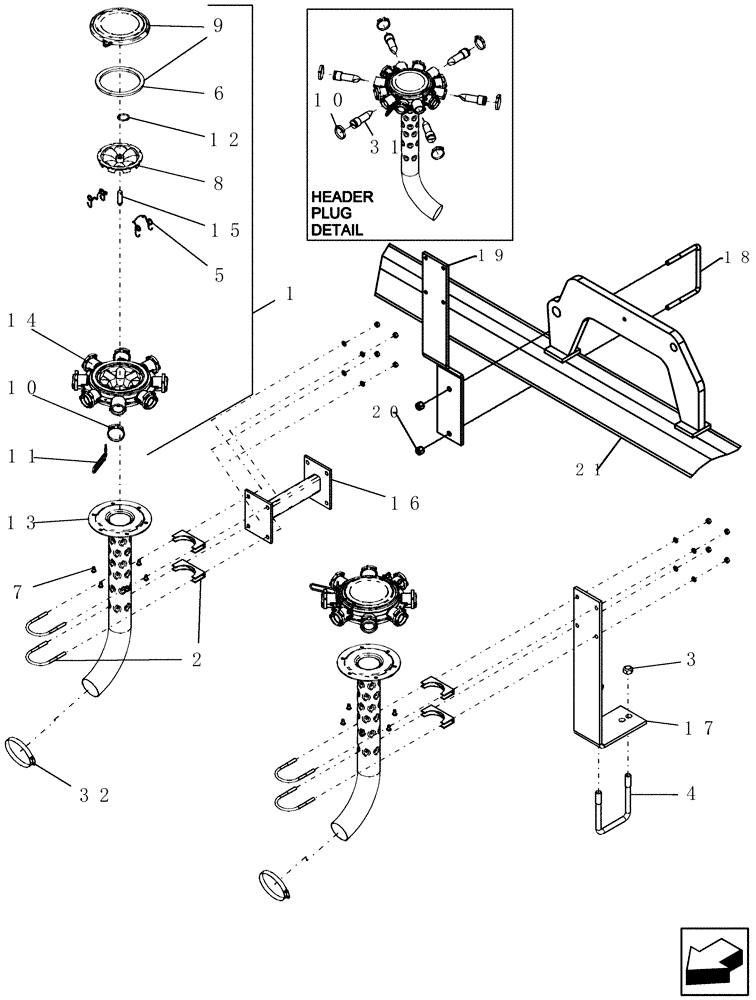

Схема запчастей Case IH 2230 - (58.100.01) - EZ FLOW HEADER MOUNTS (58) - ATTACHMENTS/HEADERS
7
6
15
2
17
4
5
12
13
19
18
11
10
21
1
9
14
10
32
3
8
16
31
20

Артикул

Название

Примечание

Количество

1

GP-106SV1

KIT

6 port ez flow header

1шт.

Includes 12 port header with 6 plugs - part number 23789

1шт.

Includes GP-112, 22073, six 23789, GP-253, two 21746, six 22035, 22104, twelve 507586, 419998A1 and 22602

1шт.

1

GP-107SV1

KIT

header 7 port ez flow

1шт.

Includes GP-107, 22323, GP-253, three 21746, six 22035, 22104, seven 507586, 419998A1 and 22602

1шт.

1

GP-108SV1

KIT

header 8 port ez flow

1шт.

Includes GP-108, 22070, GP-253, three 21746, six 22035, 22104, eight 507586, 419998A1 and 22602

1шт.

1

GP-109SV1

KIT

header 9 port ez flow

1шт.

Includes GP-109, 22071, GP-253, three 21746, six 22035, 22104, nine 507586, 419998A1 and 22602

1шт.

1

GP-110SV1

KIT

header 10 port ez flow

1шт.

Includes GP-110, 21749, GP-253, two 21746, six 22035, 22104, ten 507586, 419998A1 and 22602

1шт.

1

GP-111SV1

KIT

header 11 port ez flow

1шт.

Includes GP-111, 22072, GP-253, three 21746, six 22035, 22104, eleven 507586, 419998A1 and 22602

1шт.

1

GP-112SV1

KIT

header 12 port ez flow

1шт.

Includes GP-112, 22073, GP-253, two 21746, six 22035, 22104, twelve 507586, 419998A1 and 22602

1шт.

2

1824

CLAMP

muffler, 2 1/2"

4шт.

3

85700693

NUT,5/8" - 11, Gr C

2шт.

4

3951

U-BOLT

us 5/8"-11 4 1/16" w 5 3/8" d GR5

1шт.

5

21746

CIRCLIP

lid ez flow header

4шт.

6

21754

GASKET

lid - 5 3/8" od x 7/16" w x 1/4" thick

2шт.

7

187-845

SELF-TAP SCREW,Slotted Rd Hd, 1/4" x 1/2"

12шт.

8

REF

INSTRUCTION

For 6 port header, use 12 port header with 6 plugs

2шт.

8

22323

INSERT

header 7 port

2шт.

Not Shown

1шт.

8

412922A1

INSERT

header 8 port

2шт.

Shown

1шт.

8

22071

INSERT

header 9 port

2шт.

Not Shown

1шт.

8

21749

INSERT

header 10 port

2шт.

Not Shown

1шт.

8

432590A1

INSERT

header 11 port

2шт.

Not Shown

1шт.

8

22073

INSERT

header 12 port

2шт.

Not Shown

1шт.

9

22104

LID

ez flow header with seal

2шт.

Includes gasket 21754

1шт.

10

507586

HOSE CLAMP,20.6mm - 44.4mm, Worm Gear

1шт.

11

419998A1

CABLE

estane header securing

2шт.

12

22602

SPECIAL RING

1 1/16" id

2шт.

13

GP-103

ELBOW

secondary standard

2шт.

Hose- 2.5 PVC Clear Spiral

1шт.

Shown

1шт.

13

GP-102

STAND

elbow secondary high abrasion

2шт.

Hose- 2.5 PVC Clear Spiral

1шт.

Not Shown

1шт.

14

REF

INSTRUCTION

For 6 port header, use 12 port header with 6 plugs

2шт.

14

GP-107

INSERT

header 7 port ez flow glued

2шт.

Not Shown

1шт.

14

GP-108

INSERT

header 8 port ez flow glued

2шт.

Shown

1шт.

14

GP-109

INSERT

header 9 port ez flow glued

2шт.

Not Shown

1шт.

14

GP-110

INSERT

header 10 port ez flow glued

2шт.

Not Shown

1шт.

14

GP-111

INSERT

header 11 port ez flow glued

2шт.

Not Shown

1шт.

14

GP-112

INSERT

header 12 port ez flow glued

2шт.

Not Shown

1шт.

15

GP-253

INSERT

nose header

2шт.

16

GP-284

MOUNTING PARTS

double shoot elbow

1шт.

17

VF-535

STAND

header - long

1шт.

18

1030623

U-BOLT

us 1/2"-13 6 1/16" w x 5" d 2" thread

1шт.

19

312992A1

BRACKET

secondary manifold

1шт.

20

87530607

NUT

1/2"-13, GB

2шт.

21

425667A1

BEAM

wing front RH

1шт.

31

87401070

PLUG

ez flow header

6шт.

32

214-1444

HOSE CLAMP,58.6mm - 82.5mm

2шт.

100

86992286

HOSE,2.50" ID x 100.00'

Spiral PVC Black Order Multiples of 100 Feet

1шт.

100

86992913

HOSE

1" Polyback 9% EVA, Order in Multiples of 100 Feet

1шт.

100

86993485

HOSE,1.00" ID

Flex Black

1шт.

For 7, 8, 9, 10, 11 and 12 Ports

1шт.

100

86993485

HOSE,1.00" ID

Flex Black

1шт.

Выбрано товаров: 72
