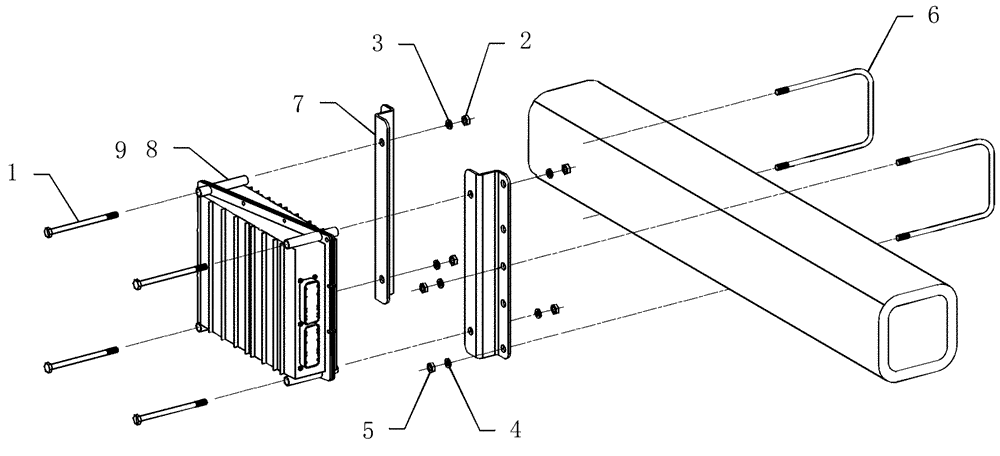

Запчасти Case IH 2230 (55.640.08) - FLOW REMOTE MODULE AND MOUNTING (55) - ELECTRICAL SYSTEMS

1

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

4шт.

2

7770

NUT,Hex, 1/4 - 20, Cl 5

4шт.

3

80682

LOCK WASHER,1/4"

4шт.

4

80681

LOCK WASHER,5/16"

4шт.

5

9635082

NUT,5/16" - 18, Gr 5

4шт.

6

419990A1

U-BOLT

us 5/16" x 4 1/8" w x 4 3/4" d 3/4" thread

2шт.

7

87415392

BRACKET

FlexControl remote mount

2шт.

8

84388675

ECU

1шт.

84388675R

REMAN-INSTR CLUSTER

2230 (7/08-)

1шт.

84388675C

CORE-CLUSTER, INSTR

Return Number

1шт.

9

87504889

ECU

flow 167 pin fc, Years: -01-JUL-08

1шт.

If this ECU will be used in an ISOBUS system, programming is required before use, make arrangements for programming if drop shipping.

1шт.

This ECU does not contain ISOBUS software and **MAY** have to be programmed before use.

1шт.

If this ECU will be used in an AgriCheck system, no programming is required.

1шт.

87659833R

REMAN ELECT CONTROL

2230 (7/08-); Reman for New P/N 87504889

1шт.

87659833C

CORE-ELECTRONIC CONT

Return Number

1шт.

9

87659833

MODULE

flow 167 pin, IB, Start Year: 01-JUL-08

1шт.

87659833R

REMAN ELECT CONTROL

2230 (7/08-)

1шт.

87659833C

CORE-ELECTRONIC CONT

Return Number

1шт.
