Запчасти Case IH 2230 (55.424.01) - SENSORS (55) - ELECTRICAL SYSTEMS

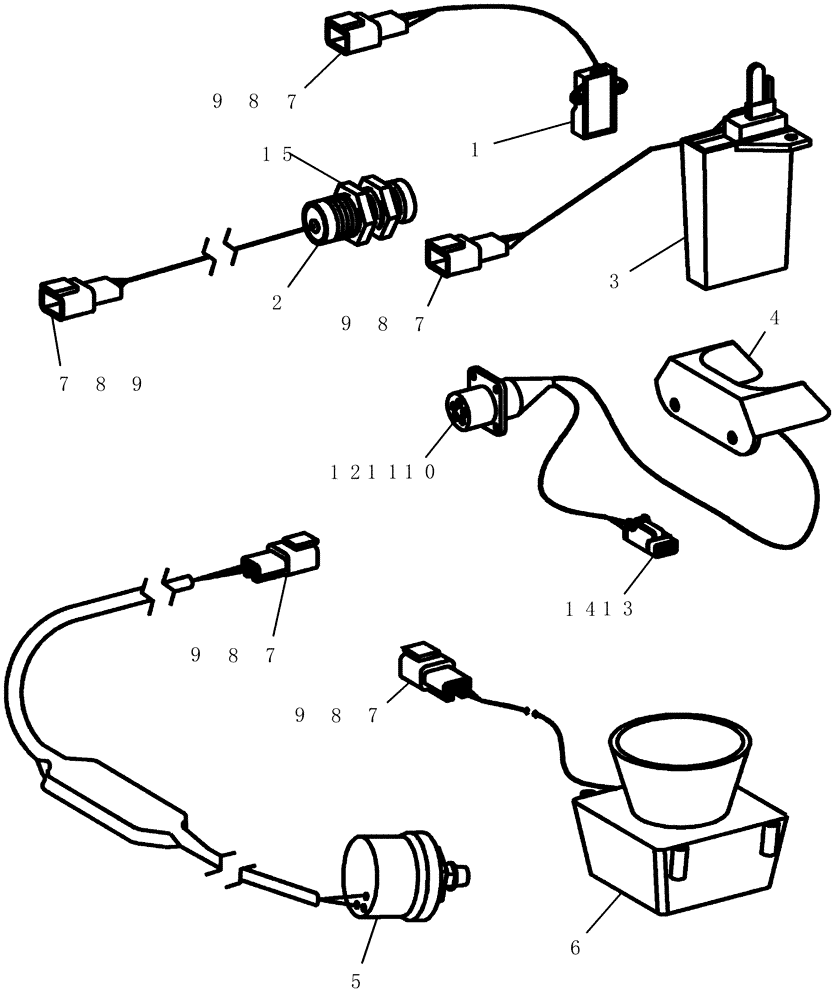

Схема запчастей Case IH 2230 - (55.424.01) - SENSORS (55) - ELECTRICAL SYSTEMS
10
8
7
13
8
4
2
6
9
9
14
5
9
8
12
7
1
8
15
9
7
8
7
9
11
7
3

Артикул

Название

Примечание

Количество

1

13919

SENSOR

shaft

1шт.

2

13976

SENSOR

shaft

1шт.

3

13637V2

SENSOR

air flow

1шт.

4

87508154

KIT

Optical Bin Level

1шт.

5

51200013

SENSOR

hydraulic pressure

1шт.

6

14868V2

SENSOR

sonar bin level 0.3m cable

1шт.

7

280448A1

STOP LOCK

3c receptacle connector

1шт.

8

87696545

CONTACT HOUSING,Male, 3 Pole

cab plastic rcp 3c

1шт.

9

223950A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

18-20awg copper nickel plated

3шт.

10

225222C1

ELEC CONNECTOR,Male, 5 Pin

plastic 5c receptacle fl

1шт.

11

225348C1

ELEC. TERMINAL PIN,Male, 0.75 - 2.00 mm2

pin 16-18awg

4шт.

12

84068583

PLUG,12 - 16 Ga, White

connector cavity white plastic

1шт.

13

87696551

CONTACT HOUSING,Female, 3 Pole

cab plastic plug 3c

1шт.

14

223952A1

ELEC. TERMINAL PIN,Nickel, 0.8 - 1.0mm

socket 18-20awg

3шт.

15

425045A1

NUT

7/8"-20 x 1/4" thick

2шт.

100

8393

TESTER

5v & 12v sensors

1шт.

100

13889V2

TOOL

signal simulator unit, digital

1шт.

Выбрано товаров: 17
