(55.404.08) - TRANSPORT BAR AMBER LIGHT EXTENSION

Запчасти Case IH 2230 (55.404.08) - TRANSPORT BAR AMBER LIGHT EXTENSION (55) - ELECTRICAL SYSTEMS

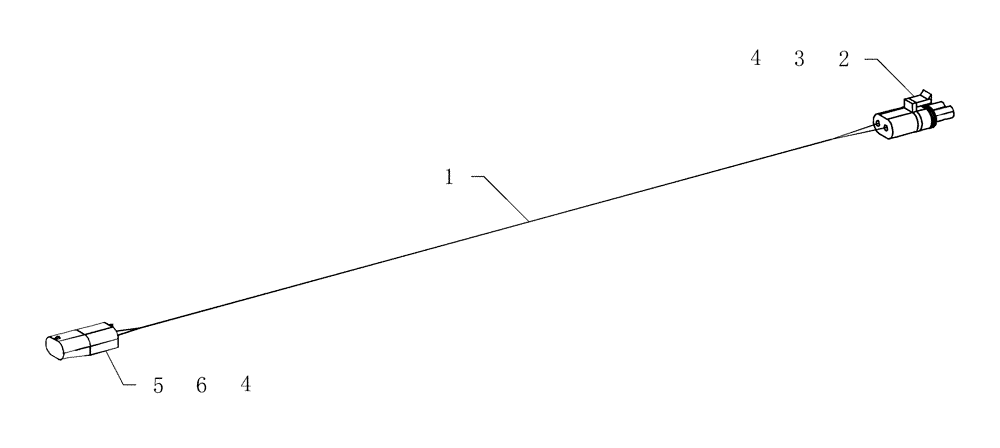

Схема запчастей Case IH 2230 - (55.404.08) - TRANSPORT BAR AMBER LIGHT EXTENSION (55) - ELECTRICAL SYSTEMS
4
6
3
4
2
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

425270A1

HARNESS

jumper 3 m x 2c Packard

1шт.

2

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

1шт.

3

225123C1

TERMINAL CONNECTOR,Tin, 0.8mm

socket 18-20awg

2шт.

4

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

5

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

1шт.

6

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

2шт.
