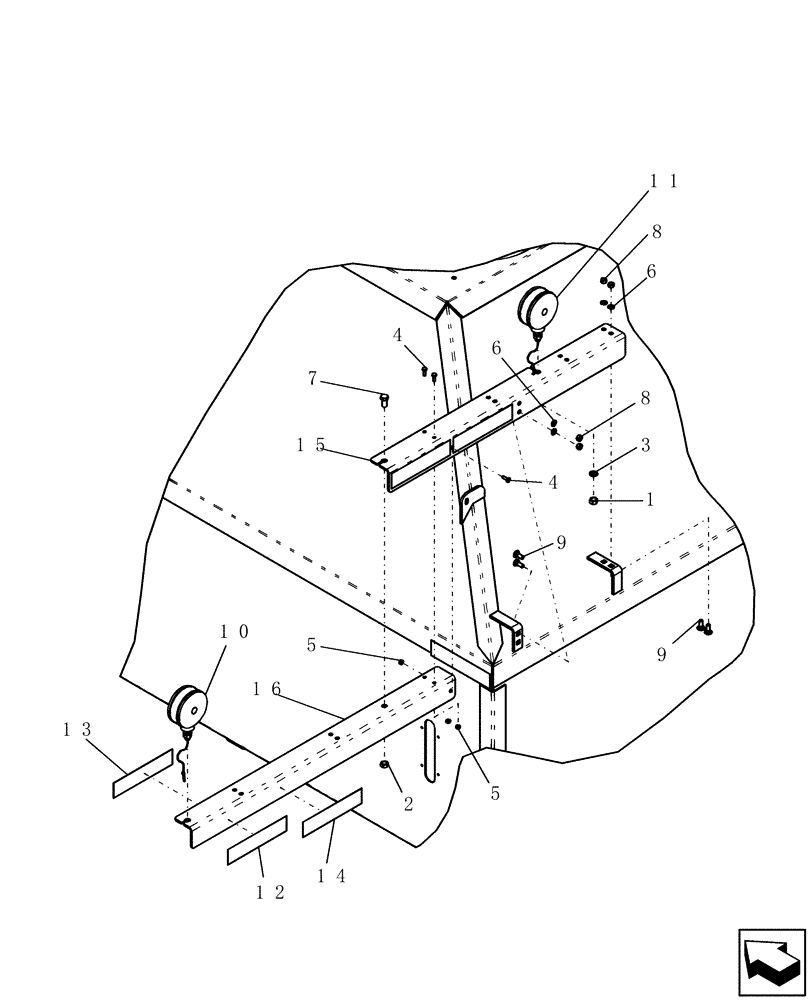

Запчасти Case IH 2230 (55.404.07) - TRANSPORT LIGHTING (55) - ELECTRICAL SYSTEMS

1

280431

NUT,1/2"-13, G5

3шт.

2

86992215

LOCK NUT,1/2"-13, GC

2шт.

3

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

4

9707580

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

6шт.

5

280129

NUT,1/4"-20

6шт.

6

80680

LOCK WASHER,3/8 0.381 CST ZND

8шт.

7

87909

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

8

9628503

NUT,3/8"-16, G5

8шт.

9

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

8шт.

10

87564157

WARNING LIGHT

assembly amber

1шт.

11

51200040

LIGHT

assy. stop tail/signal red

1шт.

Includes 6815 and 86537133

1шт.

11

6815

LENS

red

1шт.

11

86537133

BULB,C6, #1157, 12.8V

1шт.

11

84129422

BULB

Double Contact, 1156DC

1шт.

12

22902

DECAL

retroreflective red 2" x 9"

4шт.

13

22903

DECAL

retroreflective amber 2" x 9"

8шт.

14

51200094

DECAL

fluorescent red orange

4шт.

15

87446015

BAR

transport light LH

1шт.

16

87446524

EXTENSION

lt transport light

1шт.

15

87446014

BAR

transport light RH

1шт.

Not Shown

1шт.

16

87446525

EXTENSION

rt transport light

1шт.

Not Shown

1шт.
