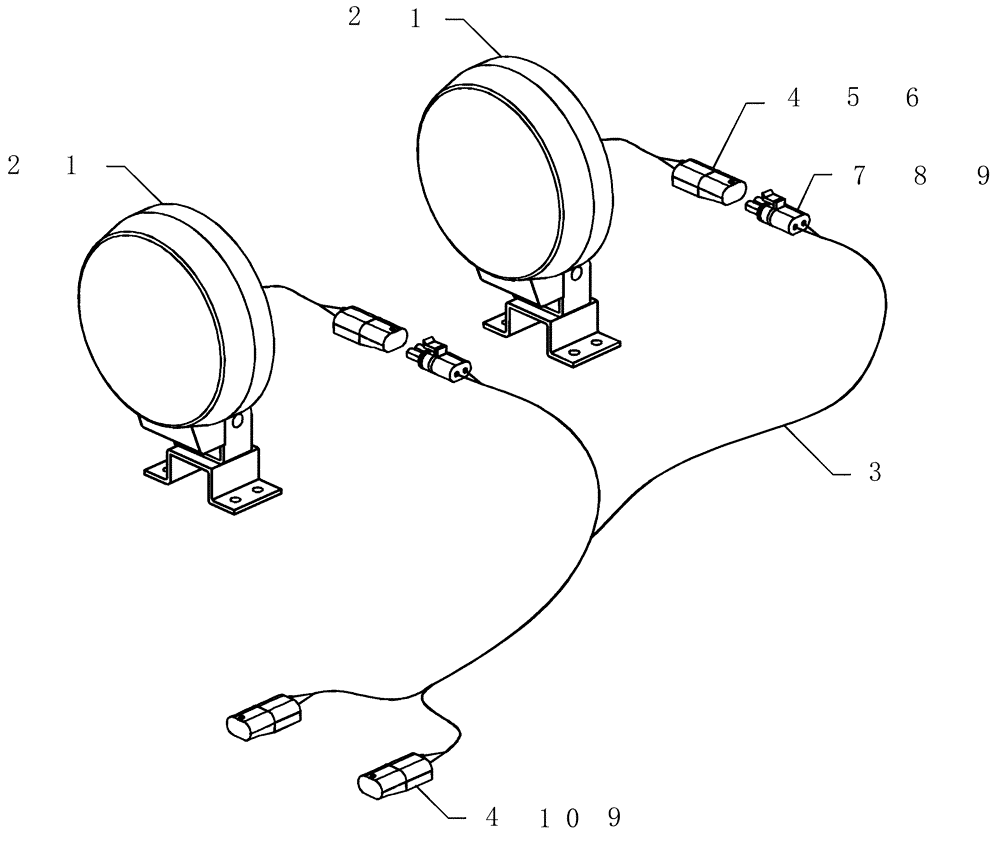

Запчасти Case IH 2230 (55.404.04) - WORK LIGHTING (55) - ELECTRICAL SYSTEMS

1

425060A1

LIGHT

work 100w pilot

2шт.

2

87506447

BULB

light, 100 watt

2шт.

3

419970A1

HARNESS

work lights

1шт.

4

87692877

MULTIPOLE CONNECTOR,Male, 2 Cavities

plastic 2c receptacle

4шт.

5

225120C1

TERMINAL CONNECTOR,Tin, 0.8mm

18-20awg

4шт.

6

225124C1

SEAL,2 - 2.9 mm2

seal grn 2.8-2 omm

4шт.

7

87692855

CONTACT HOUSING,Male, 2 Cavities

plastic 2c plug

2шт.

8

225122C1

TERMINAL CONNECTOR,Tin, 1.0 - 2.0mm

socket 14-16awg

4шт.

9

225125C1

SEAL

Connector Grey 3.49 - 2.81 mm

8шт.

10

225119C1

TERMINAL

14-16awg

4шт.
