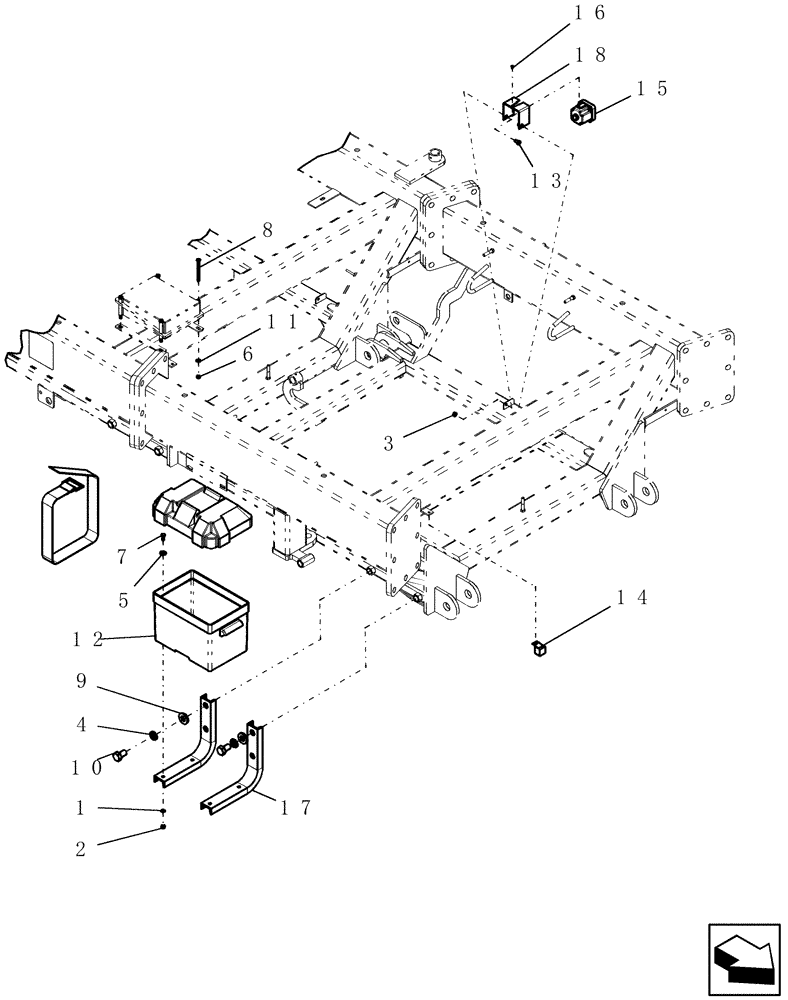

Запчасти Case IH 2230 (55.301.03) - ADX3260 VR BATTERY AND SWITCH (55) - ELECTRICAL SYSTEMS

1

80681

LOCK WASHER,5/16"

4шт.

2

9635082

NUT,5/16" - 18, Gr 5

4шт.

3

281010

LOCK NUT,7/8"-14, GC

2шт.

4

87340

LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND

2шт.

5

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

4шт.

6

280129

NUT,1/4"-20

4шт.

7

87872

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

8

280492

BOLT,Hex, 1/4" - 20 x 3 1/2", Gr 5

4шт.

9

3928

WASHER

3/4" id 1 5/8" 1/4" pln

2шт.

10

88691

BOLT,Hex, 3/4" - 10 x 1 1/4", Gr 5, Full Thd

2шт.

11

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

4шт.

12

51200136

BATTERY BOX

with strap and lid

1шт.

12

B2472W

WET BATTERY

US Only - Not Illustrated

1шт.

12

CC2472W

WET BATTERY

Canada Only - Not Illustrated

1шт.

13

9627874

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd

2шт.

14

9966

RELAY

electrical, 12 volt

1шт.

15

13924

SWITCH

meter on/off

1шт.

16

21304

SELF-TAP SCREW

#6-32 x 5/16"

1шт.

17

GI-206

TRAY

mount, battery box

2шт.

18

GI-309

BRACKET

mount, switch unit - single

1шт.
