(55.100.27) - ELECTRICAL HARNESS 4WD ADAPTER EXTENSION, 84197993

Запчасти Case IH 2230 (55.100.27) - ELECTRICAL HARNESS 4WD ADAPTER EXTENSION, 84197993 (55) - ELECTRICAL SYSTEMS

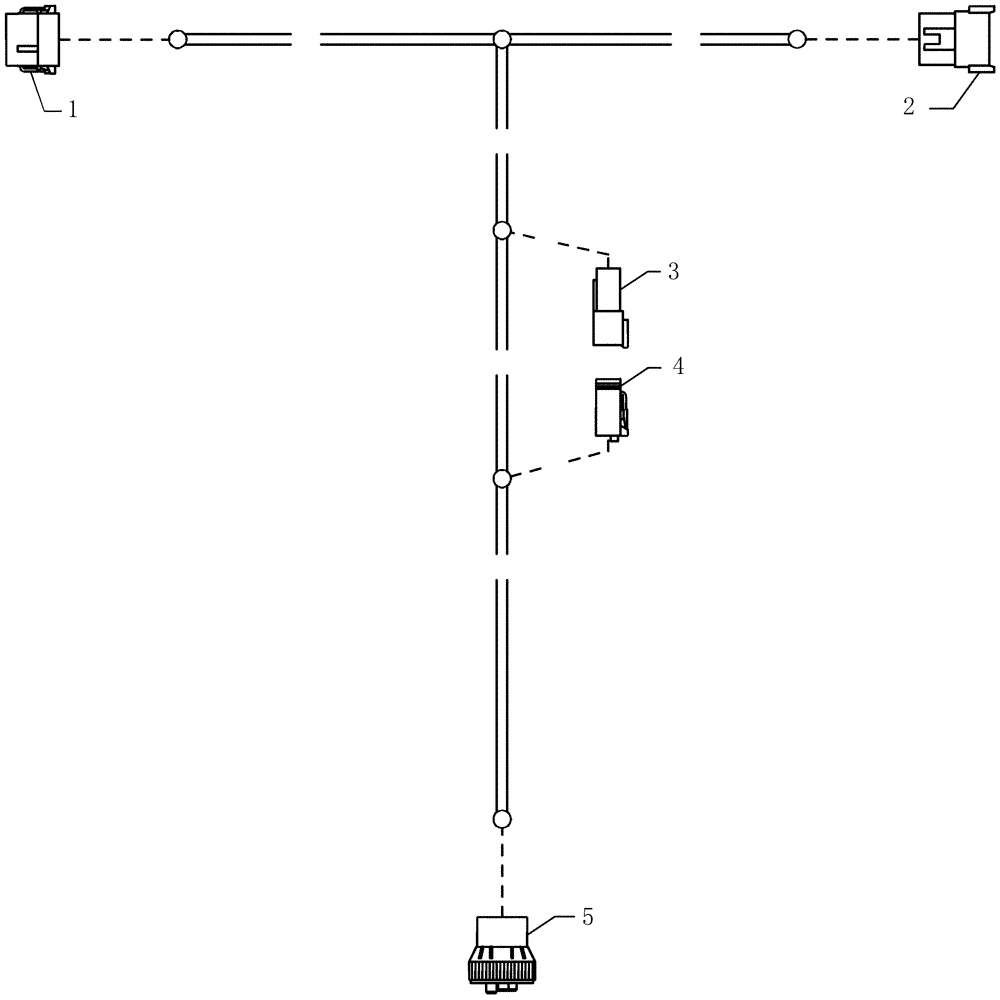

Схема запчастей Case IH 2230 - (55.100.27) - ELECTRICAL HARNESS 4WD ADAPTER EXTENSION, 84197993 (55) - ELECTRICAL SYSTEMS
1
5
3
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

0

84197993

HARNESS

ISO 4WD ASU Adapter

1шт.

1

223679A1

MULTIPOLE CONNECTOR,Female, 12 Pin

Deutsch 12-Way DTM Plug, Black

1шт.

2

223682A1

ELEC CONNECTOR

12 Pin

1шт.

3

87694154

CONTACT HOUSING,Male, 4 Pole

Deutsch DT4

1шт.

4

86622300

ELEC CONNECTOR

4-cav Plug DT Series

1шт.

5

225224C1

ELEC CONNECTOR,Female, 5 Pin

plastic 5c plug

1шт.
