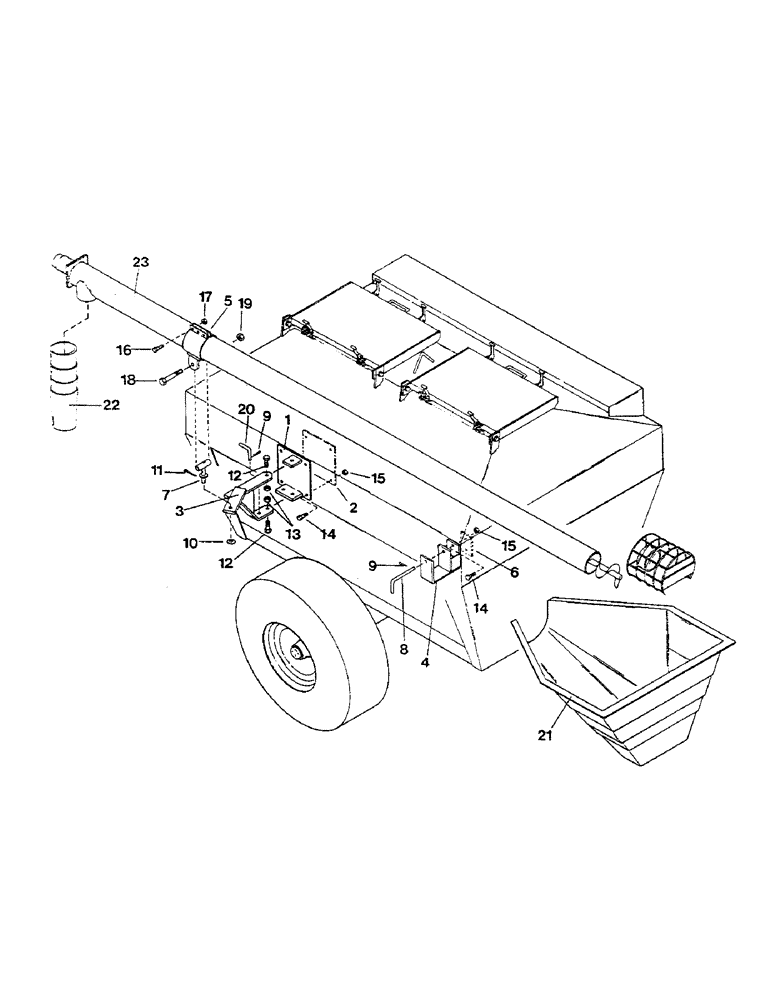

Запчасти Case IH AS1002 (71) - AUGER ASSEMBLY (77) - SEEDING/PLANTING

1

1016971

BOLTING PLATE

1шт.

2

1016978

PLATE

1шт.

3

1016972

AUGER BRACKET

1шт.

4

1016970

AUGER CRADLE

1шт.

5

1016974

COLLAR ASSY.

AUGER COLLAR

1шт.

6

1017024

PLATE

1шт.

7

1016973

PIVOT TUBE ASSEMBLY

1шт.

8

1016995

PIN, 1/2" x 11-1/2"

1шт.

9

1015033

PIN

HAIR PIN COTTER

2шт.

10

1016663

WASHER

flat 1" ID x 2-1/2" OD

1шт.

11

1016727

SPLIT PIN/SAFETY PIN

PIN, cotter

1шт.

12

1012060

BOLT

BOLT, hex 3/4" x 2"

2шт.

13

1017000

LOCK NUT

LOCKNUT, hex 3/4"

2шт.

14

1011607

BOLT

BOLT, hex, 1/2" x 1-1/2"

6шт.

15

1016531

LOCK NUT

LOCKNUT, hex 1/2"

6шт.

16

1011725

BOLT

BOLT, hex 3/8" x 2"

3шт.

17

1016999

LOCK NUT

LOCKNUT, hex 3/8"

3шт.

18

1016998

BOLT

BOLT, hex 1" x 6-1/2"

1шт.

19

1016969

LOCK NUT

LOCKNUT, 1"

1шт.

20

1017009

PIN

1шт.

21

1017039

HOPPER

auger

1шт.

22

1017040

HOSE,56.00"

- Spout, Auger 56.00"

1шт.

23

AUGER ASSEMBLY

1шт.
