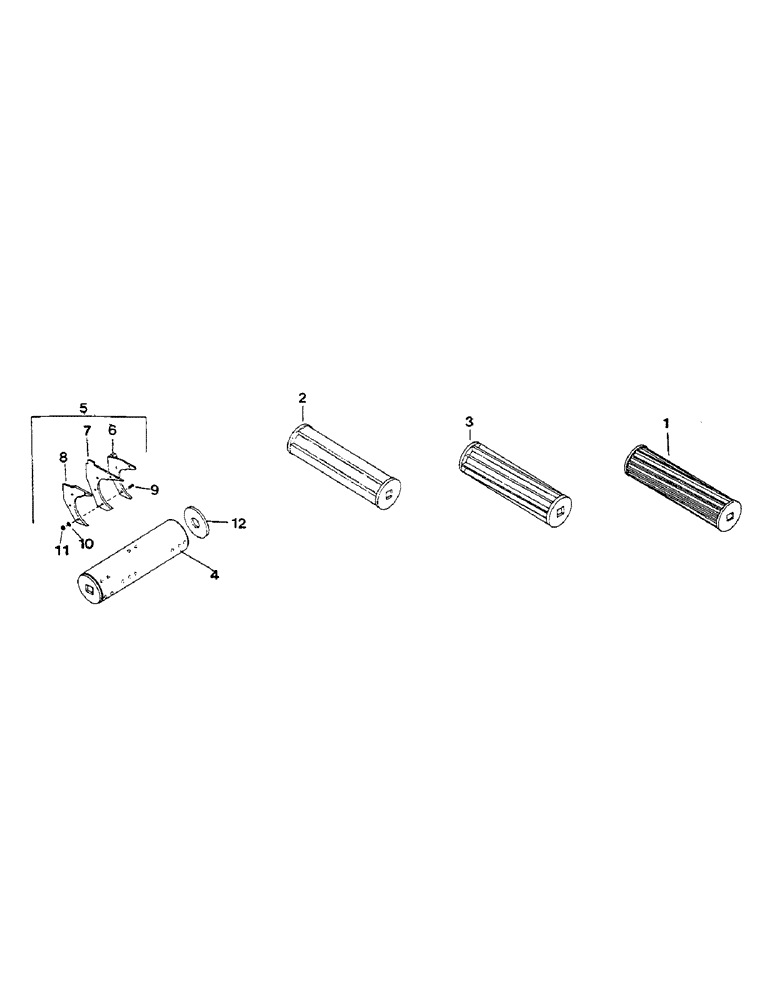

Запчасти Case IH AS1002 (61) - ROLL DRIVE ASSEMBLY (77) - SEEDING/PLANTING

1

1012608

ROLL

DRIVE ASSEMBLY (Standard)

2шт.

2

1014952

X

ROLL DRIVE ASSEMBLY (Sunflowers)

2шт.

3

1013856

ROLL

DRIVE ASSEMBLY (High capacity)

2шт.

4

1015486

X

ROLL DRIVE ASSEMBLY (Rape seed)

2шт.

5

1015485

PLATE

AND SEAL ASSEMBLY, (Includes 6-11)

2шт.

6

1015481

PLATE

FLOW CONTROL PLATE

1шт.

7

1015480

RUBBER SEAL

- rubber

1шт.

8

1015479

LARGE PLATE

PLATE

1шт.

9

1015482

SCREW

#6 x 7/8" (Pan Head)

4шт.

10

1015484

LOCK WASHER

LOCK WASHER #6 (Internal Tooth)

4шт.

11

1015483

NUT

hex, #6

4шт.

12

1015623

DISC

thrust (Polyethylene)

1шт.

1018550

KIT

RAPE SEED KIT (Includes 4, 5, & 12)

1шт.

No longer available must order PL2852 for 20' & 37" Drill or PL2853 for 40' & 60" drill.

1шт.
