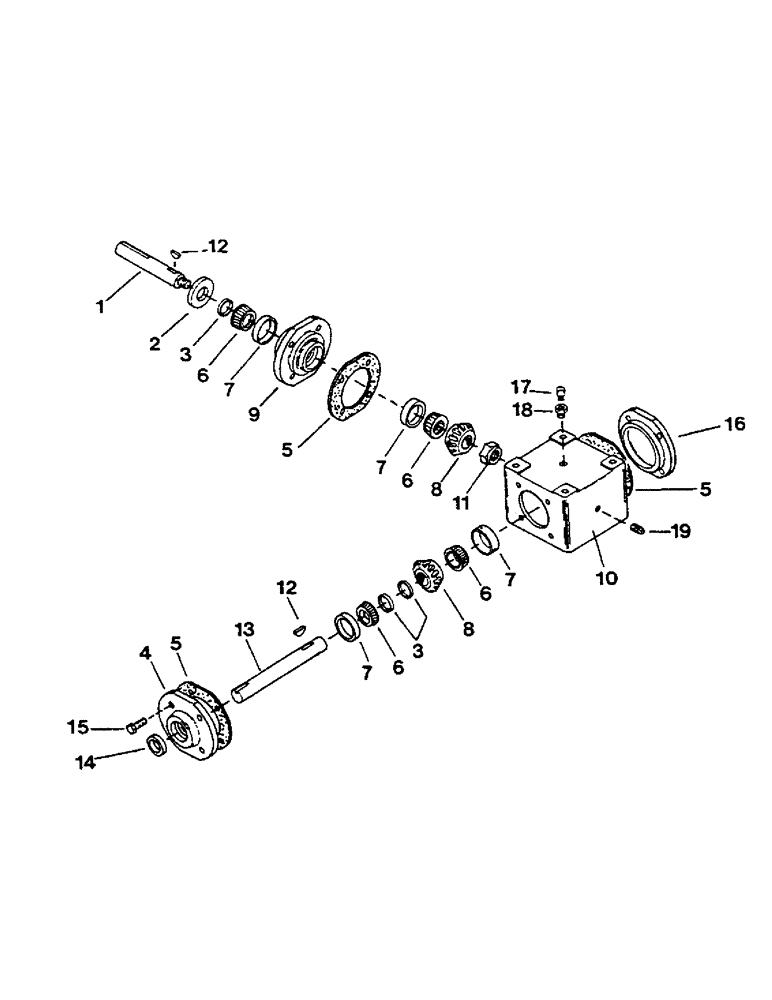

Запчасти Case IH AS1002 (56) - 100908 GEARBOX PARTS (77) - SEEDING/PLANTING

1

0100936

SHAFT

pinion

1шт.

2

0100939

SEAL

pinion shaft

1шт.

3

0100941

RING

retaining

3шт.

4

100932

CAP, open end

2шт.

5

100943

MANUAL, OPERATORS

GASKET

3шт.

This is a gasket kit with 3 types of gaskets and a total of 15 gaskets. NAPO TECH. NOTE

1шт.

6

100938

CONE

bearing

4шт.

7

100937

CUP

bearing

4шт.

8

100934

GEAR

straight bevel

2шт.

9

100933

HOUSING, pinion

1шт.

10

100931

SUPPORT

HOUSING, gearbox

1шт.

11

100942

TUBE

pinion

1шт.

12

16935

KEY, Woodruff

2шт.

13

0100935

SHAFT

cross

1шт.

14

0100940

SEAL

cross shaft

1шт.

15

1011597

BOLT

BOLT

12шт.

16

100944

CAP, closed end

1шт.

17

100928

SPACER

PLUG, pressure relief

1шт.

18

17427

BUSHING, reducing

1шт.

19

NLS

NO LONGER SERVICED

PLUG, pipe

1шт.
