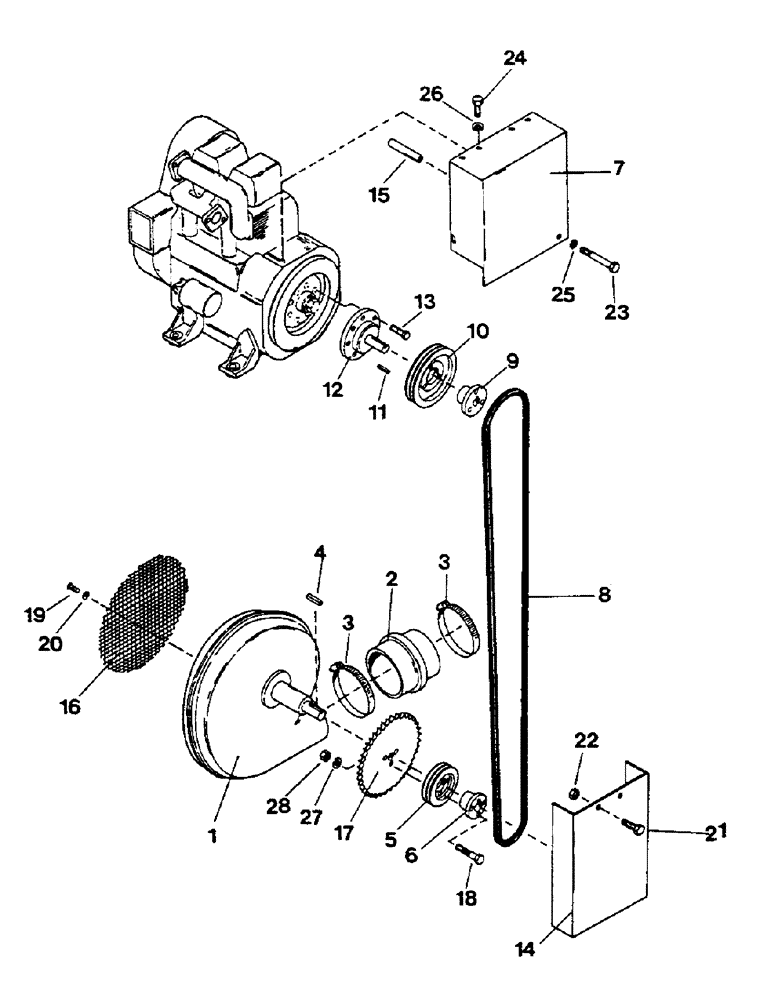

Запчасти Case IH AS1002 (50) - BLOWER MOUNTING GROUP, MODEL AS1502 (77) - SEEDING/PLANTING

1

1014980

BLOWER

ASSEMBLY (Includes 16-20)

1шт.

1016236

BLOWER

(See breakdown page 49)

1шт.

2

1014892

HOSE,5.00" ID, 6.00" ID x 6.00"

- Reducer 5.00" ID, 6.00" ID x 6.00"

1шт.

3

1012455

CLAMP

2шт.

4

1014870

KEY

1шт.

5

1014865

SHEAVE

- driven

1шт.

6

1014868

HUB

1шт.

7

1014878

BELT

GUARD, belt

1шт.

8

1016417

SET OF BELTS,0.38" W

(One matched pair) 0.38" W

1шт.

9

1012343

HUB

1шт.

10

1014863

SHEAVE

- driver, 6.90" O.D.

1шт.

1014864

SHEAVE

- driver, 8.00" O.D. optional

1шт.

11

1012975

KEY

1шт.

12

1012363

SHAFT

STUBSHAFT - drive

1шт.

13

1012384

BOLT

1шт.

14

1014879

BELT

GUARD, belt

1шт.

15

1014884

SPACER, guard

1шт.

16

1014962

SCREEN

1шт.

17

1016120

SPROCKET ASSY.

SPROCKET

1шт.

18

1016211

BOLT

BOLT, hex, 1/4" x 2"

3шт.

19

1013243

BOLT

BOLT, 1/4" x 1/2"

6шт.

20

1014977

BLANK-OFF PLUG

SLUG

6шт.

21

1011602

BOLT

BOLT, 3/8" x 1 1/2"

2шт.

22

280136

NUT,3/8"-16, G8

2шт.

23

1016422

BOLT, metric, 10mm x 130mm

1шт.

24

1015084

BOLT

metric, 8mm x 16mm

2шт.

25

1013043

WASHER

2шт.

26

1011582

WASHER

1шт.

27

1013242

WASHER, LOCK

LOCKWASHER, 1/4"

3шт.

28

1011587

NUT,1/4"-20, G5

hex, 1/4"

3шт.
