Запчасти Case IH AS1002 (32) - MODEL AS 1002 DRIVE TRAIN (77) - SEEDING/PLANTING

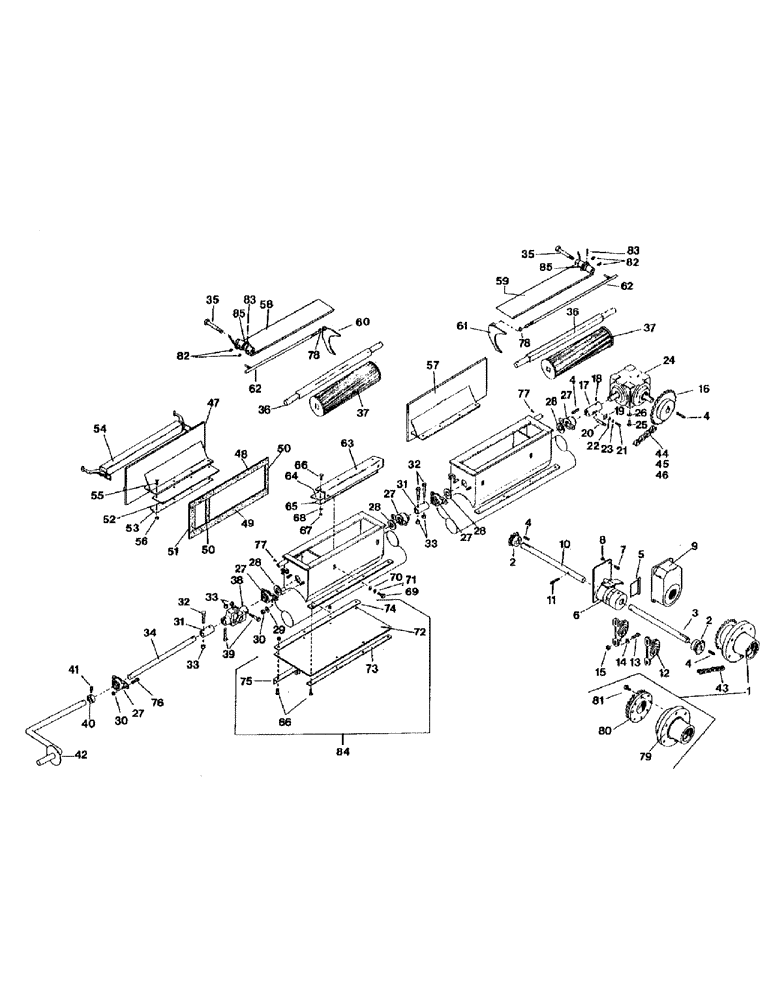

Схема запчастей Case IH AS1002 - (32) - MODEL AS 1002 DRIVE TRAIN (77) - SEEDING/PLANTING
7
32
58
4
8
85
66
11
4
77
75
70
81
27
3
40
57
27
26
17
37
35
66
56
76
42
85
4
47
43
12
28
67
18
14
54
33
52
46
74
27
19
82
50
39
13
44
9
10
69
30
34
45
59
62
28
21
32
79
83
1
30
73
31
23
27
25
55
77
71
15
4
50
53
20
27
72
83
80
62
16
33
68
84
64
22
6
33
31
2
2
41
65
37
38
78
51
48
24
61
63
82
60
78
36
35
28
28
29
36
49
5

Артикул

Название

Примечание

Количество

1

1013712

HUB ASSY.

HUB & SPROCKET ASSEMBLY (Ref. 79,80, 81)

1шт.

2

1012976

DRIVE SPROCKET

SPROCKET, 10 tooth

2шт.

3

1012933

BAR

SHAFT, sprocket drive, 1" dia. x 14 3/8"

1шт.

4

1012975

KEY

1/4" x 1/4" x 1 1/4"

4шт.

5

1013225

PIN

LYNCH PIN

1шт.

6

1015055

CLUTCH

1шт.

ref: 6 no longer available - order TPL1188 kit. NAPO TECH NOTE

1шт.

7

1013045

BOLT

shoulder 5/16" x 1/2"

1шт.

8

1011575

NUT,5/16"-18, G5

hex, 5/16"

1шт.

9

1014236

DUST COVER, clutch

1шт.

10

1013559

SHAFT, sprocket drive, 1" dia. x 17-13/16"

1шт.

11

1012930

PIN

ROLL PIN

1шт.

12

1012559

HOUSING ASSY.

PILLOW BLOCK

4шт.

13

1011600

BOLT,Hex, 3/8" - 16 x 1", Gr 5

BOLT, hex, 3/8" x 1"

8шт.

14

1011583

WASHER

flat, 3/8"

8шт.

15

280136

NUT,3/8"-16, G8

8шт.

16

1012977

SPROCKET ASSY.

SPROCKET, gearbox, 26 tooth

1шт.

17

1015104

COUPLING

COUPLER, gearbox

1шт.

18

1013044

SET SCREW

1/4" x 1/4"

1шт.

19

1013221

STRIP

CLIP, shear pin

1шт.

20

1013218

PIN

Shear

1шт.

21

1013243

BOLT

BOLT, hex, 1/4" x 1/2"

1шт.

22

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

1шт.

23

1013297

LOCK WASHER

LOCKWASHER, 1/4"

1шт.

24

1014913

GEARBOX (See breakdown page 35)

1шт.

25

1011599

BOLT

BOLT, hex, 3/8" x 3/4", Gr. 5

4шт.

26

1013043

WASHER

flat, 3/8"

4шт.

27

1012986

BEARING ASSY,25.4mm ID

BEARING, flange

5шт.

28

1012978

SEAL

WASHER, rubber, 1" dia. x 2" O.D.

4шт.

29

1011583

WASHER

flat

12шт.

30

280136

NUT,3/8"-16, G8

12шт.

31

1012996

TUBE,1.03" ID, 1.5" OD

COUPLER, cup to shaft

2шт.

32

1011725

BOLT

BOLT, hex, 3/8" x 2"

4шт.

33

231-4246

LOCK NUT,3/8"-16, GB

NUT, LOCK, 3/8"-16, GB

6шт.

34

1015034

SHAFT, 1" dia. x 20 1/4"

1шт.

35

1013092

BOLT

2шт.

36

1015011

SHAFT

roll drive

2шт.

37

1012608

ROLL

DRIVE ASSEMBLY

2шт.

38

1013301

JOINT

UNIVERSAL JOINT

1шт.

39

1015174

BOLT

BOLT, hex, 3/8" x 2 1/2"

2шт.

40

1013924

COLLAR

1шт.

41

1013395

BOLT

BOLT, socket head, 5/16"

1шт.

42

1015030

CRANK ASSEMBLY

1шт.

43

1012555

CHAIN (AG)

CHAIN, #60 x 32" pitches

1шт.

44

1015049

CHAIN (AG)

CHAIN, #60 x 79" pitches

1шт.

45

1012557

LINK

CONNECTING LINK #60

2шт.

46

1015050

LINK

HALF LINK, #60

1шт.

47

1016218

COVER ASSY

FRONT COVER AND WIPER ASSEMBLY (Ref. 47-53, 55, 56)

1шт.

1016215

COVER

FRONT COVER

1шт.

48

1016221

GASKET

2шт.

49

1016222

GASKET

2шт.

50

1016223

GASKET

GASKET

4шт.

51

1016224

GASKET

2шт.

52

1013129

WINDSHIELD WIPER

WIPER, rubber

2шт.

53

1013126

ANGLE

hold

2шт.

54

1016213

TOGGLE

ASSEMBLY

2шт.

55

1013244

SCREW

flat head, #10

8шт.

56

1011588

NUT,#10-24

hex, #10

8шт.

57

1016220

COVER ASSY

REAR COVER & WIPER ASSEMBLY (Ref. 48-53, 55, 56)

1шт.

1016217

COVER ASSY

REAR COVER

1шт.

58

1015082

DOOR ASSY.

FRONT METERING DOOR

1шт.

59

1015083

DOOR ASSY.

REAR METERING DOOR

1шт.

60

1015678

PLATE

FRONT FLOW CONTROL

1шт.

61

1015679

PLATE

REAR FLOW CONTROL

1шт.

62

1015419

TIE-ROD

ROD ASSEMBLY

2шт.

63

1012955

DEFLECTOR

PLATE

2шт.

64

1013128

DEFLECTOR

RUBBER DEFLECTOR

2шт.

65

1013127

STRIP

PLATE

2шт.

66

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, hex, 1/4" x 3/4", Gr. 5

24шт.

67

1013240

LOCK NUT,1/4"-20, GB

LOCKNUT, hex, 1/4"

24шт.

68

87361

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

flat

8шт.

69

1011599

BOLT

BOLT, hex, 3/8" x 3/4"

4шт.

70

1011828

WASHER

4шт.

71

1011586

LOCK WASHER

LOCKWASHER, 3/8"

4шт.

72

1013176

COVER

CLEANOUT DOOR

2шт.

73

1013177

SUPPORT

STRIP, narrow

2шт.

74

1013178

STRIP

wide

2шт.

75

1013284

ANGLE

LATCH ANGLE

2шт.

76

1011601

BOLT

BOLT, hex, 3/8" x 1 1/4"

2шт.

77

1013895

THUMB SCREW

THUMBSCREW

2шт.

78

1011591

NUT,Jam, 1/2"-13, G5

hex, 1/2" - jam

2шт.

79

1013524

HUB ASSY.

HUB

1шт.

80

1013713

FLANGE ASSY

FLANGE AND SPROCKET

1шт.

81

1011595

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

BOLT, hex

8шт.

82

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

NIPPLE, LUBE, 1/4"-28 x .52" lg

4шт.

83

100343

ROLL PIN

2шт.

84

1013283

DOOR ASSY.

CLEANOUT DOOR ASSEMBLY (Includes 66, 72, 73, 74, 75)

2шт.

85

1013346

PINION

2шт.

Выбрано товаров: 88
