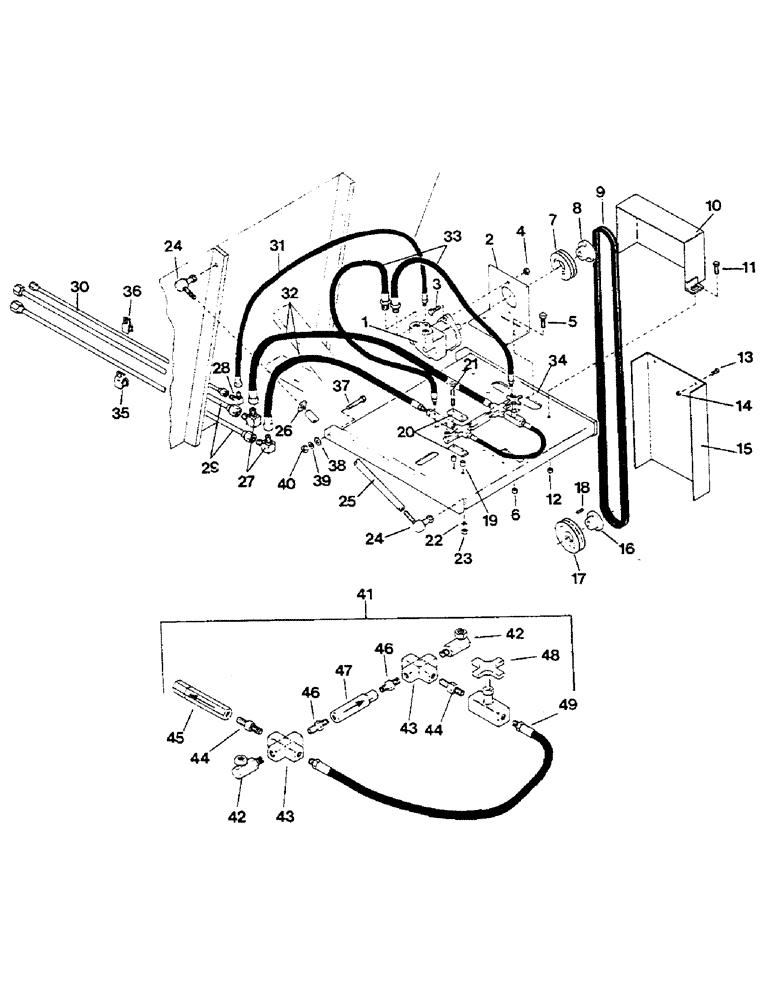

Запчасти Case IH AS1002 (62) - HYDRAULIC MOTOR ASSEMBLY, OPEN (35) - HYDRAULIC SYSTEMS

1

1013988

MOTOR, HYDRAULIC

(Volvo Model F-11-10)

1шт.

1013988R

REMAN-HYD MOTOR

AS1002, AS1502

1шт.

1013988C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

312672A1

SEAL KIT

Seal Kit For 1013988

1шт.

2

1016351

PLATE, motor mounting

1шт.

3

1011607

BOLT

BOLT, hex, 1/2" x 1 1/2"

2шт.

4

231-1448

NUT,1/2"-13, GB

hex, 1/2" (Lock)

2шт.

5

1014349

BOLT

BOLT, hex, 5/8" x 1 1/2"

2шт.

6

231-14410

NUT,5/8"-11, GB

NUT, LOCK, 5/8"-11, GB

2шт.

7

1015124

SHEAVE

(Driver)

1шт.

8

1015125

HUB

1шт.

9

1015993

SET OF BELTS,0.38" W

Side (One matched pair) 0.38" W

1шт.

10

1015116

GUARD ASSEMBLY, belt

1шт.

11

1011909

BOLT

BOLT, hex, 5/8" x 1 1/4"

2шт.

12

1011578

NUT,5/8"-11, G5

hex, 5/8"

2шт.

13

1011602

BOLT

BOLT, hex, 3/8" x 1 1/2"

2шт.

14

280136

NUT,3/8"-16, G8

2шт.

15

1014879

BELT

GUARD, belt

1шт.

16

1014868

HUB

1шт.

17

1014865

SHEAVE

(Driven)

1шт.

18

1014870

KEY

square, 3/16" x 1 1/4"

1шт.

19

1014982

TUBE,0.406" ID, 0.625" OD

BOSS, 5/8" OD x 13/32" ID x 1/2"

4шт.

20

1014983

BRACKET

PLATE

4шт.

21

1013239

BOLT

BOLT, hex, 3/8" x 3"

4шт.

22

1011586

LOCK WASHER

LOCKWASHER, 3/8"

4шт.

23

280136

NUT,3/8"-16, G8

4шт.

24

1012196

END

TIE ROD END, LH

2шт.

1012197

END

TIE ROD END, RH

2шт.

25

1012200

ROD

TIE ROD

2шт.

26

CON1013289

NUT,Sq, Jam, 11/16"-18

jam, RH

2шт.

27

1015131

ELBOW

ADAPTOR, 1-1/16", 37 degree flare

2шт.

28

1015130

ELBOW

ADAPTER, 3/4", 37 degree flare

1шт.

29

1015025

HYD TUBE,19.1 mm Diameter, 3048 mm Length

TUBE ASSEMBLY, 3/4" tube (1502 Model)

2шт.

1015020

TUBE ASSEMBLY, 3/4" tube (1002 Model)

2шт.

30

1015026

HYD TUBE,12.7 mm Diameter, 3048 mm Length

TUBE ASSEMBLY, 1/2" tube (1502 Model)

1шт.

1015021

COVER

TUBE ASSEMBLY, 1/2" tube (1002 Model)

1шт.

31

1015017

HOSE ASSY.

HOSE, 3/4" JIC-F-Swivel x 9/16" straight x 44"

1шт.

32

1015015

HOSE, 1-1/16" JIC-F-Swivel x 1/2" NPT x 34"

2шт.

33

1015016

HOSE ASSY.

HOSE, 1/2" NPT-M x 1-1/16" SAE x 34"

2шт.

34

1014894

PLATFORM PLATE

1шт.

35

1015019

CLAMP

tube

4шт.

36

1015018

CLAMP

tube

2шт.

37

1013023

BOLT

BOLT, hex, 5/8" x 2 1/2"

2шт.

38

1013004

WASHER

flat

2шт.

39

1011813

LOCK WASHER

LOCKWASHER, 5/8"

2шт.

40

1011578

NUT,5/8"-11, G5

hex, 5/8"

2шт.

41

1015000

DISC

HYDRAULIC VALVE ASSEMBLY (Inlcudes Ref. 42-49)

1шт.

42

1014995

ELBOW

90 degree swivel, 1/2" NPT

2шт.

43

1014993

CROSS

TEE, 1/2" NPT

2шт.

44

1014992

NIPPLE, 1/2" NPT

2шт.

45

1014991

VALVE, CHECK

CHECK VALVE, 1/2" NPT

1шт.

46

1014996

REDUCER

1/2" NPT - 3/8" NPT

2шт.

47

1014997

FITTING

CHECK VALVE, 3/8" NPT

1шт.

48

1014998

FLOW VALVE

1шт.

49

1015002

HOSE ASSY.

HOSE, 1/2" NPT-M x 1/2" NPT-M swivel

1шт.
