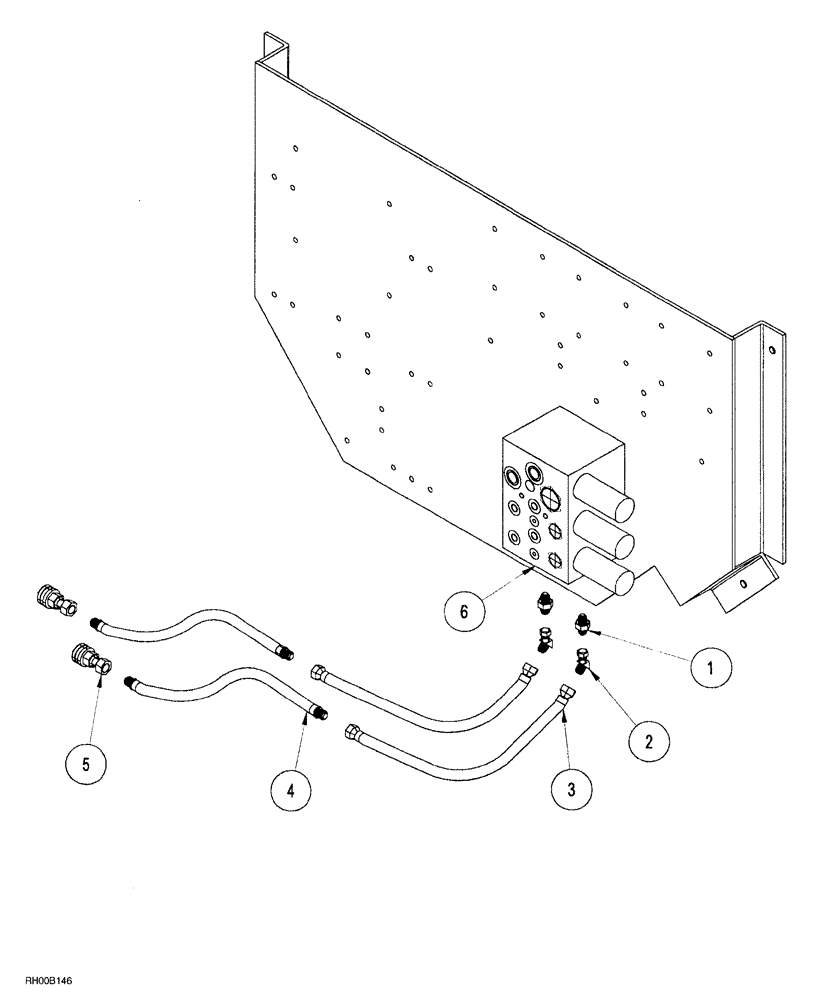

Запчасти Case IH AFS (02-12) - PRESSURE / RETURN HOSES, AFS CONCORD HYDRAULICS (35) - HYDRAULIC SYSTEMS

1

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER, Incl. 237-6016 O-Ring

2шт.

2

218-5175

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Female JIC

ELBOW, 45°, 1-1/16-12 inch flare x swivel

2шт.

3

312420A1

HYDRAULIC HOSE,19.05 mm ID x 450.00 mm

15 inch

2шт.

4

1018859

HOSE ASSY.

No. 12 JIC male flare, No. 12 male pipe, 130 inch

2шт.

5

1015970

COUPLING

quick assist

2шт.

6

REF

INSTRUCTION

VALVE multi vary rate, see Figure 02-08

1шт.
