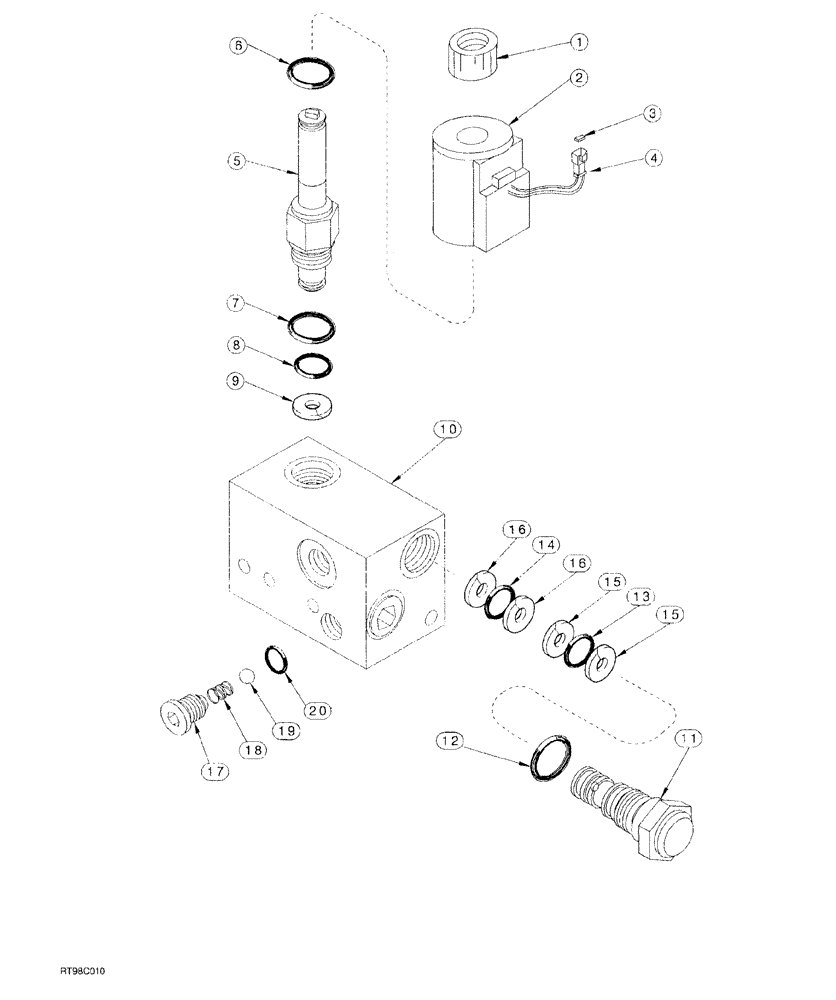

Запчасти Case IH AFS (02-06) - VALVE, PROPORTIONAL FLOW CONTROL (35) - HYDRAULIC SYSTEMS

226734A4

VALVE

proportional flow control

1шт.

1

188106A1

NUT

special

1шт.

2

188105A1

SOLENOID

without diode, 12 volt, DC

1шт.

3

225318C1

ELEC CONNECTOR,2 Pin

CONNECTOR

1шт.

4

225315C1

ELEC CONNECTOR,Male, 2 Pin

wedge

1шт.

5

254969A2

HYDRAULIC VALVE

flow control cartridge, size 10

1шт.

304391A1

SEAL KIT

seal

1шт.

6

NSS

NOT SOLD SEPARAT

O-RING

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING

1шт.

8

NSS

NOT SOLD SEPARAT

O-RING

1шт.

9

NSS

NOT SOLD SEPARAT

WASHER backup

1шт.

10

278201A1

VALVE BODY

MANIFOLD

1шт.

11

278200A1

VALVE

differential pressure sensing

1шт.

304391A1

SEAL KIT

seal

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

O-RING

1шт.

14

NSS

NOT SOLD SEPARAT

O-RING

1шт.

15

NSS

NOT SOLD SEPARAT

WASHER backup

2шт.

16

NSS

NOT SOLD SEPARAT

WASHER backup

2шт.

1341811C1

SPRING-CHECK

REPAIR KIT KIT sense check

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG

1шт.

18

NSS

NOT SOLD SEPARAT

SPRING

1шт.

19

NSS

NOT SOLD SEPARAT

BALL steel

1шт.

20

NSS

NOT SOLD SEPARAT

GUIDE spring

1шт.
