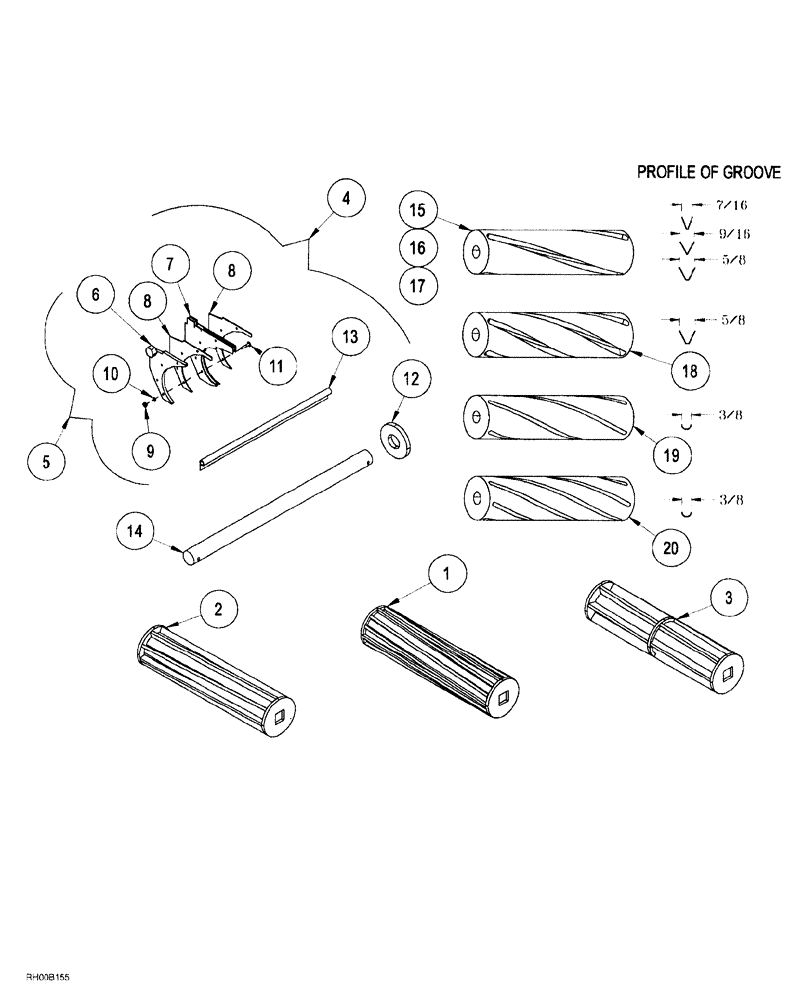

Запчасти Case IH AFS (02-32) - METERING ROLL ASSEMBLIES (61) - METERING SYSTEM

1

1012608

ROLL

metering, standard, 12-1/4 x 1/4 inch bars

1шт.

2

1013856

ROLL

metering, high capacity, 8-1/4 x 1/2 inch bars

1шт.

3

1021264

ROLL

metering, super high capacity, 6-1/4 x 3/4 inch bars

1шт.

4

1030624

FORK

KIT seal, Includes: Ref. 5, 12 and 13

1шт.

5

1027945

PLATE

SEAL ASSEMBLY fine seed, Includes: Ref. 6-11

1шт.

6

1032086

PLATE

flow control

1шт.

7

1027884

SEAL

outer, rubber

2шт.

8

1027887

RUBBER SEAL

inner, rubber

1шт.

9

1027932

LARGE PLATE

PLATE, LARGE flow control

1шт.

10

1032094

LOCK NUT

No. 6 NC

4шт.

11

1032479

SCREW

No. 6 - 32 x 1

4шт.

12

1015623

DISC

thrust

1шт.

13

1027931

SEAL

extruded "P"

1шт.

14

312910A1

SHAFT

AFS specialty roll

1шт.

15

1029252

METER

ASSEMBLY shallow, 3 groove

1шт.

16

1029250

METER

ASSEMBLY medium, 3 groove

1шт.

17

1029251

METER

ASSEMBLY deep, 3 groove

1шт.

18

1030532

METER

ASSEMBLY deep, 4 groove

1шт.

19

350058A1

METER

ASSEMBLY, No. 5 canola, 4 groove

1шт.

20

1030534

METER

ASSEMBLY canola, 6 groove

1шт.
