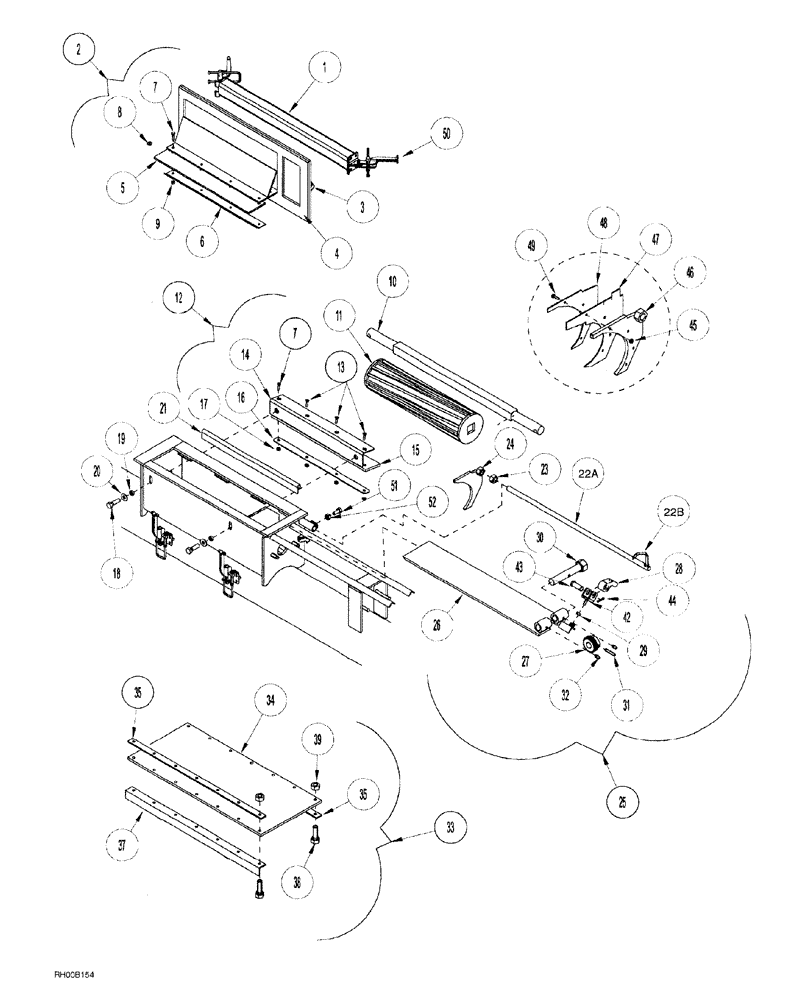

Запчасти Case IH AFS (02-30) - PRODUCT METER, MIDDLE (61) - METERING SYSTEM

1

1016213

TOGGLE

WLDMT

1шт.

2

1016220

COVER ASSY

WIPER front, Includes: Ref. 3 - 9

1шт.

3

NSS

NOT SOLD SEPARAT

COVER front

1шт.

4

1018874

GASKET

door, side

1шт.

5

1030985

SEAL

RUBBER SEAL WIPER

1шт.

6

290290A1

SUPPORT

wiper

1шт.

7

1032058

SCREW

.19 x .50 NC

5шт.

8

1032060

WASHER,0.2" ID x 0.44" OD x 0.04" Thk

flat, .19

1шт.

9

1032059

LOCK NUT

.19 NC

1шт.

10

312723A1

SHAFT

roll drive

3шт.

11

REF

INSTRUCTION

ROLL metering, see Figure 02-33

1шт.

12

1017768

DEFLECTOR

ASSEMBLY seed, front, Includes: Ref. 13 - 17

1шт.

13

1032095

SCREW

.19 x .625 NC

3шт.

14

1012955

DEFLECTOR

PLATE

1шт.

15

1013128

DEFLECTOR

rubber

1шт.

16

1013127

STRIP

hold

1шт.

17

1032059

LOCK NUT

.19 NC

4шт.

18

1033271

BOLT

.38 x 1 NC

4шт.

19

1033267

WASHER, LOCK

.38

6шт.

20

1033266

WASHER

flat, .38

6шт.

21

1027931

SEAL

extruded "P"

3шт.

22a

1032033

ROD

flow control, Includes: Ref. 22B and 23

2шт.

22b

1030865

POINT

BAR

2шт.

23

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

24

1032089

CONTROL

PLATE ASSEMBLY flow, Includes: Ref. 45 - 49

2шт.

25

1032032

SET OF PARTS

DOOR ASSEMBLY metering, front Includes: Ref. 26 - 32

2шт.

26

1030046

DOOR

front

2шт.

27

1013346

PINION

rework

2шт.

28

1030001

LATCH ASSY.

LOCK pointer

2шт.

29

425-144

JAM NUT,Jam, 1/4"-20, G5

2шт.

30

1013092

BOLT

special

2шт.

31

1021512

PIN

roll, .25 x 1.38

2шт.

32

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

5шт.

33

1013283

DOOR ASSY.

cleanout, Includes: Ref. 34 - 39, 42, 43 and 44

2шт.

34

1013176

COVER

rubber

2шт.

35

1013177

SUPPORT

narrow

4шт.

37

1013284

ANGLE

latch

2шт.

38

1033270

BOLT

hex, .25 x .75 NC

32шт.

39

1033269

LOCK NUT

Nylock, .25

32шт.

42

1030866

ANCHOR

MOUNT flipper

2шт.

43

1030867

CLEVIS PIN

.50 x 1.25

2шт.

44

432-816

COTTER PIN,1/8" x 1"

2шт.

45

1032094

LOCK NUT

No. 6 NC

8шт.

46

1032087

PLATE

flow control

2шт.

47

1027932

LARGE PLATE

PLATE, LARGE flow control

2шт.

48

1027884

SEAL

outer, rubber

2шт.

49

1032093

SCREW

No. 6 x .50 NC

8шт.

50

1029248

U-BOLT

toggle

4шт.

51

1015173

BOLT

.31 x .75

2шт.

52

1023719

NUT

jam, .31

2шт.
