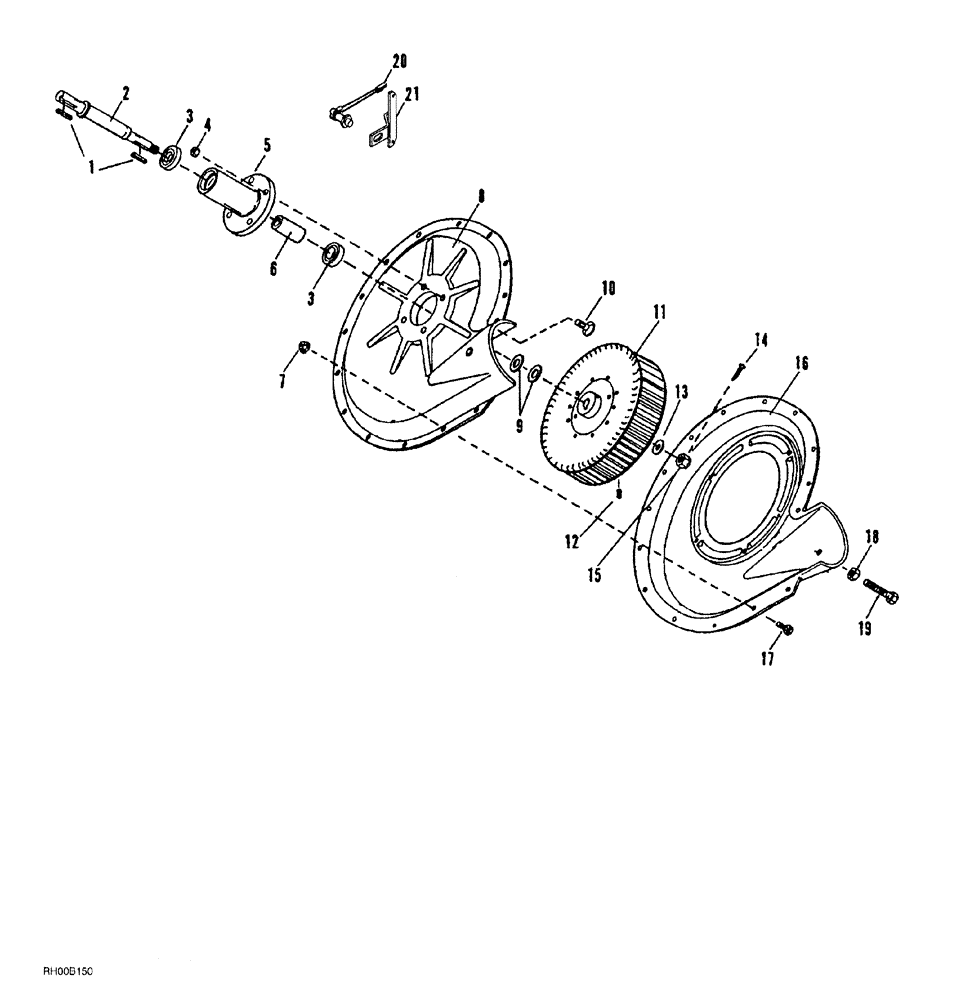

Запчасти Case IH AFS (02-22) - BLOWER PARTS, DIESEL (61) - METERING SYSTEM

1024764

BLOWER

ASSEMBLY complete

1шт.

1

1015660

KEY

2шт.

2

1016287

SHAFT

blower

1шт.

3

453879R91

BEARING ASSY,30mm ID x 62mm OD x 16mm W

roller

2шт.

4

1015662

NUT

4шт.

5

1016288

HUB

bearing

1шт.

6

1016536

CLAMP

TUBE

1шт.

7

1015656

NUT

flange lock, 1/4 inch

16шт.

8

1015655

HOUSING

drive side

1шт.

9

1016534

WASHER

flat

2шт.

10

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

BOLT hex socket, flat head, 3/8 NC x 1-1/4 inch

4шт.

11

1016285

ROTOR ASSY.

1шт.

12

1016535

SET SCREW

1шт.

13

495-11081

WASHER,3/4", SAE

1шт.

14

432-1020

COTTER PIN,5/32" x 1 1/4"

1шт.

15

425-1312

SLOTTED NUT,3/4"-16, G5

hex, 3/4 inch NF

1шт.

16

1015650

HOUSING

inlet

1шт.

17

409-7416

BOLT,Hex Flg, 1/4" - 20 x 1", Spcl

16шт.

18

425-108

NUT,1/2" - 13, Gr 5

2шт.

19

1023712

BOLT AND NUT

adjustment

2шт.

20

324049A1

SENSOR

speed hall

1шт.

21

290952A1

BRACKET

fan speed sensor

1шт.
