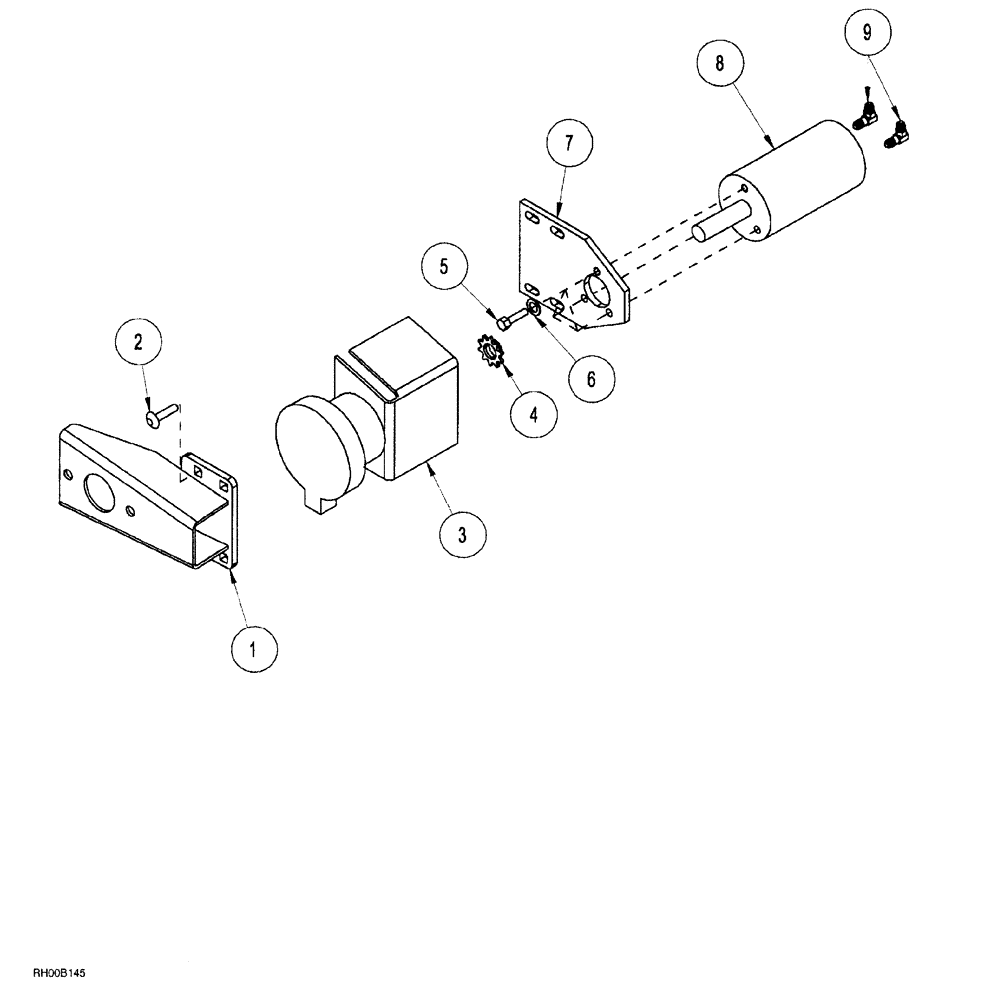

Запчасти Case IH AFS (02-10) - METER DRIVE ASSEMBLY, AFS CONCORD (61) - METERING SYSTEM

1

312578A1

BRACKET

motor mount

1шт.

2

411-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT carriage, 5/16 NC x 3/4 inch, grade 2

4шт.

3

333054A2

SENSOR

application rate

1шт.

4

232893A1

SPROCKET

drive, 10 tooth

1шт.

5

414-412

BOLT,Hex, 1/4" - 28 x 3/4", Gr 5

BOLT hex, 1/4 NF x 3/4 inch

3шт.

6

492-11025

LOCK WASHER,1/4"

3шт.

7

312577A1

PLATE

adjustment

1шт.

8

293288A1

MOTOR

pump drive, 1.93 cubic inch

1шт.

293288A1R

REMAN-HYD MOTOR

AFS Concord Air Systems

1шт.

293288A1C

CORE-MOTOR HYDRAULIC

Return Number

1шт.

304296A1

SEAL KIT

motor seal, Eaton, not shown

1шт.

9

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90° , 9/16-18 inch flare x adj. O-ring boss

2шт.
