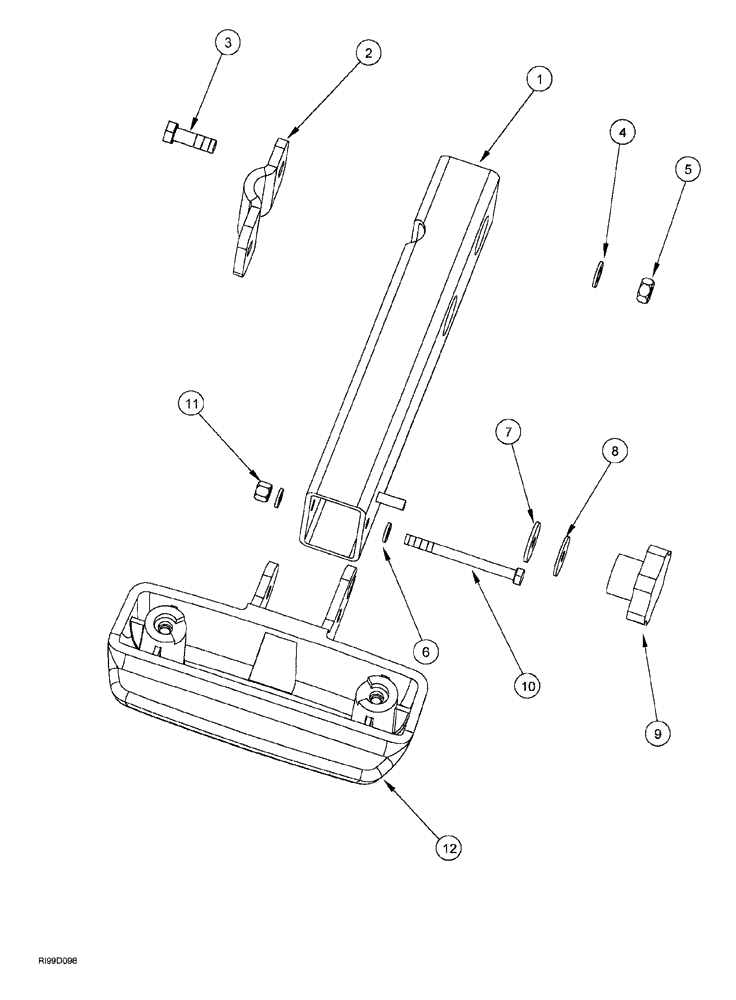

Запчасти Case IH AFS (03-28) - CDU / ECDU MOUNTING (55) - ELECTRICAL SYSTEMS

1

341145A1

SUPPORT

BRACKET mounting

1шт.

2

103226A1

CLAMP

1шт.

3

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

4

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

5

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

2шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

Bracket mounting

2шт.

7

319725A1

RUBBER WASHER

nonmetallic

1шт.

8

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

9

319729A1

KNOB

1шт.

10

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

BOLT hex, full threads, 6 - 1.0 x 70 mm

1шт.

11

832-10406

NUT,M6 x 1, Cl 8

1шт.

12

349024A1

BRACKET

mounting, display

1шт.
