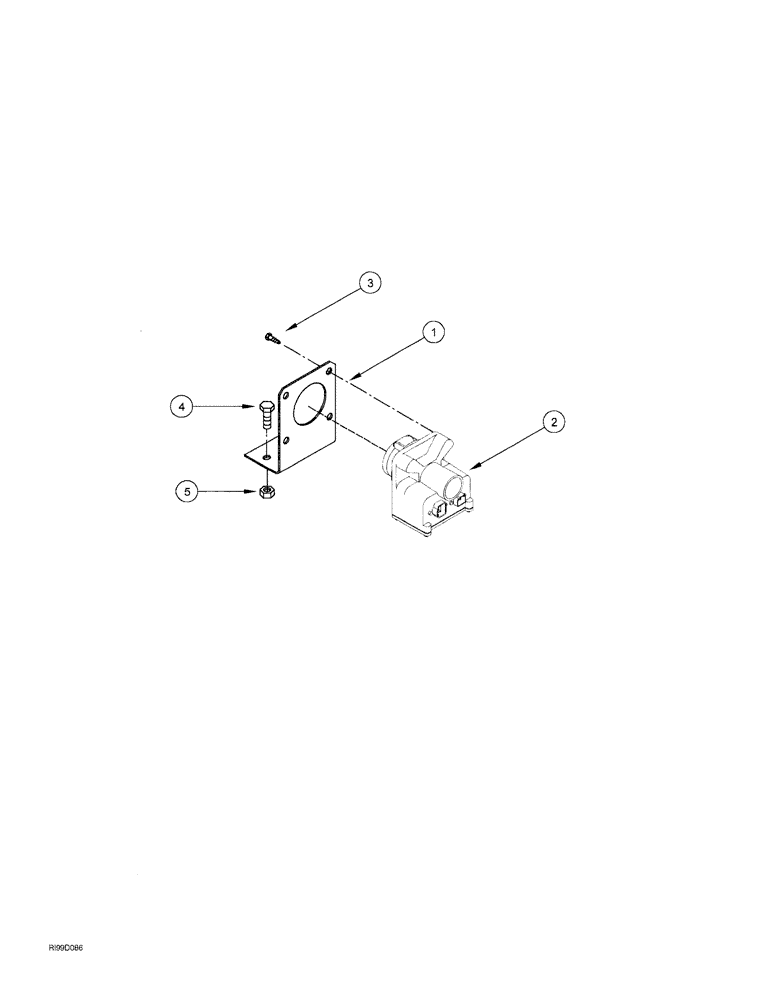

Запчасти Case IH AFS (03-16) - IMPLEMENT CONNECTOR MOUNTING (55) - ELECTRICAL SYSTEMS

1

311249A1

SUPPORT

BRACKET implement receptacle

1шт.

2

323597A1

MULTIPOLE CONNECTOR

implement, electrical

1шт.

3

779-34616

SELF-TAP SCREW,Hex Hd, M6.3 x 16

hex-head, 6.3 x 16 mm

4шт.

4

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

2шт.

5

829-1410

NUT,M10 x 1.5, Cl 10.9

2шт.

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, 15 inch, included in the AFS display installation kit, but not shown

1шт.

417-524

BOLT,Sq Hd, 5/16" - 18 x 1-1/2", Gr 2

BOLT battery terminal, 5/16-18 x 1.5 inch, grade 2, (if necessary), included in the AFS display installation kit, but not shown

2шт.

425-105

NUT,5/16"-18, G5

Battery terminal (if necessary), Included in the AFS display installation kit, but not shown

2шт.

896-11008

WASHER,9mm ID x 17mm OD x 2mm Thk

flat, hardened, 9 x 17 x 2 mm, included in the AFS display installation kit, but not shown

4шт.

245854A1

CLIP

adhesive, included in the AFS display installation kit, but not shown

2шт.
