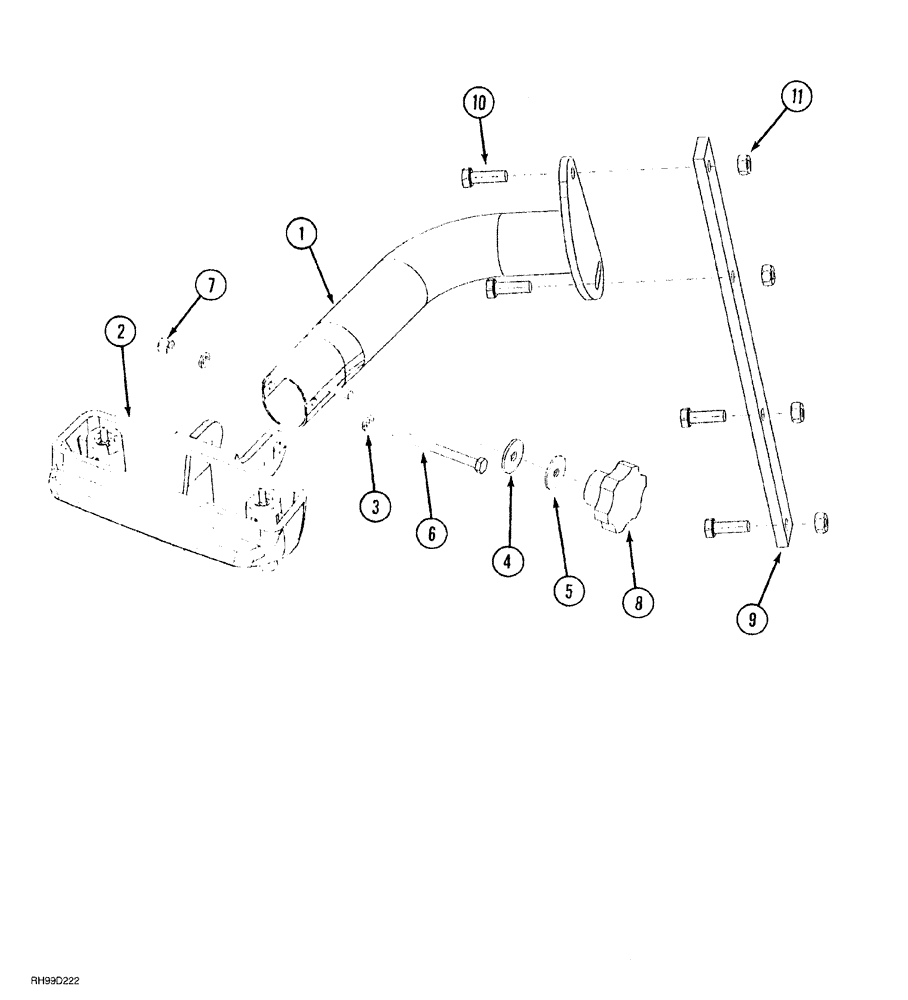

Запчасти Case IH AFS (03-14) - CDU / ECDU MOUNTING (55) - ELECTRICAL SYSTEMS

1

316888A1

BRACKET

mounting

1шт.

2

349024A1

BRACKET

mounting, display

1шт.

3

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

4

319725A1

RUBBER WASHER

nonmetallic

1шт.

5

895-15006

WASHER,6.6mm ID x 25mm OD x 1.6mm Thk

1шт.

6

814-6070

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

BOLT hex, full threads, 6 - 1.0 x 70 mm

1шт.

7

832-10406

NUT,M6 x 1, Cl 8

1шт.

8

319729A1

KNOB

1шт.

9

320321A1

STRAP

mounting

1шт.

10

615-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

829-1308

NUT,M8, Cl 10

4шт.
