Запчасти Case IH AFS (03-12) - HARNESS, AFS, ADAPTER (55) - ELECTRICAL SYSTEMS

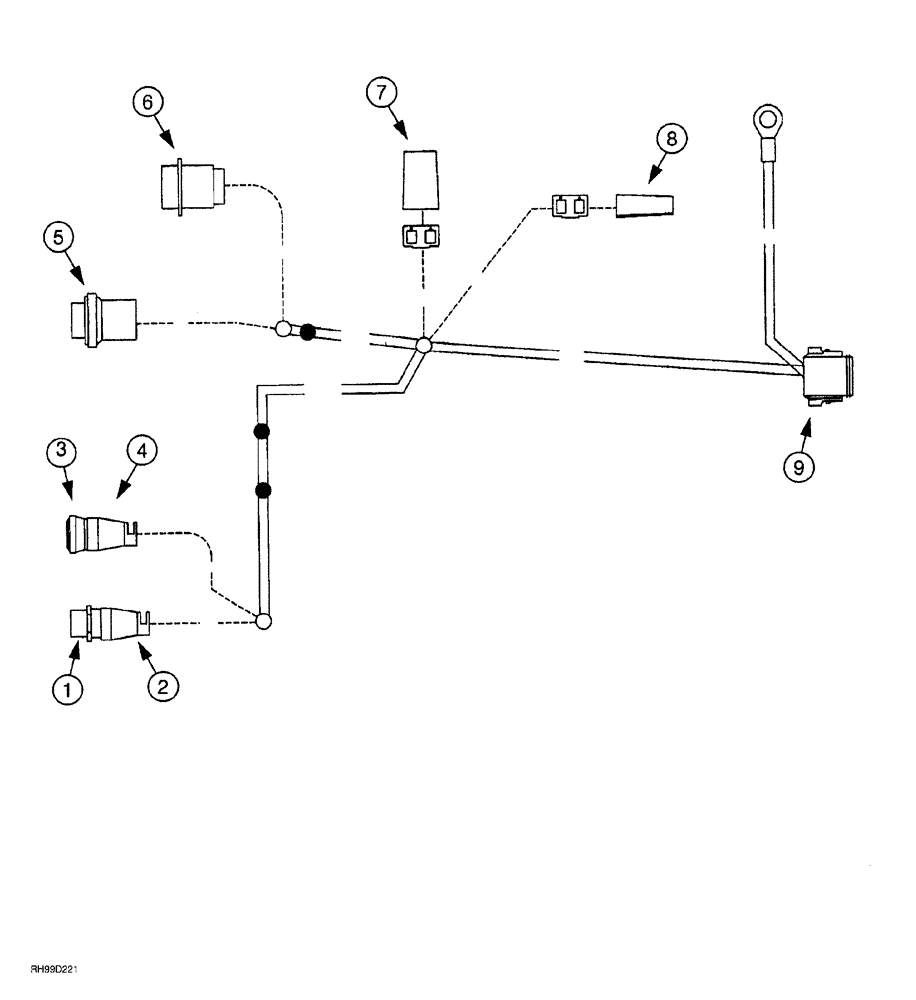

Схема запчастей Case IH AFS - (03-12) - HARNESS, AFS, ADAPTER (55) - ELECTRICAL SYSTEMS
2
9
6
8
3
4
5
7
1

Артикул

Название

Примечание

Количество

247365A1

HARNESS

non AFS tractor adapter

1шт.

1

247724A1

ELEC CONNECTOR,Female, 4 Pin

electrical

1шт.

2

247725A1

ELEC CONNECTOR

electrical

1шт.

3

1964522C1

CONNECTOR, ELEC

CONNECTOR electrical

1шт.

4

247725A1

ELEC CONNECTOR

electrical

1шт.

5

225165C1

ELEC CONNECTOR

electrical, type GQ

1шт.

6

225164C1

ELEC CONNECTOR

electrical

1шт.

7

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse, unswitched B+

1шт.

8

247676A1

MULTIPOLE CONNECTOR,Female, 2 Pin

switched fuse, switched B+

1шт.

9

225319C1

MULTIPOLE CONNECTOR,Female, 8 Pin

8 pin

1шт.

Выбрано товаров: 10
